Product Preview
Part Details & Configuration

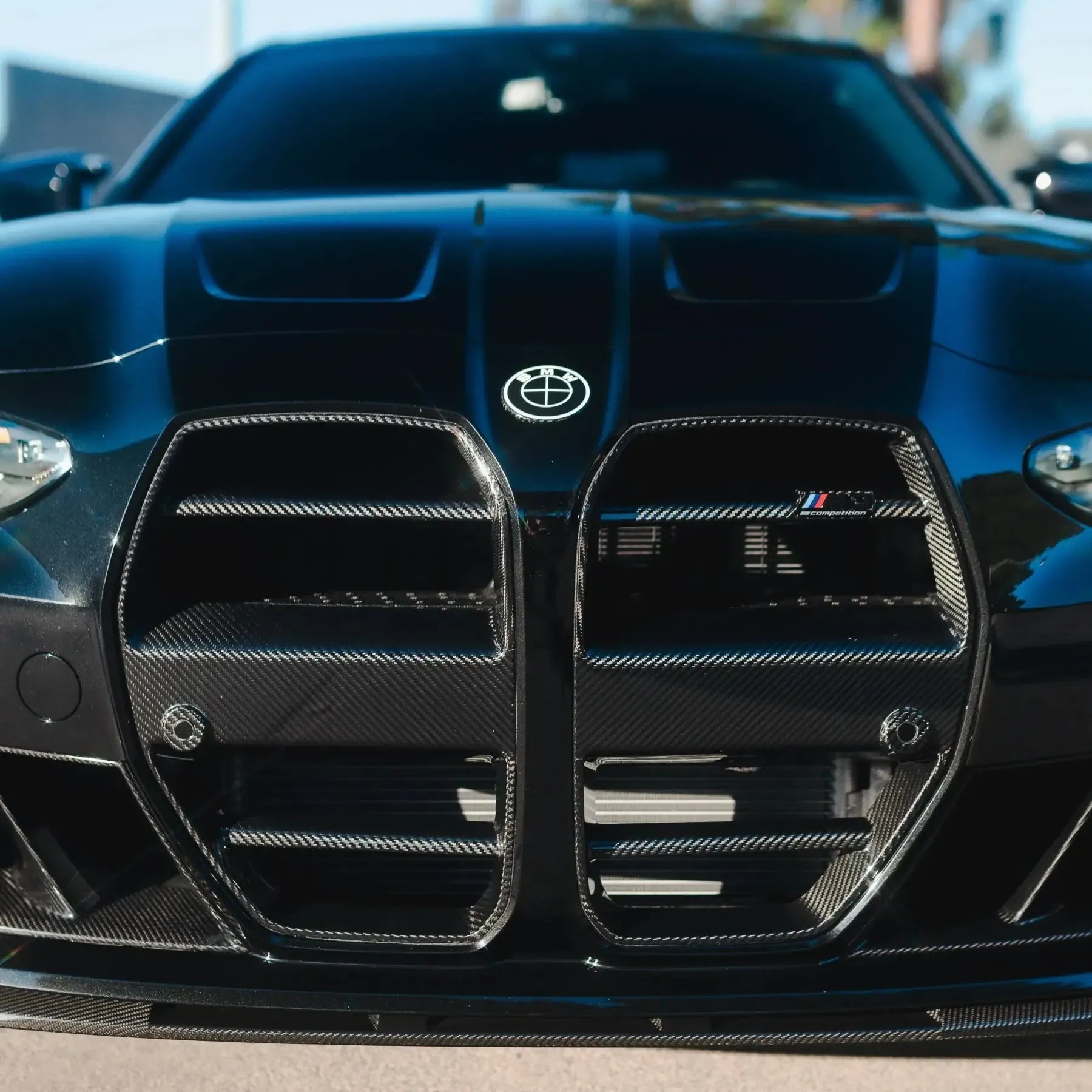

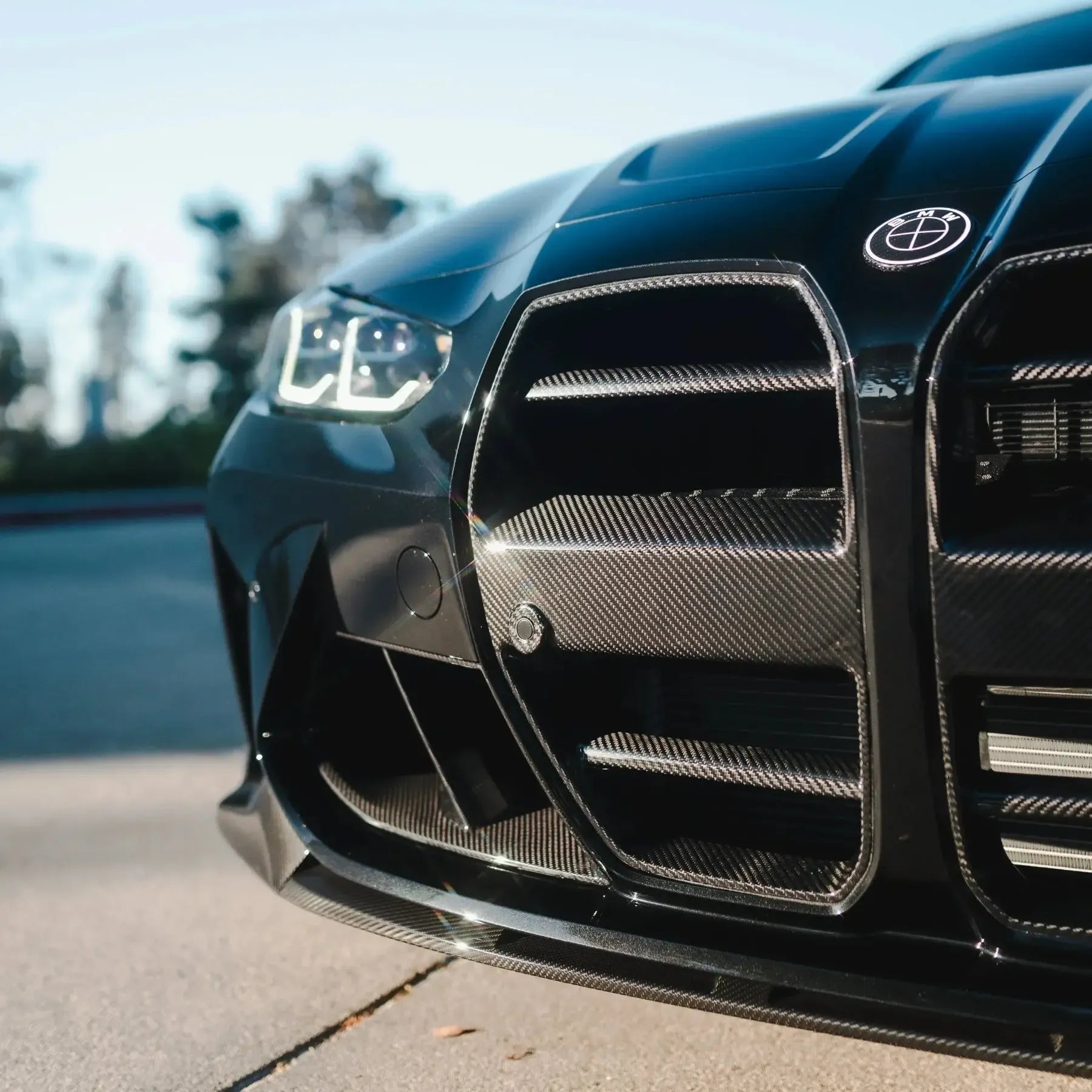

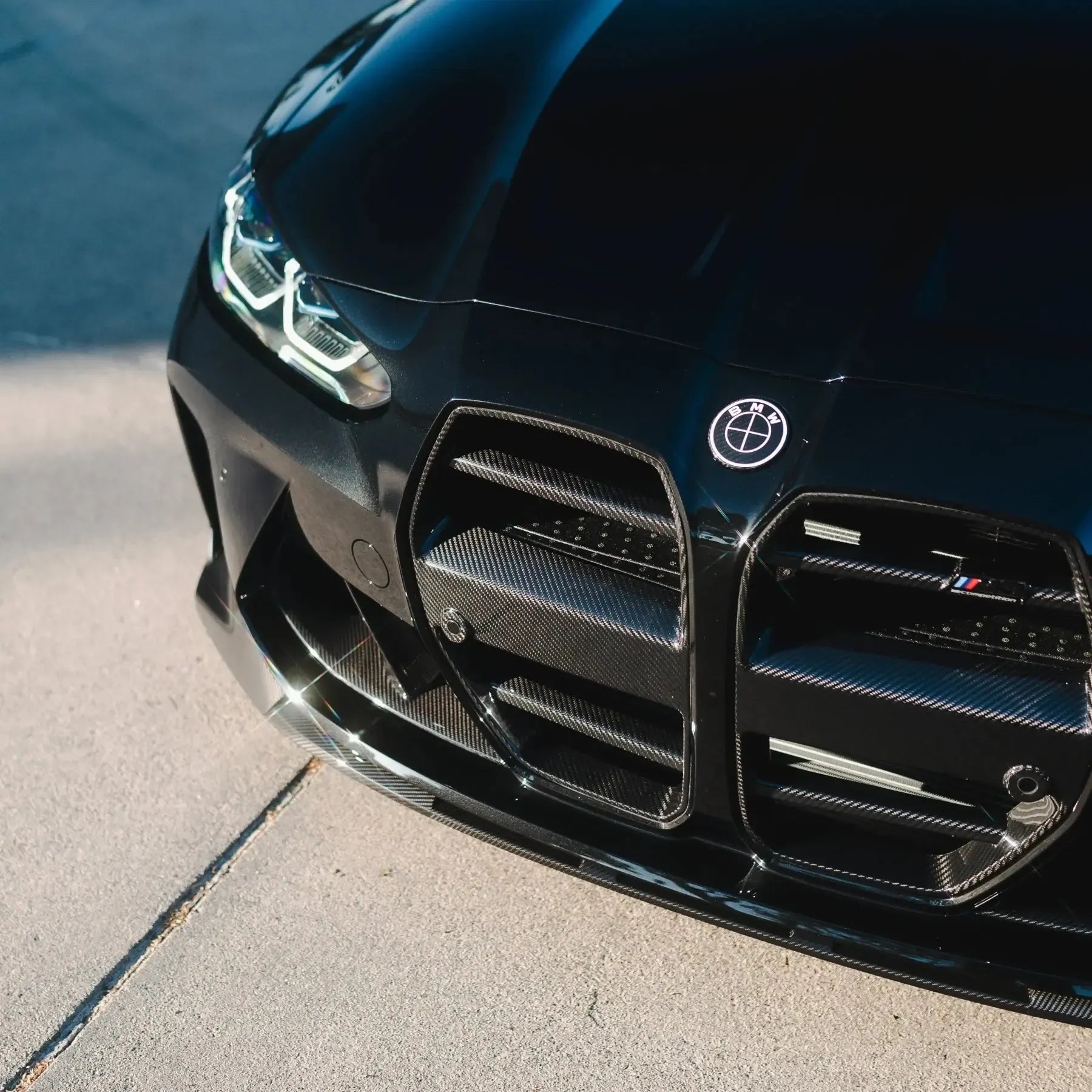

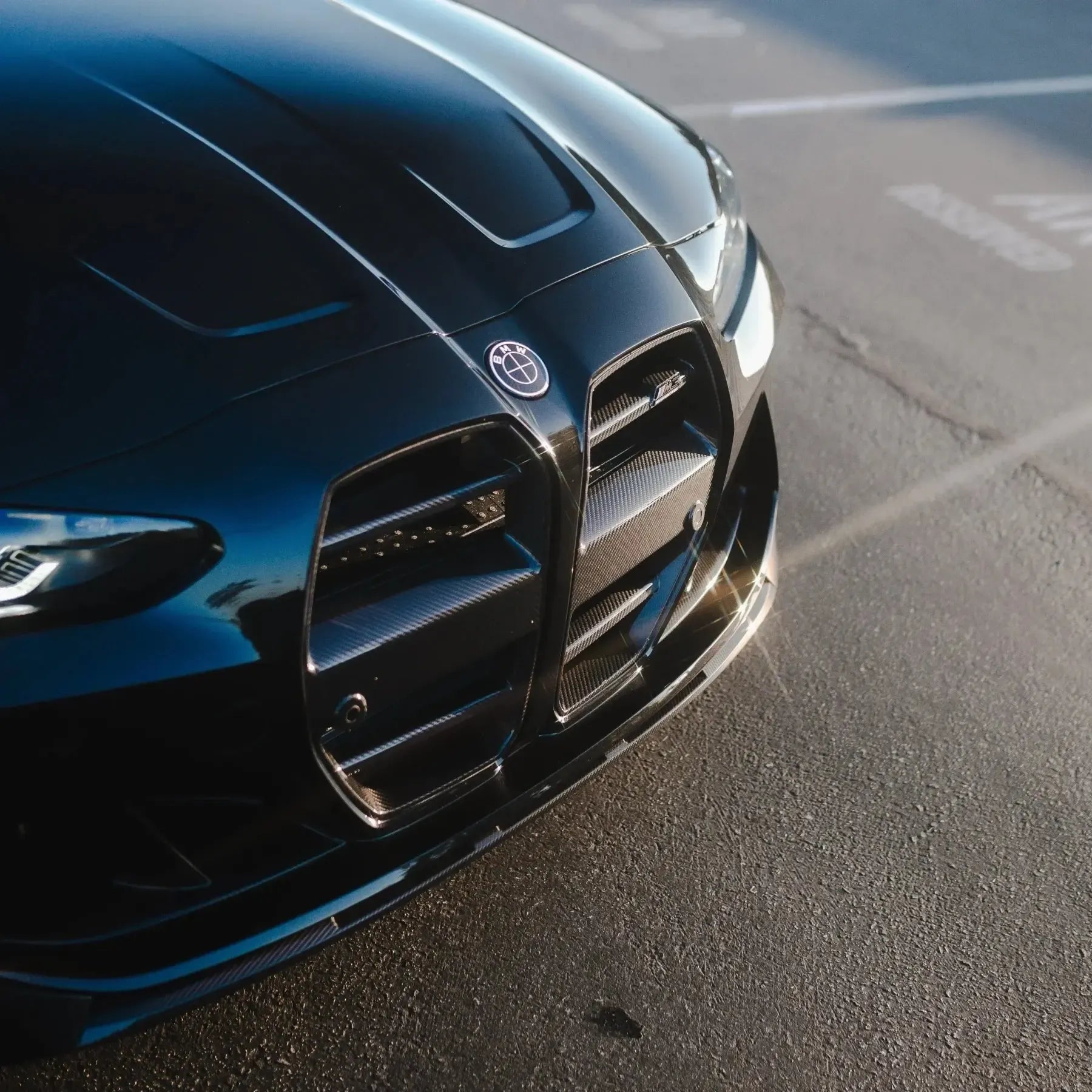

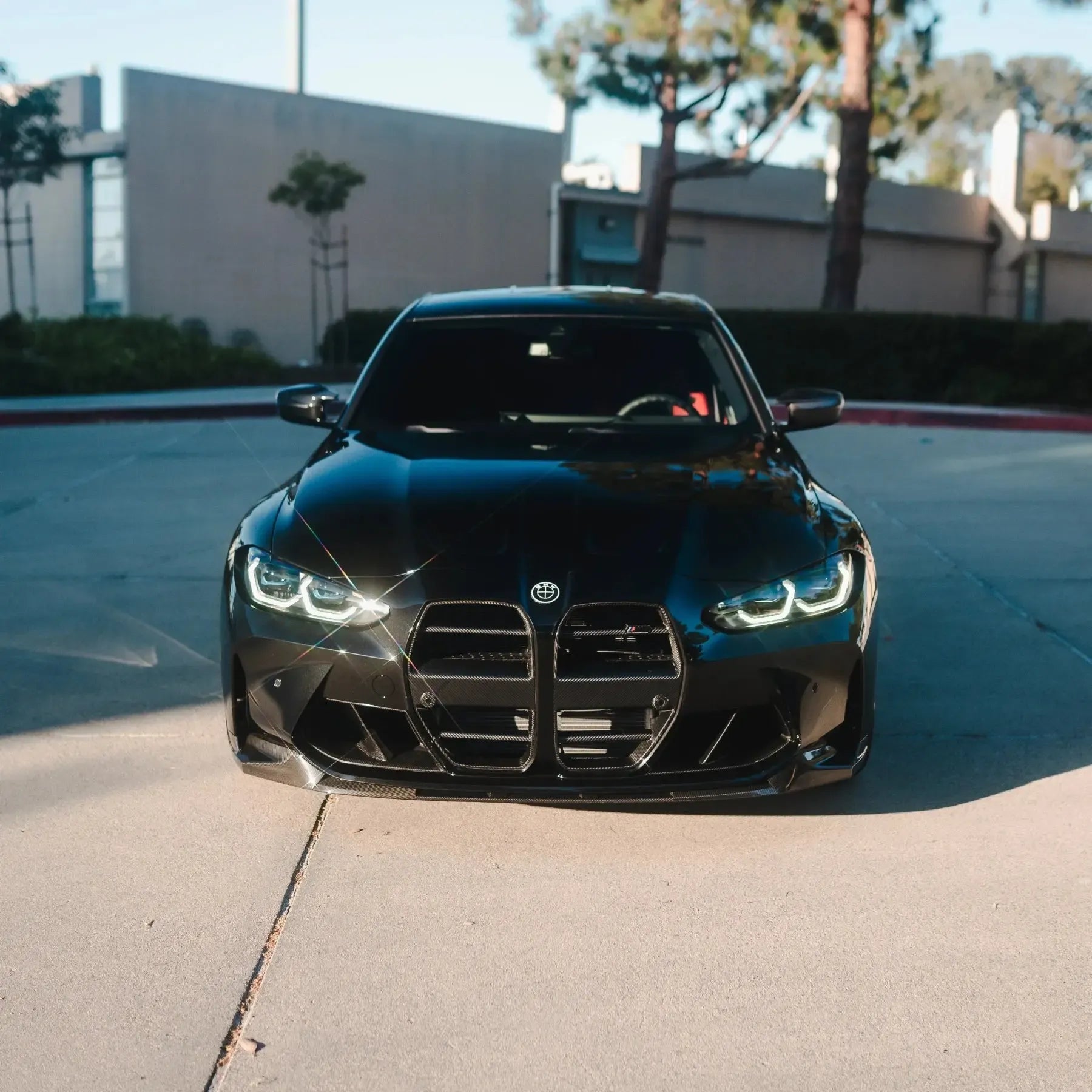

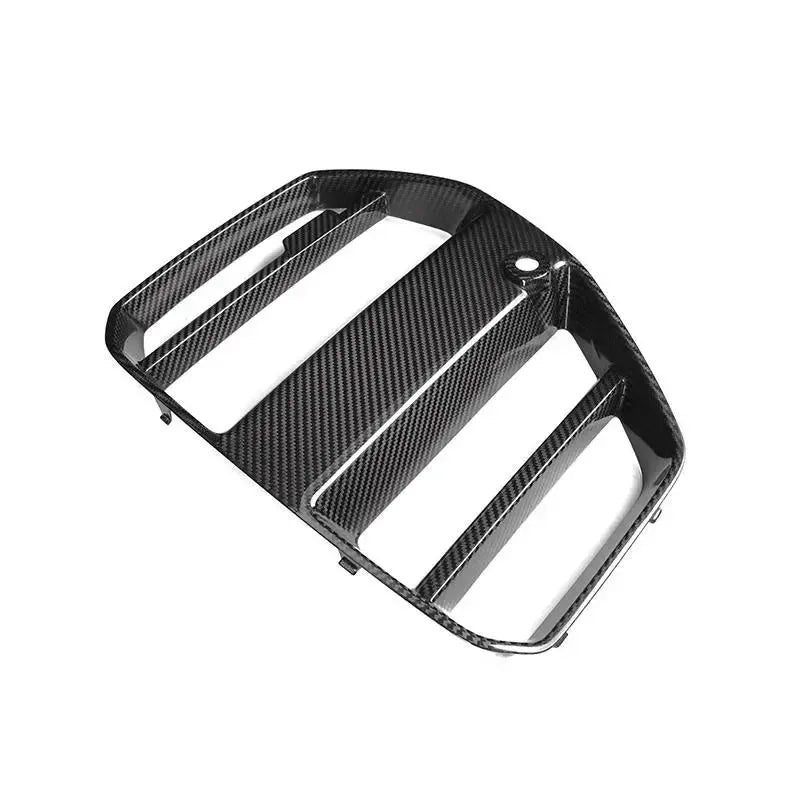

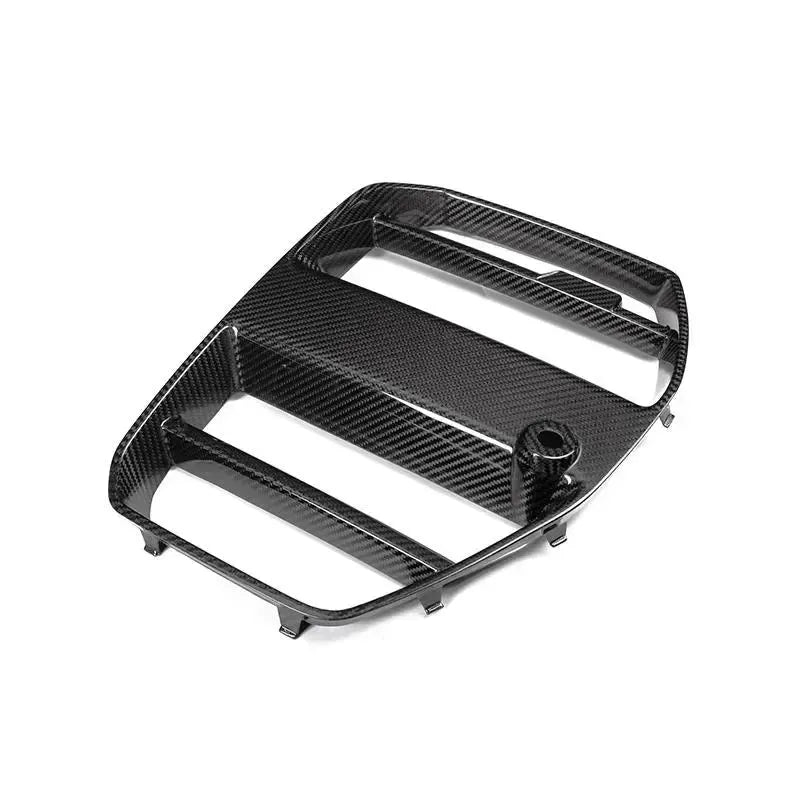

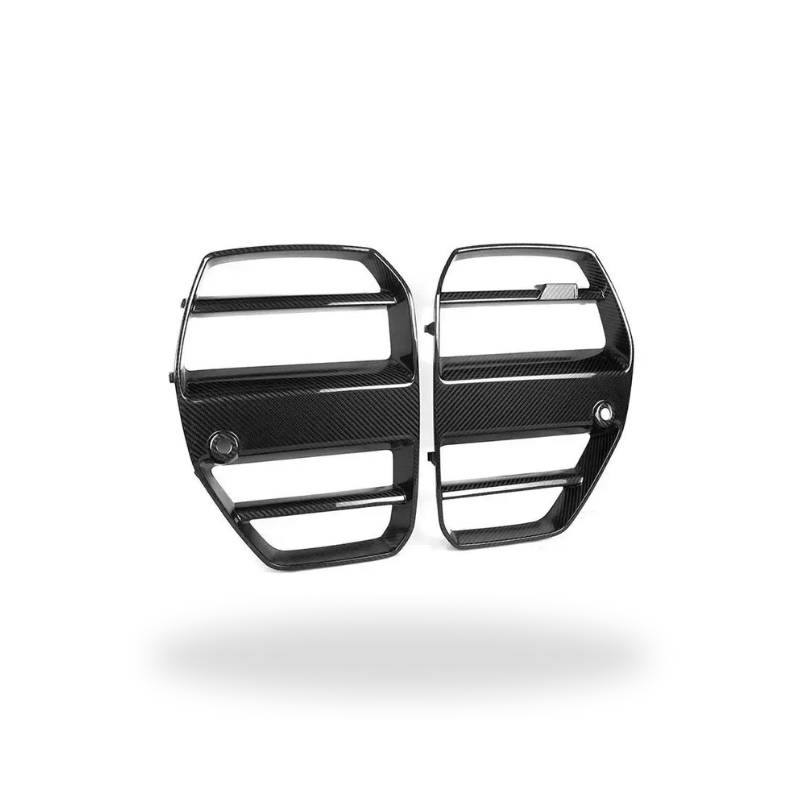

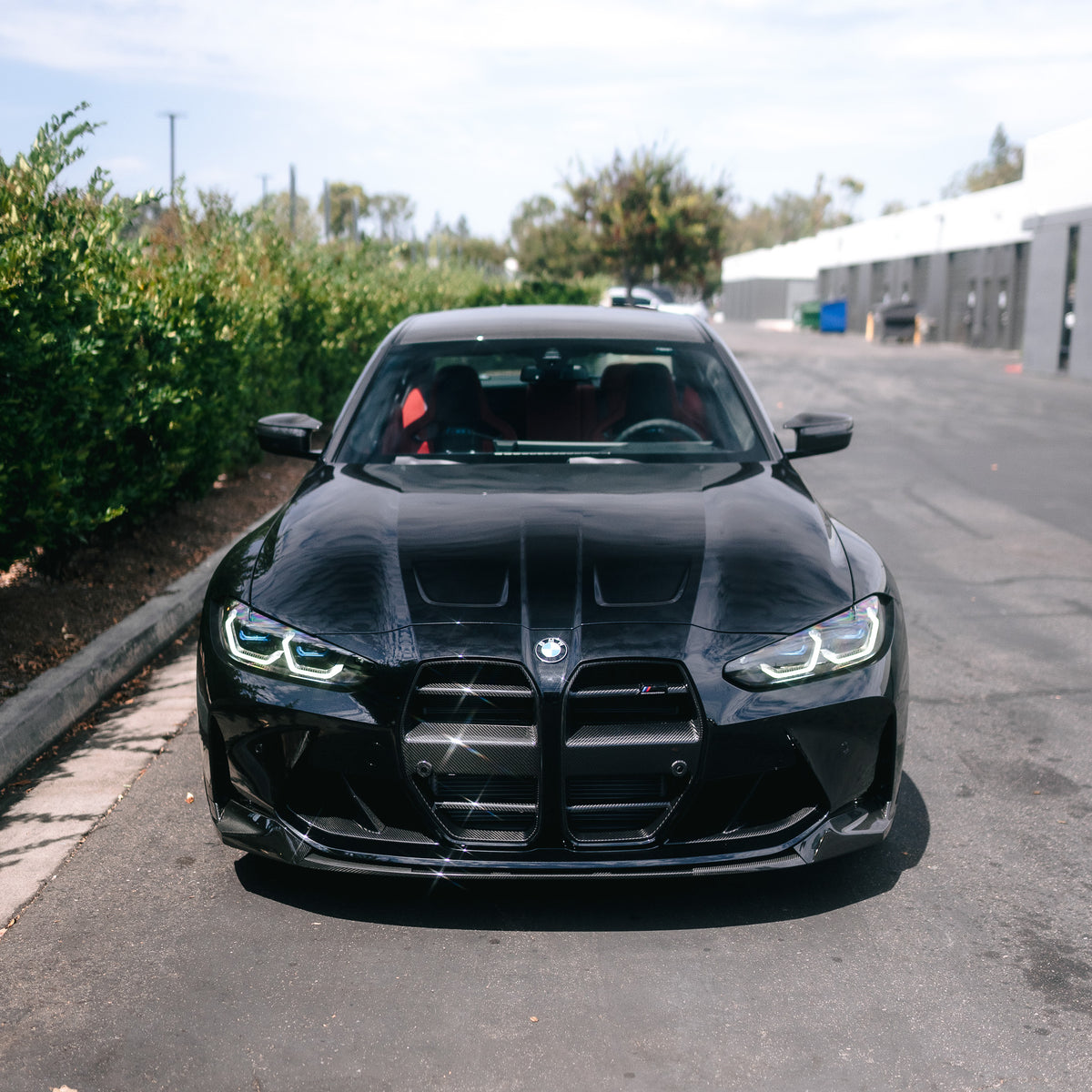

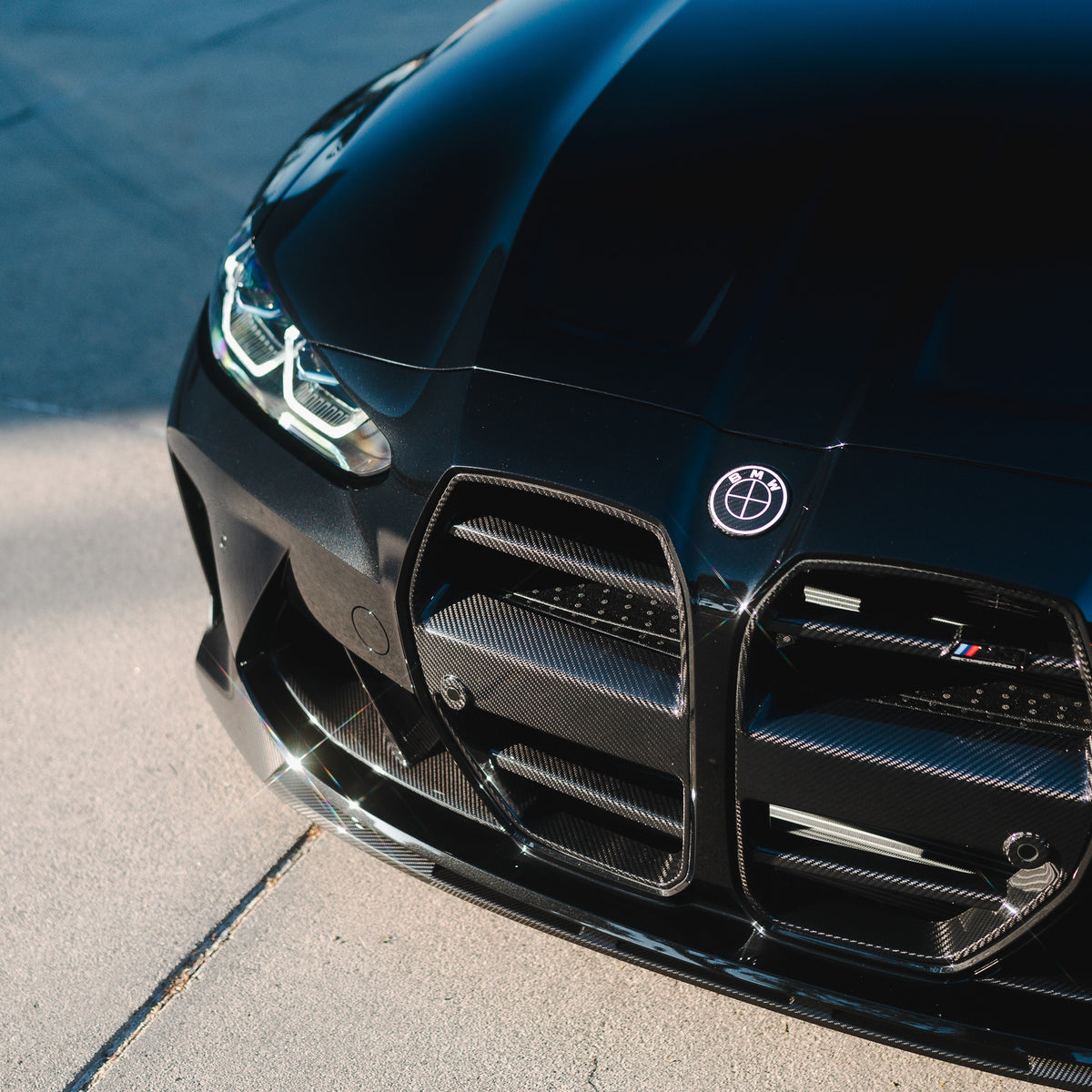

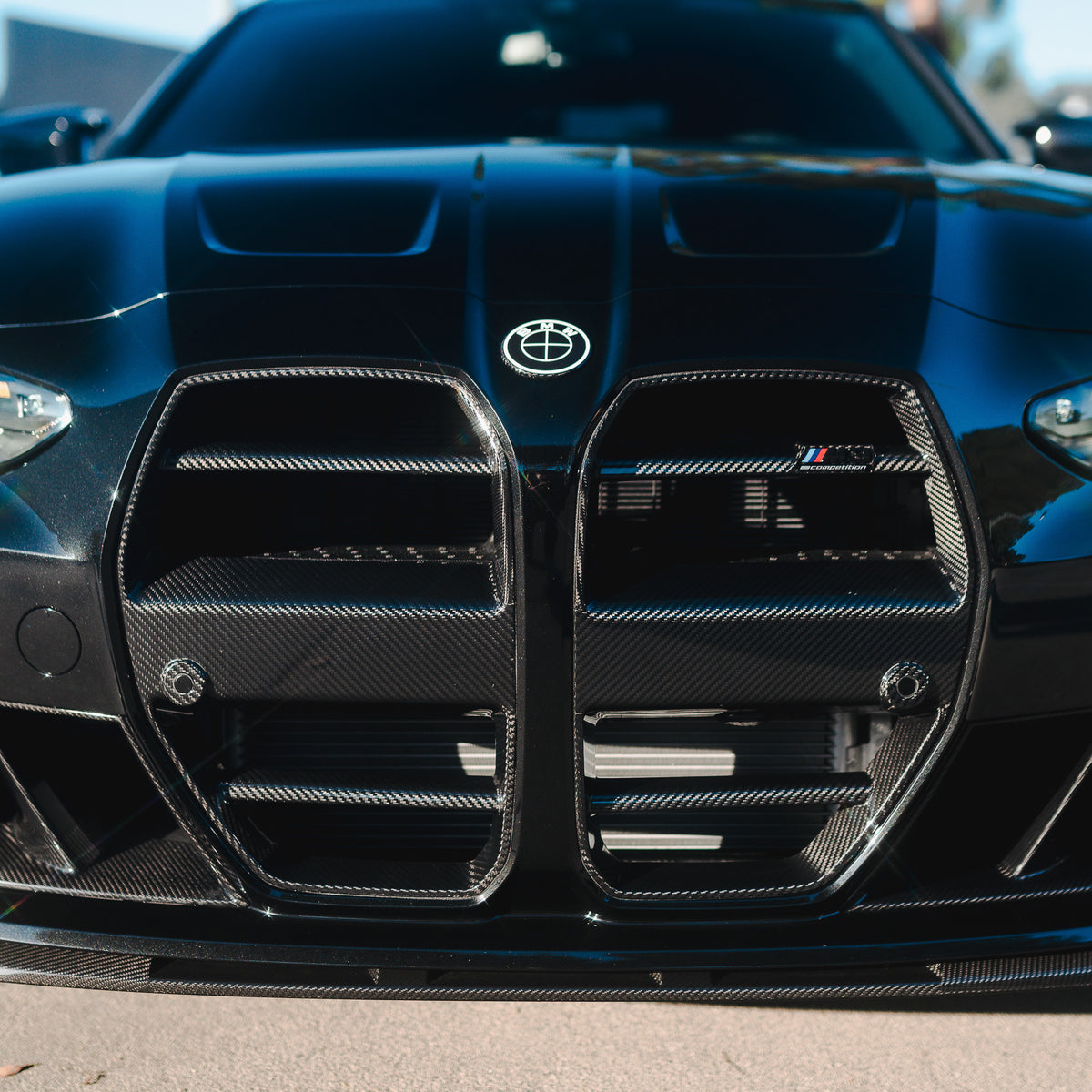

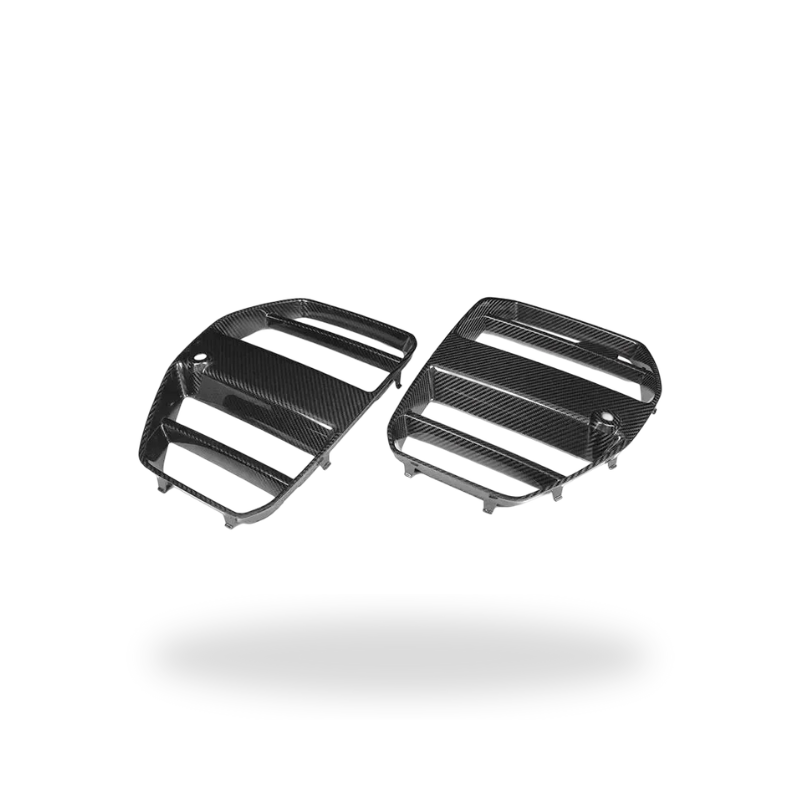

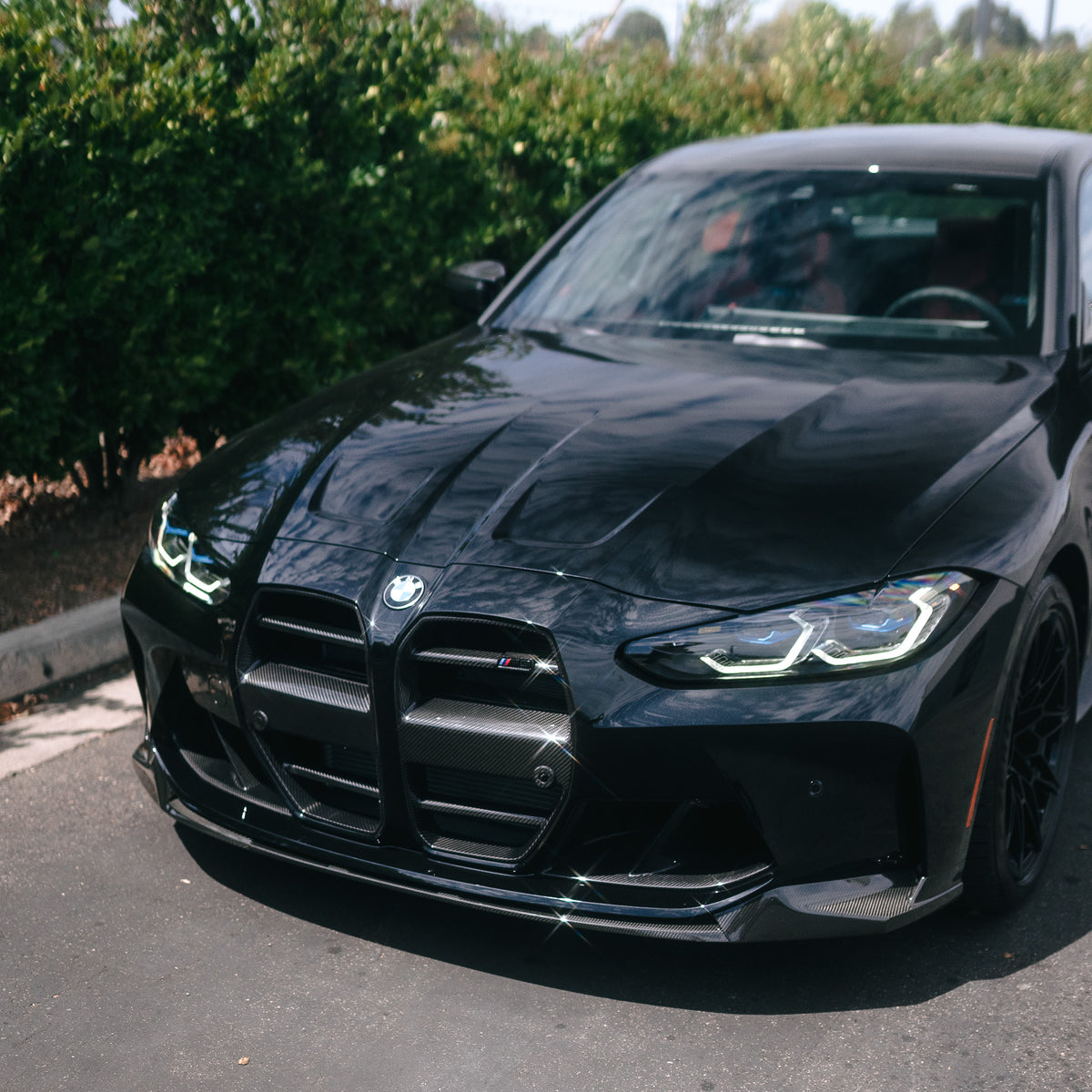

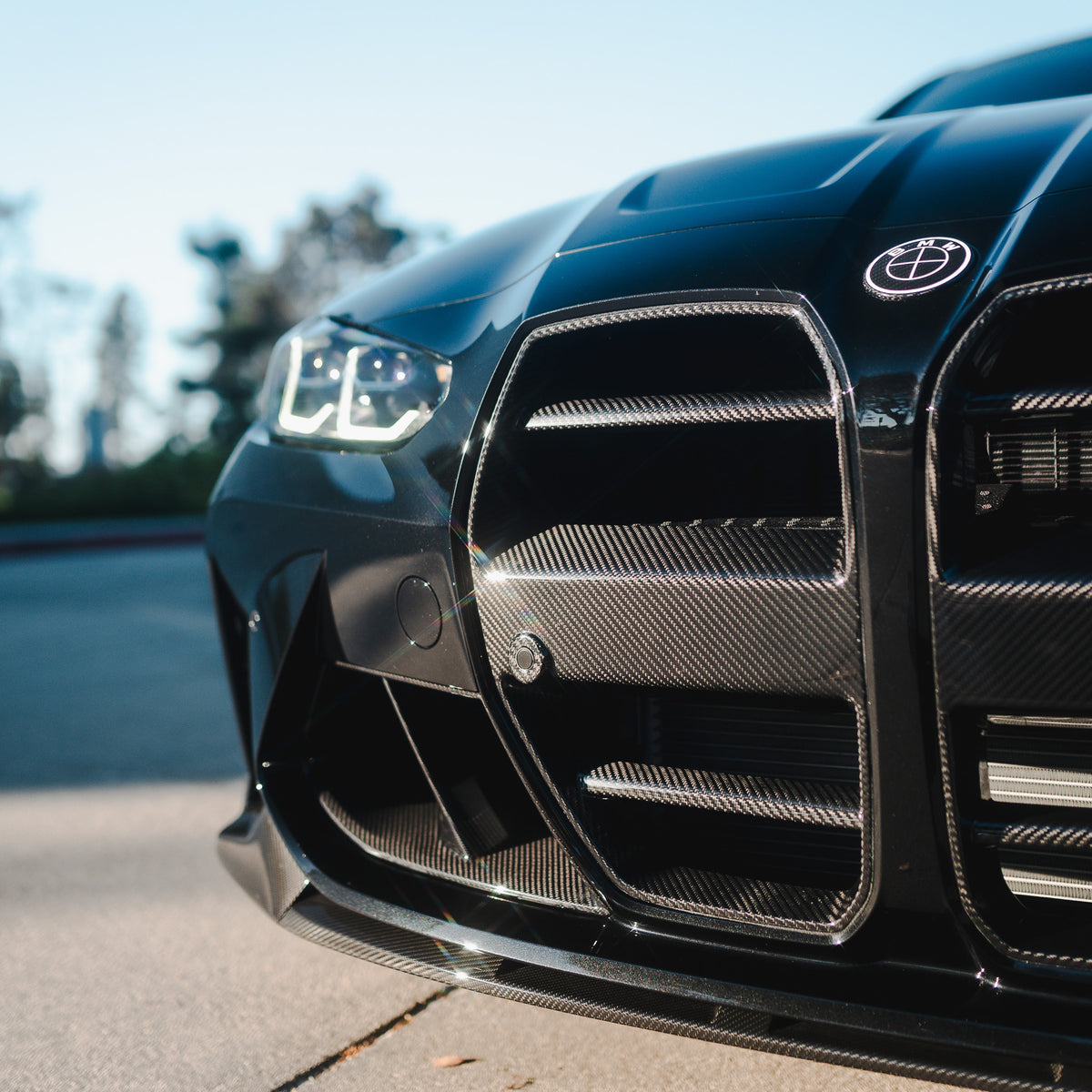

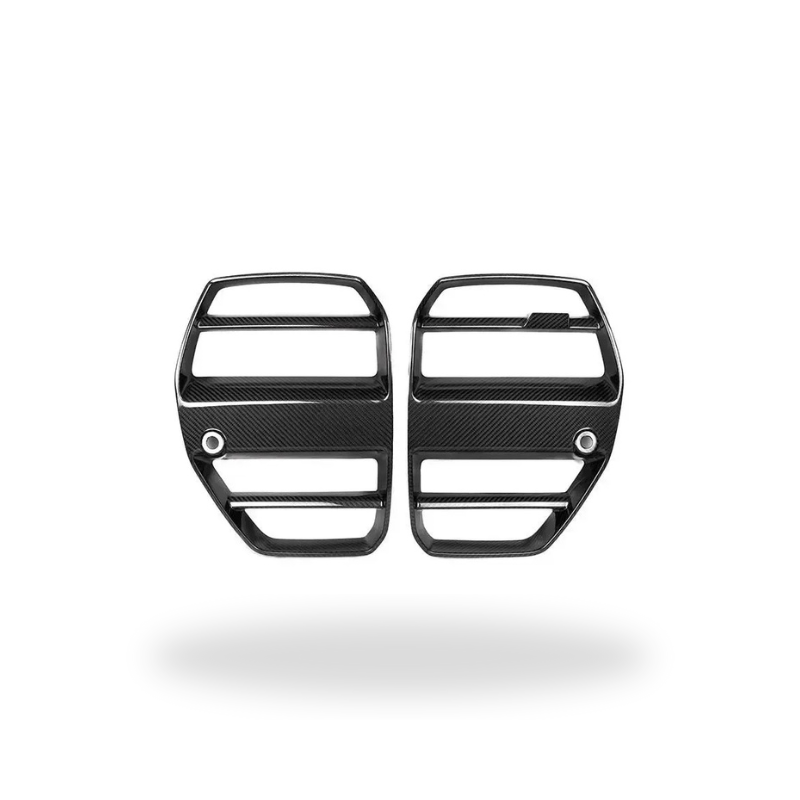

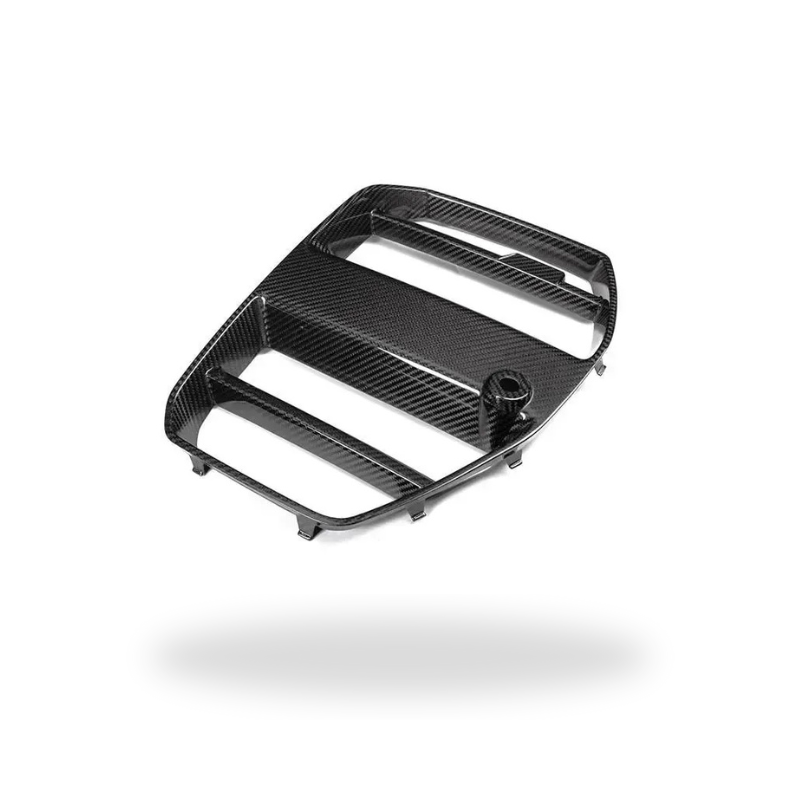

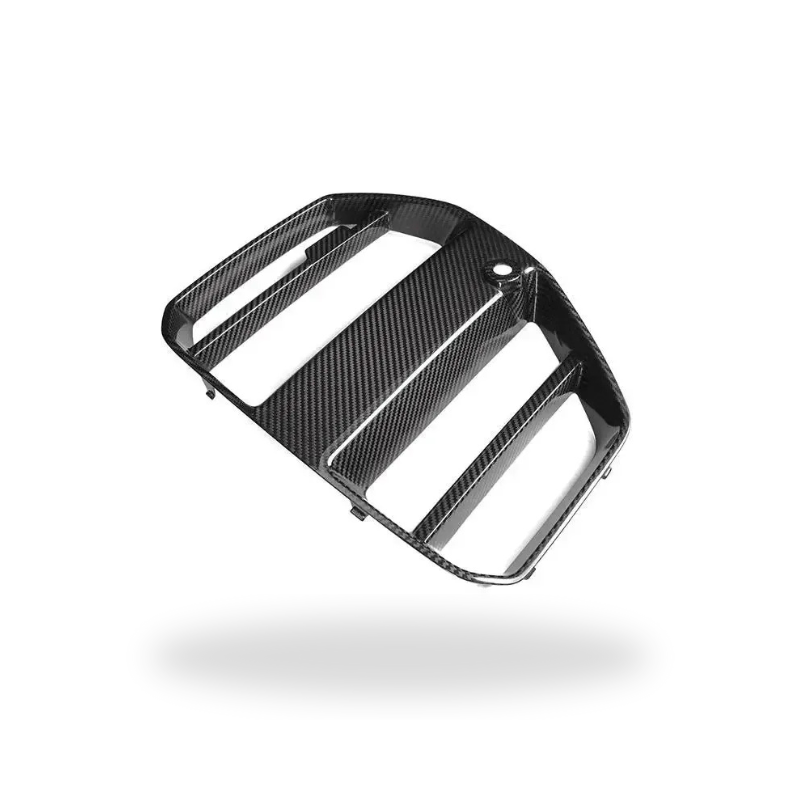

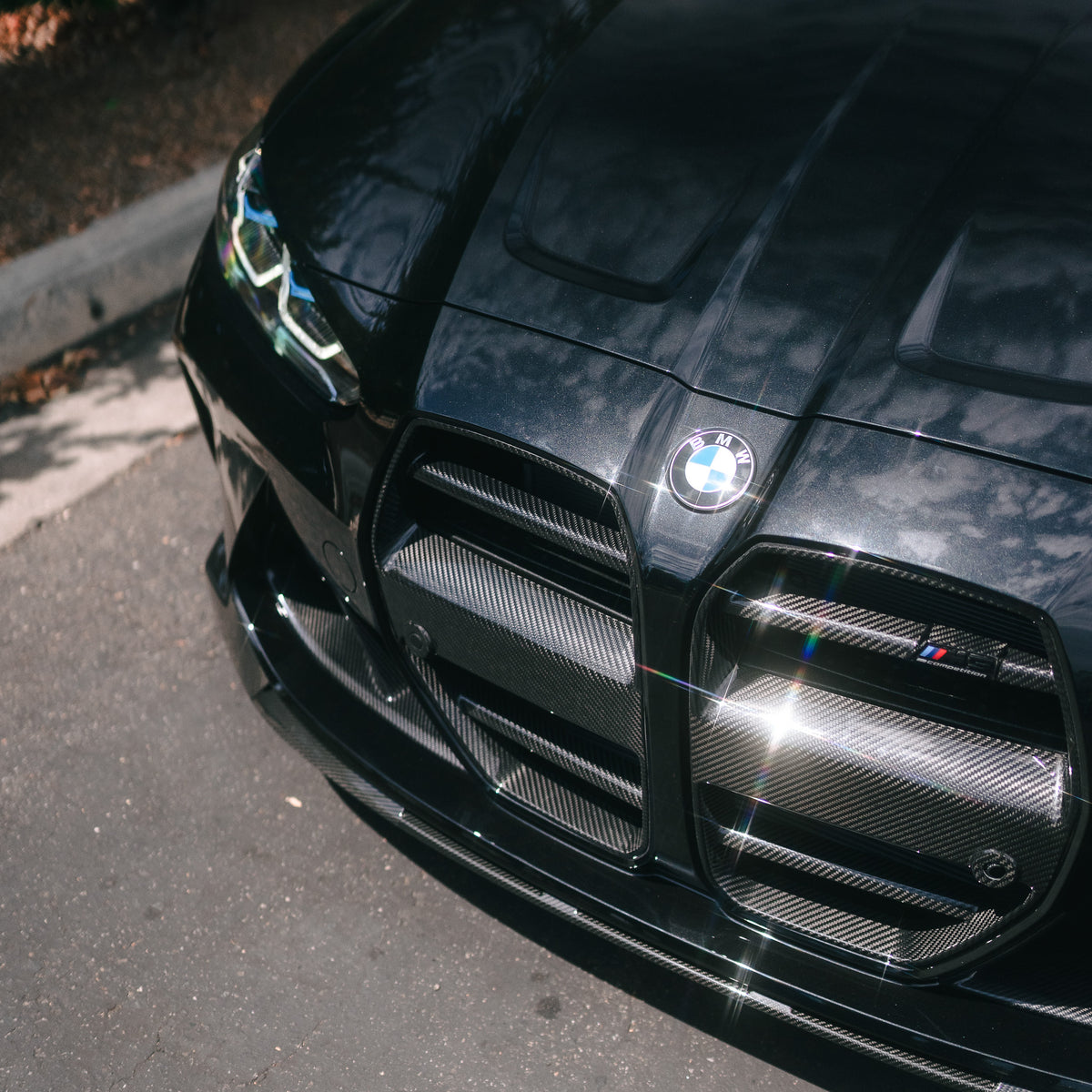

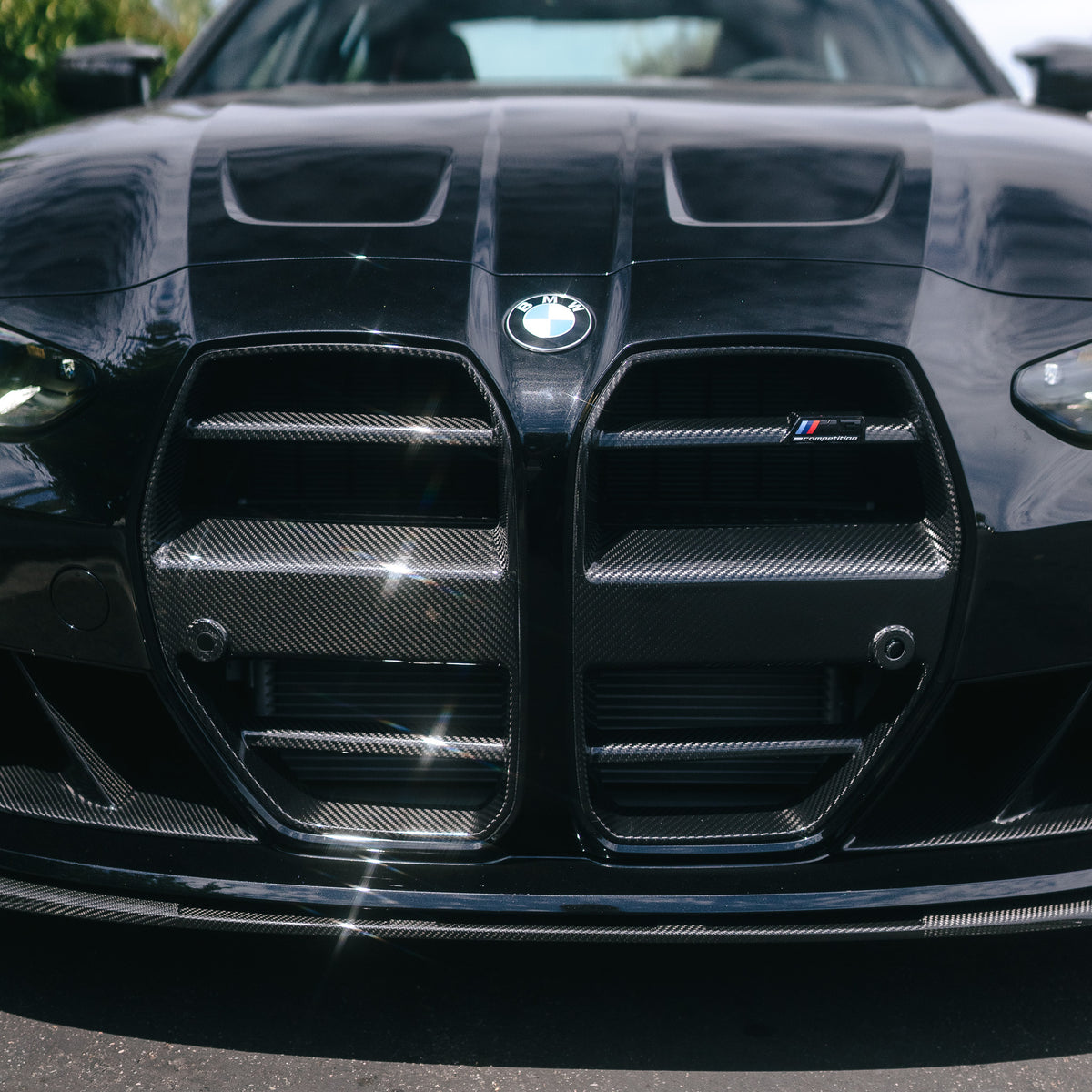

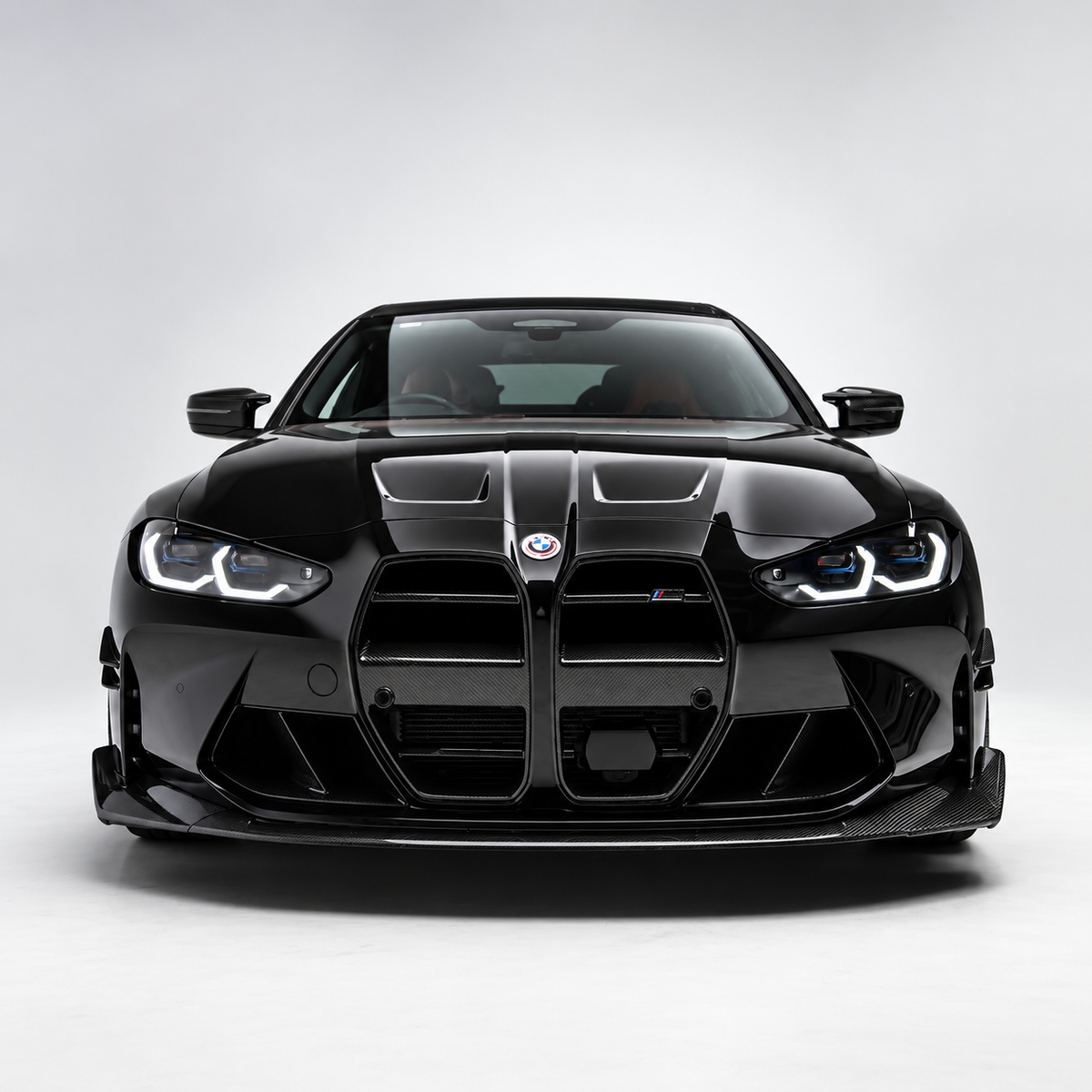

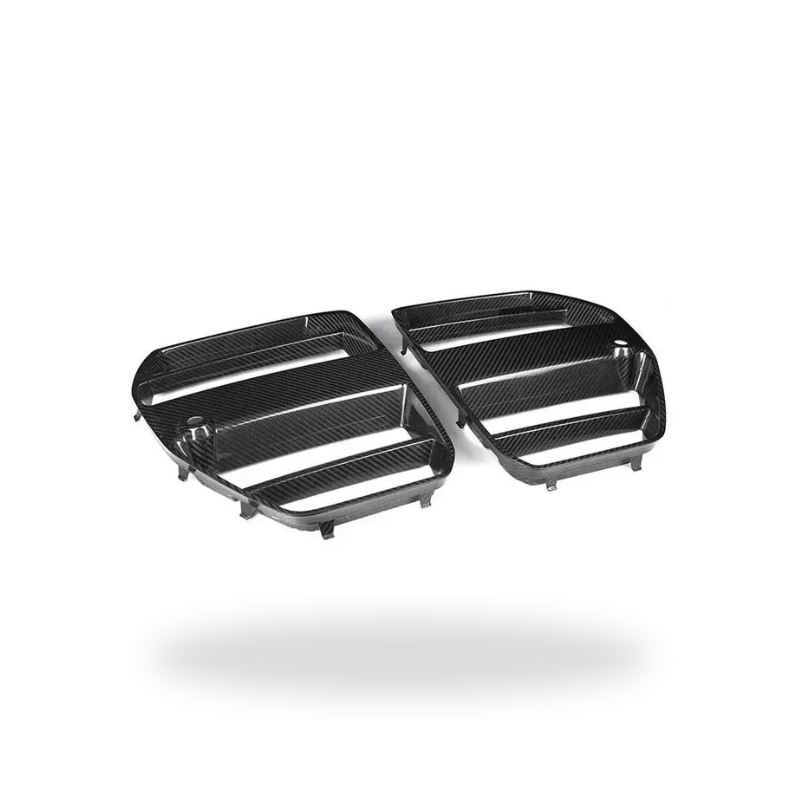

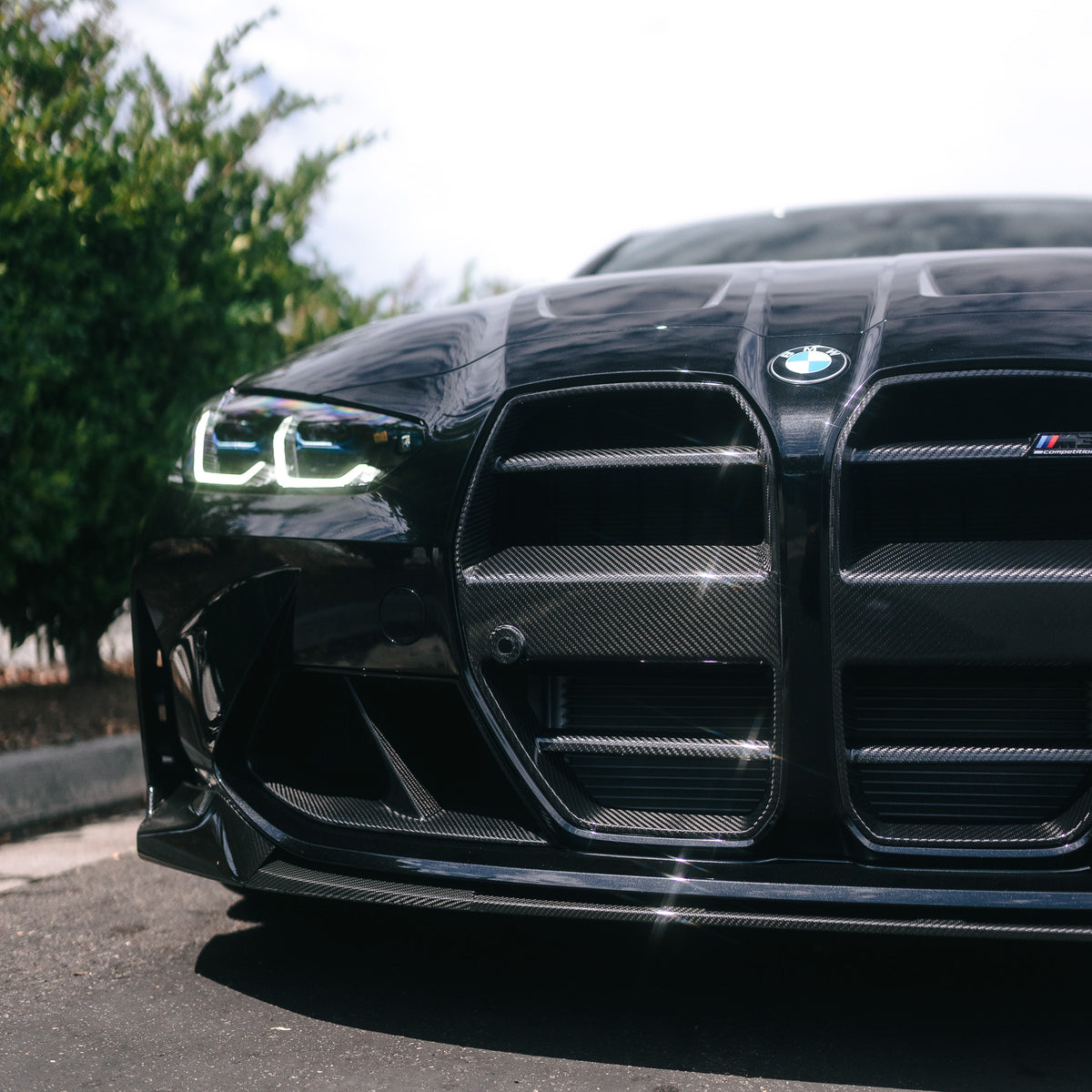

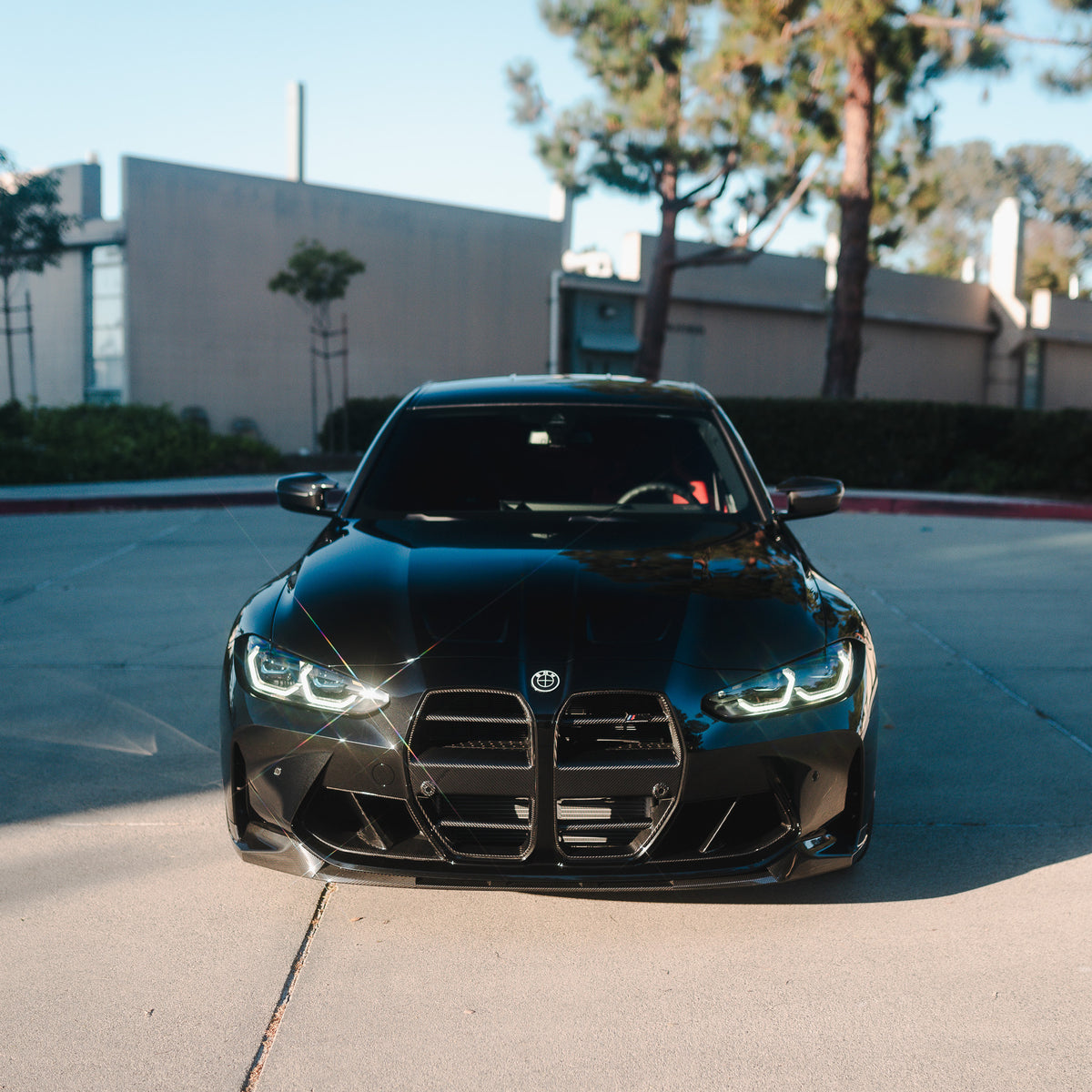

ST Style Carbon Fiber Front Grilles
BMW G80 M3 & G82/G83 M4
Hand laid 2x2 twill carbon fiber grilles inspired by BMW Motorsport's ST Style architecture. Sealed in a UV protective gloss finish and engineered to bolt directly into your factory mounting points - no cutting, no trimming, no adapters.
• Genuine 2x2 twill carbon fiber, not a wrap or painted plastic
• Open-mesh GT3 design, motorsport-inspired styling.
• Bolt-on install in 45–60 minutes, fully reversible.
• OEM-precision fitment across G80 M3 & G82/G83 M4.
Please enter your vehicle information before continuing.

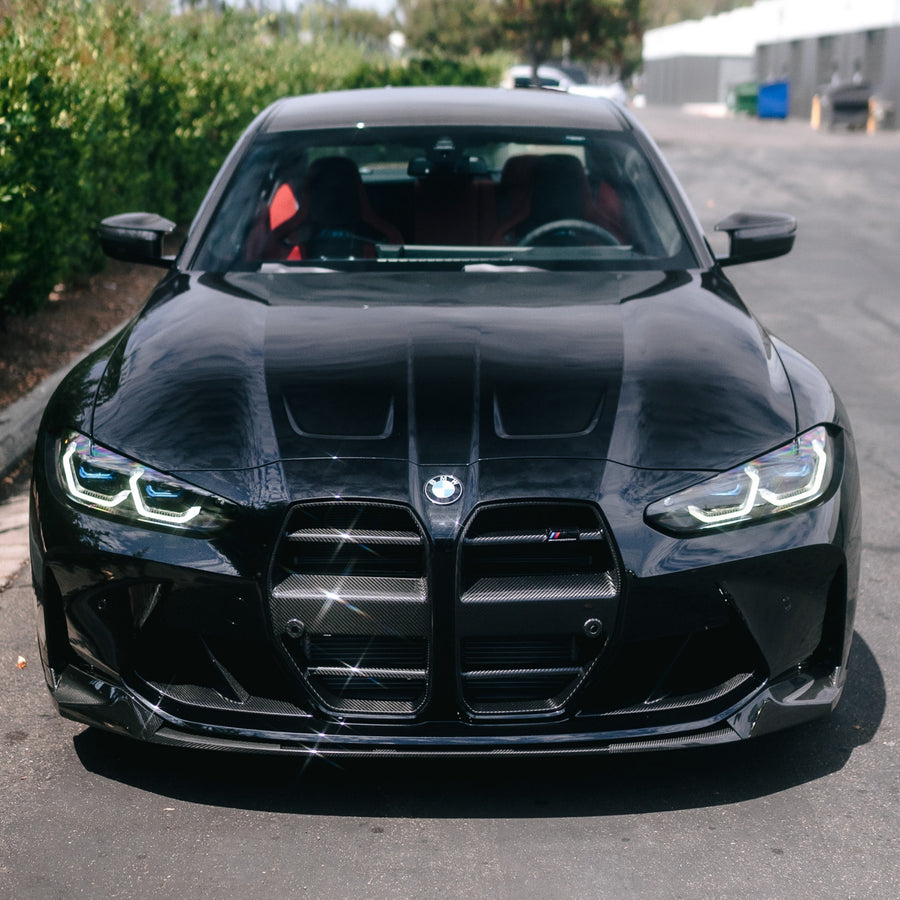

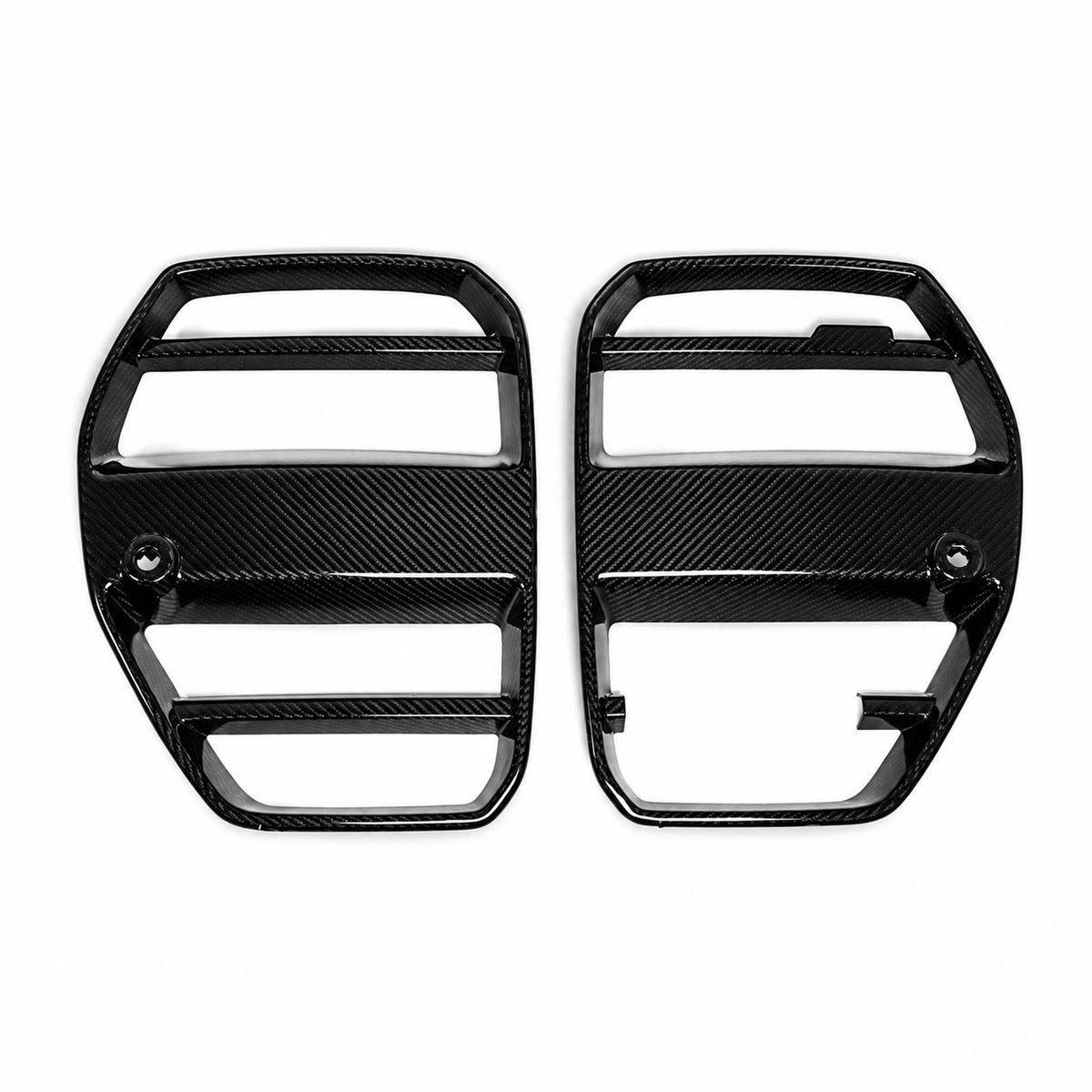

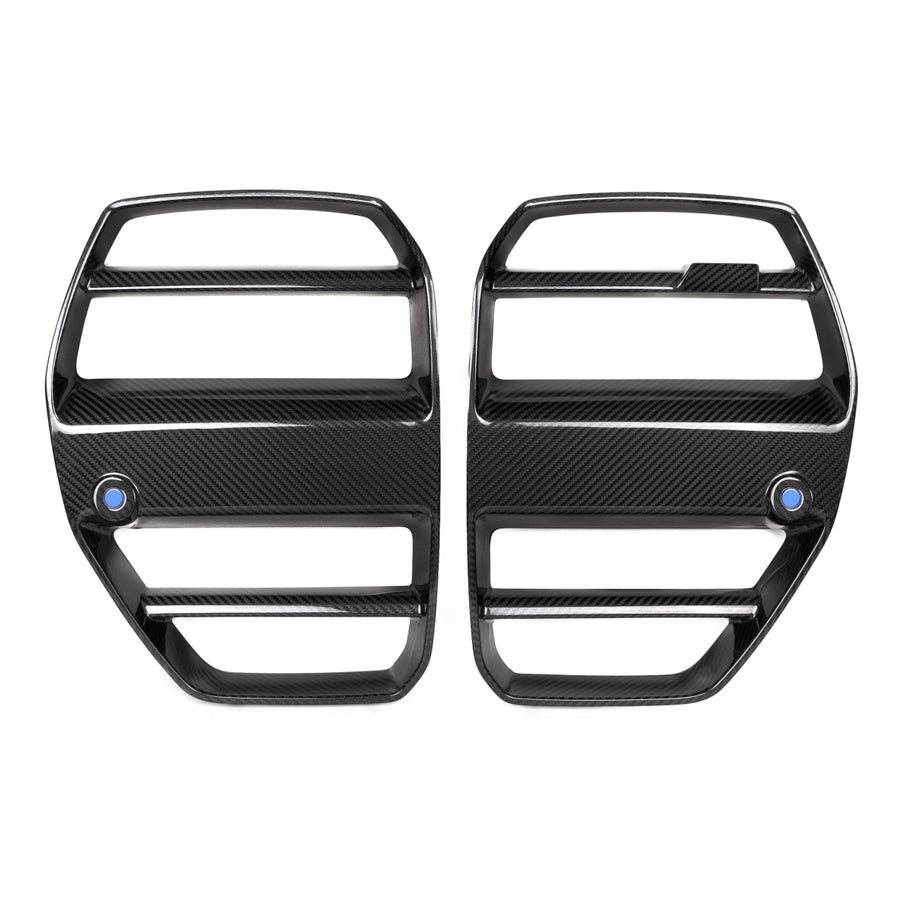

Choose Your Active Cruise Control Option
Find Your Vehicle
Select your BMW modeland year to instantly verify compatibilityfor your GT3 Style Carbon Fiber Front Grilles.
| Year Range | Model | Chassis | ACC Notes |
|---|---|---|---|
| 2021–Present | M3 Sedan | G80 | Direct OEM grille replacement, ACC compatible |
| 2021–Present | M4 Coupe | G82 | Direct OEM grille replacement, ACC compatible |
| 2021–Present | M4 Convertible | G83 | Direct OEM grille replacement, ACC compatible |
Don't see your model?
If your vehicle isn't listed, contact our support team for confirmation.
Contact Support
What Happens During Installation?
Every step below follows OEM-spec procedures designed for a clean, plug-and-play install — no cutting, splicing, or permanent modifications required. Follow the sequence in order to ensure a safe, secure, and fully functional setup.
Preparation & Safety
Park on a flat surface, set the parking brake, and raise the front end. Disconnect the negative battery terminal (optional but recommended when working near sensors).
Step 1
Step 2
Remove Bumper Under-Tray & Wheel-Arch Screws
Under-tray: Use a T25 Torx to remove the 8 perimeter screws and set the panel aside. Wheel-arches: Turn the wheels full lock, then remove three 8 mm screws on each inner fender that secure the bumper corners.
Remove Top Bumper Bolts & Release Clips

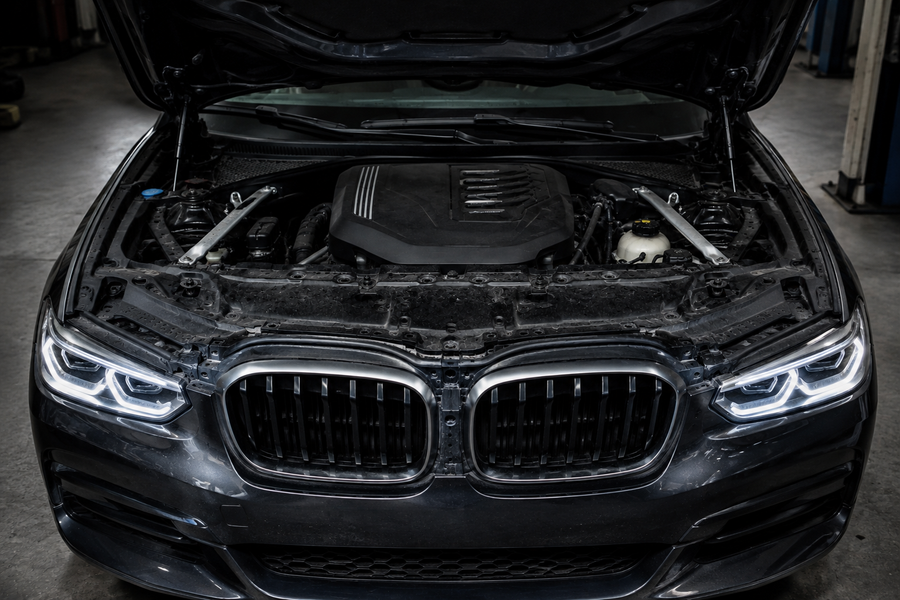

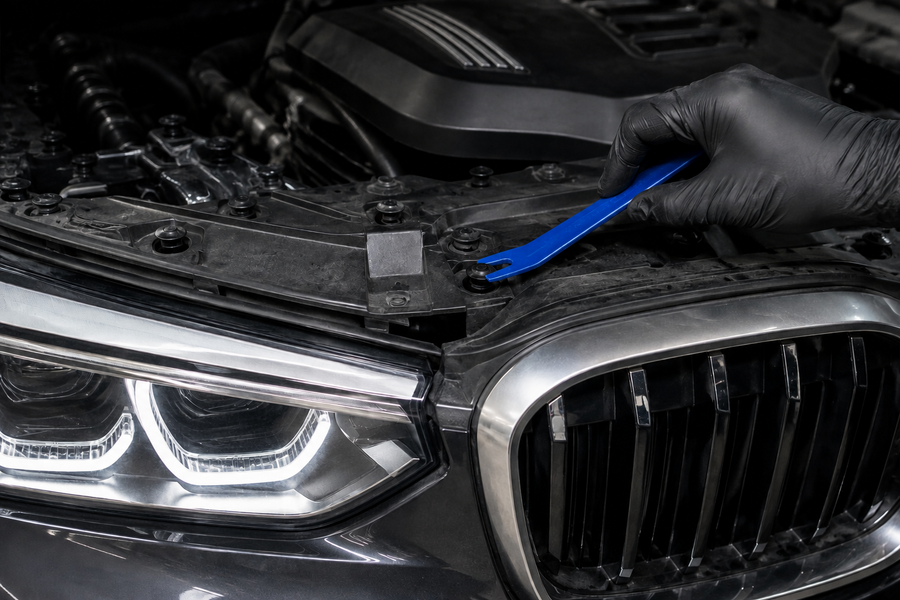

Pop the hood. With a T30 Torx, remove the six upper carrier bolts. Gently release the two plastic alignment clips by pulling upward.
Step 3
Step 4

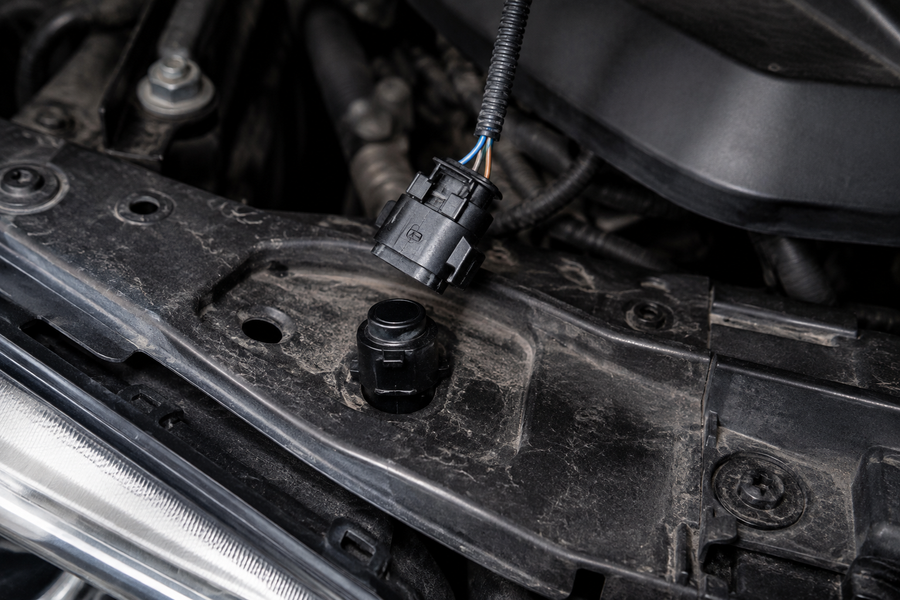

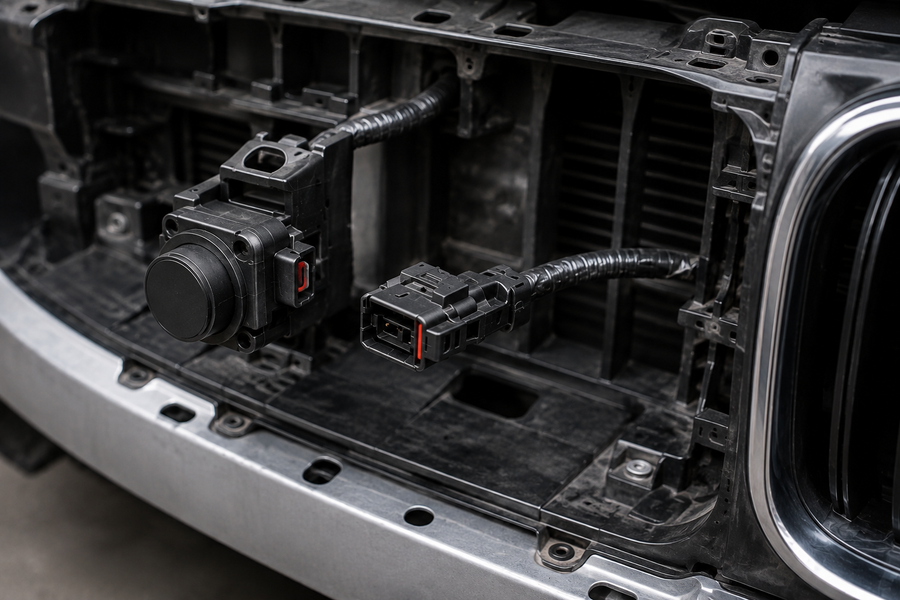

Disconnect Cameras & Sensors
Unplug the front camera (if equipped) and ACC sensor harness. Press the tab and pull—never yank the wires.
Remove the Bumper
Have a helper support one corner. Pull the bumper straight forward; the side spats will pop off the guide pins. Lay the bumper face-down on a blanket.
Step 5
Step 6

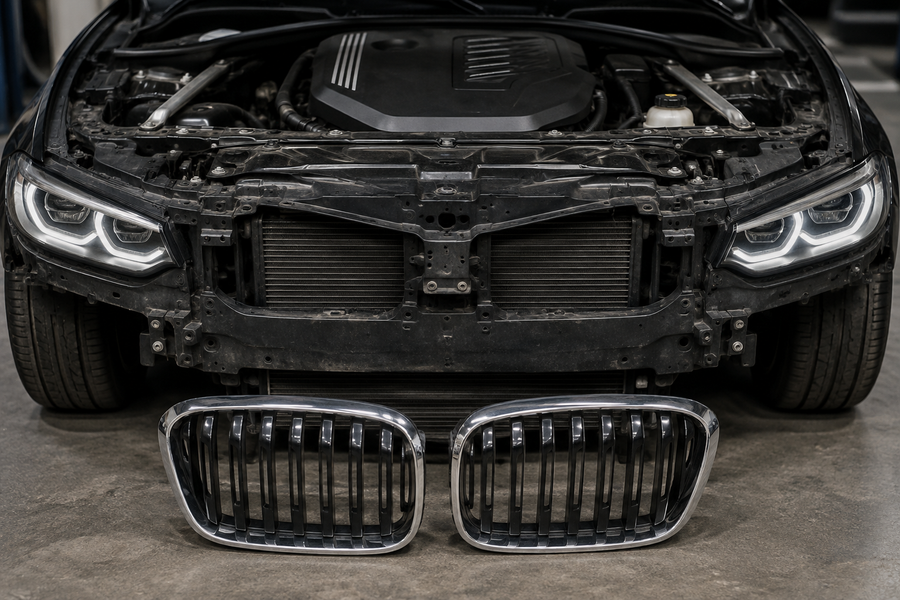

Remove the OEM Grille
Locate the 14 small plastic tabs around the grille perimeter. Using a trim tool or flat-head, depress each tab while pushing the grille outward. Transfer the camera bracket and ACC badge to the CSL grille using the same screws.

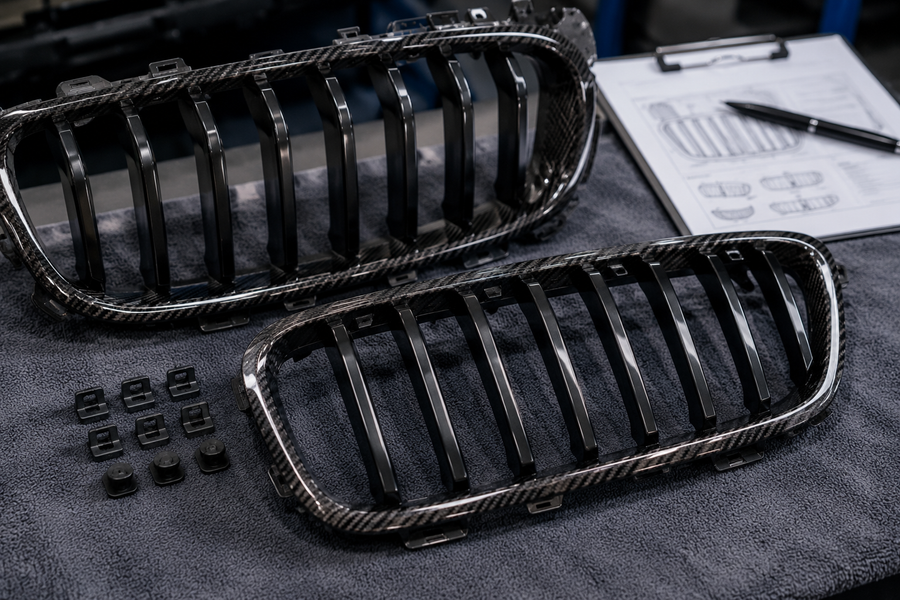

Install the Bimmer Plug Carbon Fiber Grille

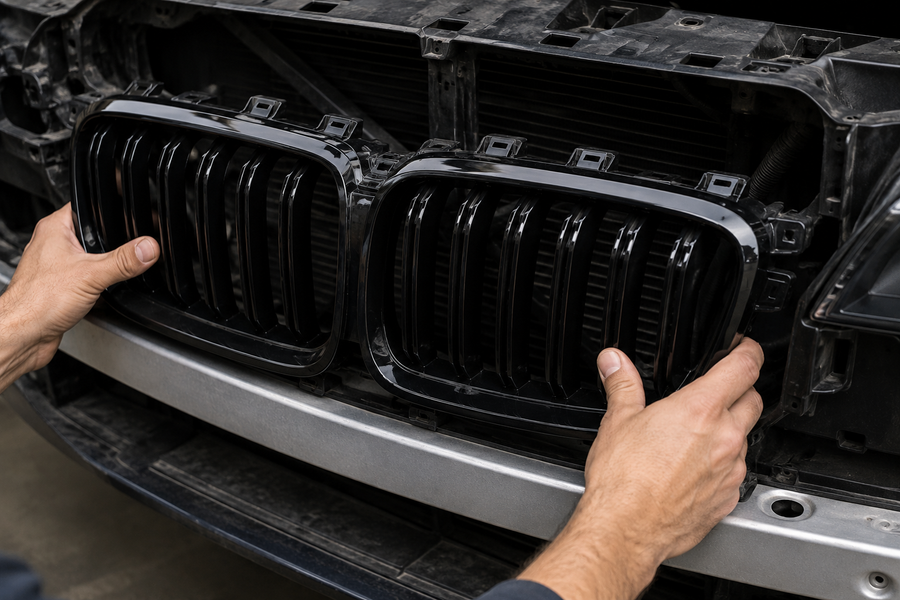

Align the new grille with the bumper opening, starting with the lower tabs. Press firmly until each tab clicks into place. Double-check all clips are fully seated.
Step 7
Step 8
Re-install Bumper
Slide the bumper back onto the guide pins under the headlights. Reconnect all wiring harnesses. Reinstall the six upper bolts, wheel-arch screws, and under-tray panel. Torque to OEM spec (6 Nm for Torx screws, 10 Nm for carrier bolts).
Final Checks

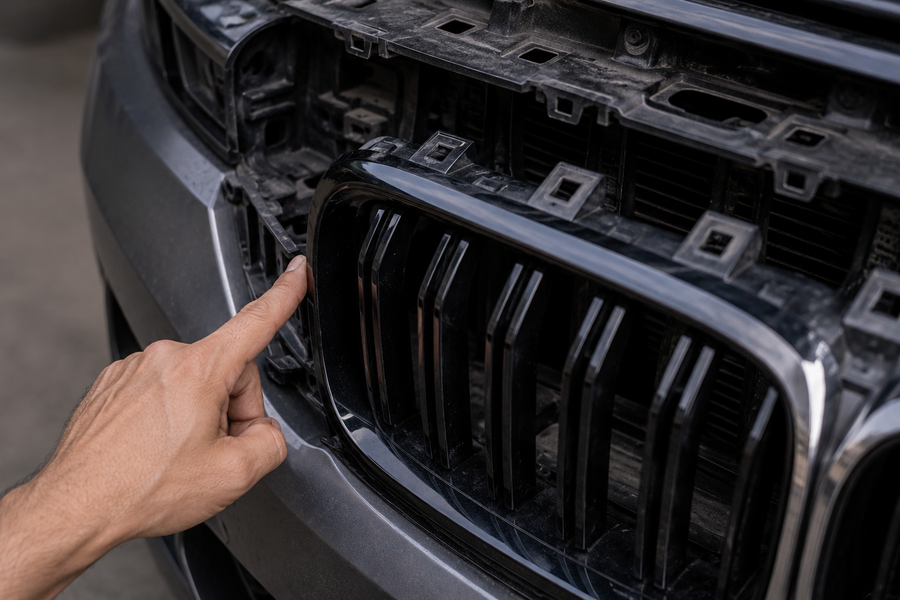

Lower the car and run a quick sensor calibration if iDrive prompts you. Visually inspect panel gaps and ensure the grille sits flush.
Step 9
Installation Protocol
Prefer it done for you?
DIY installation takes around 25 minutes using basic tools. For guaranteed fitment and the best results, we recommend having your upgrade installed by a certified professional.
DIY takes about 25 minutes with basic tools. For a guaranteed clean install book a certified installer near you.
Certified Installers. Guaranteed Work
Backed byQuality
You're not just buying premium BMW parts—you’re investing in expert support, trusted quality, and a seamless upgrade experience from purchase to installation.
GUARANTEED FITMENT
Every grille is engineered and verified for a precise, OEM-level fit on your G80 M3 or G82/G83 M4.
PROTECTED PURCHASE
Your payment and personal information are fully secured with encrypted checkout.
100% AUTHENTIC GUARANTEE
Every grille is genuine hand laid carbon fiber, sourced directly from Bimmer Plug, no imitations ever.
Engineered for Performance. Built to Last.
Every GT3 Style Front Grille reflects our commitment to OEM grade engineering, hand laid carbon fiber, chassis specific fitment for your G80 M3 or G82/G83 M4, and a bolt on install delivering a precise, motorsport inspired finish.
Every specification reflects our commitment to OEM grade engineering, from hand laid carbon fiber to precision chassis fitment, each grille delivers a motorsport inspired upgrade over factory parts.
Premium
Real Carbon Fiber
Hand laid 2x2 twill weave carbon fiber, sealed in a gloss UV protective coat. Genuine weave visible at every angle, not a vinyl wrap, not painted plastic.
Verified
GT3 Race Design
Open mesh design inspired by BMW Motorsport's GT3 program. Replaces your factory closed grille with a track bred look on your G80 M3 or G82/G83 M4.
Precision
OEM-Precision Fitment
Engineered to match every factory mounting point and clip. Installs directly into your OEM grille position. Zero trimming, zero adapters.
Complete
Bolt-On Install
45–60 minute bolt on install with basic hand tools. No cutting, no permanent modification. Your factory grilles can go back on anytime.
OEM Grade
Material & Finish
Hand-laid 2x2 twill carbon fiber layup, sealed in a gloss UV-protective clear coat replacing OEM's injection molded thermoplastic with genuine, lighter carbon construction.
Motorsport Design
Design Philosophy
Replaces the factory's conservative closed styling with the iconic GT3 motorsport open mesh signature, giving your G80/G82/G83 a distinct track inspired identity.
Bolt On
Installation Process
Bolt on installation in 45–60 minutes using factory OEM-mirrored mounting points no cutting, no permanent modification, fully reversible.
Vehicle Specific
Fitment Engineering
Engineered to G80/G82/G83 factory chassis specification, backed by a manufacturer's warranty and a dedicated tech support line beyond the standard dealer network.
Recommended For Your BMW.
Complete your upgrade with premium OEM+ accessories selected to complement your BMW. Every recommendation is tested for compatibility, easy installation, and factory quality integration.
Popular
BMW G80 M3 & G82/G83 M4

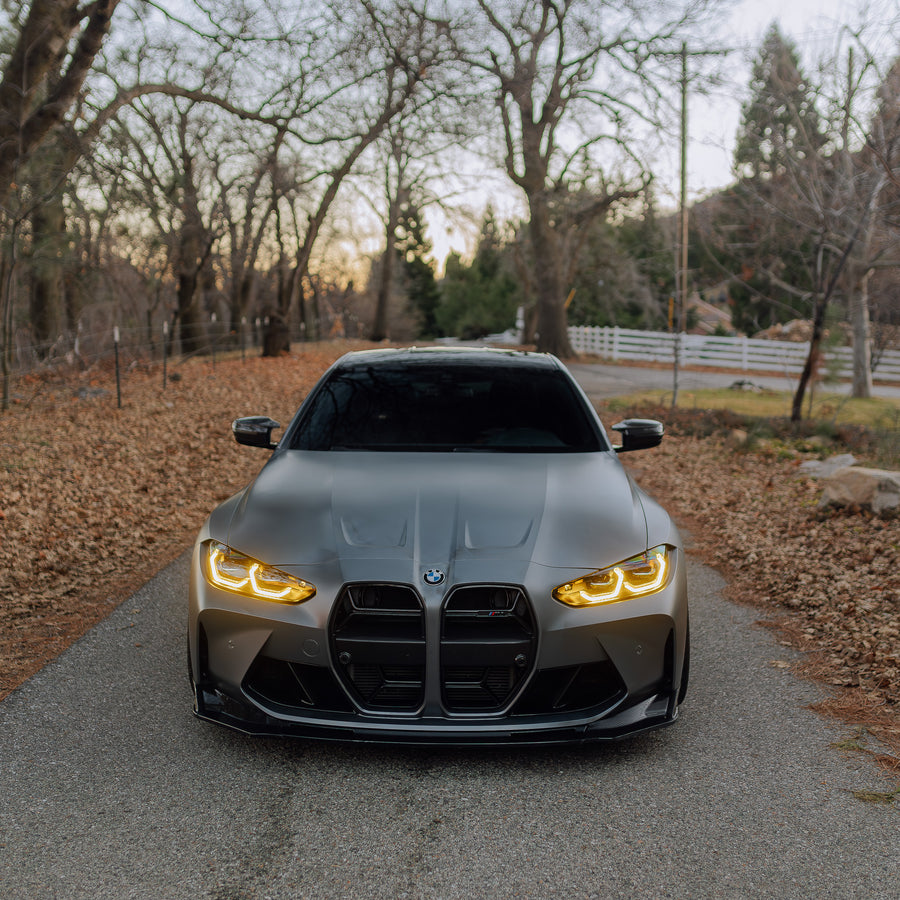

CSL Style Carbon Fiber FrontGrilles
Motorsport inspired split styling for a bolder, more distinctive front fascia.
BOLT-ON
OEM FIT
CARBON FIBER
View Details
BMW G80 M3 & G82/G83 M4

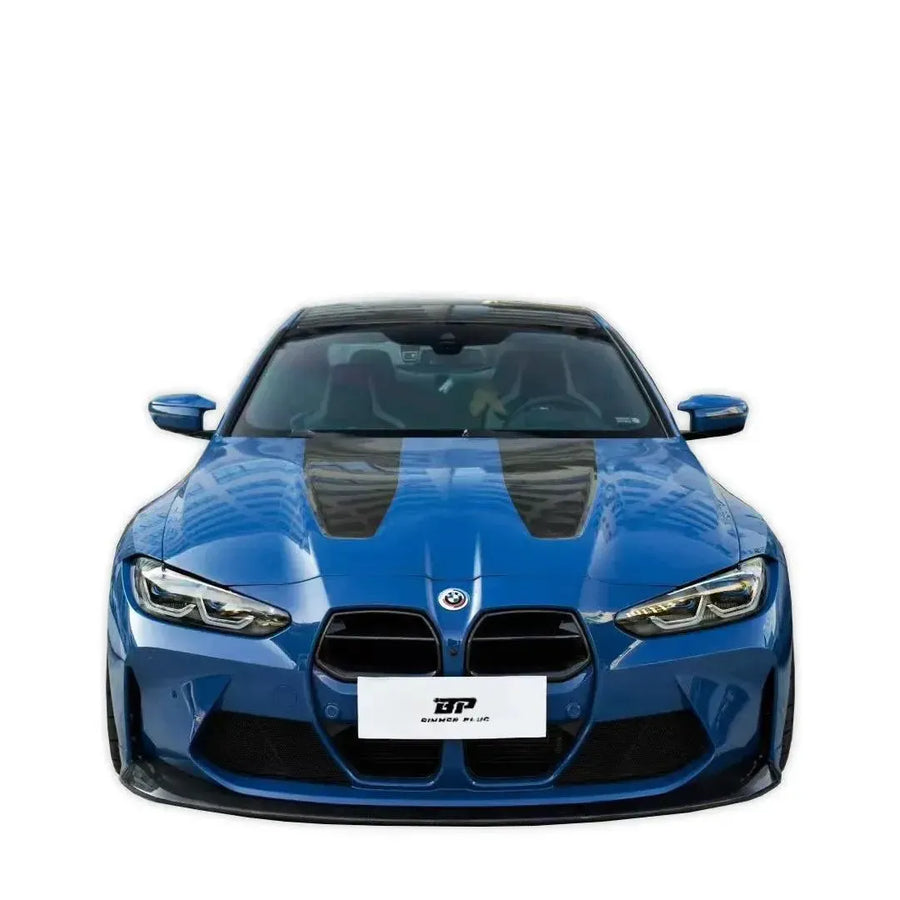

AN Style Carbon Fiber Front Grilles
