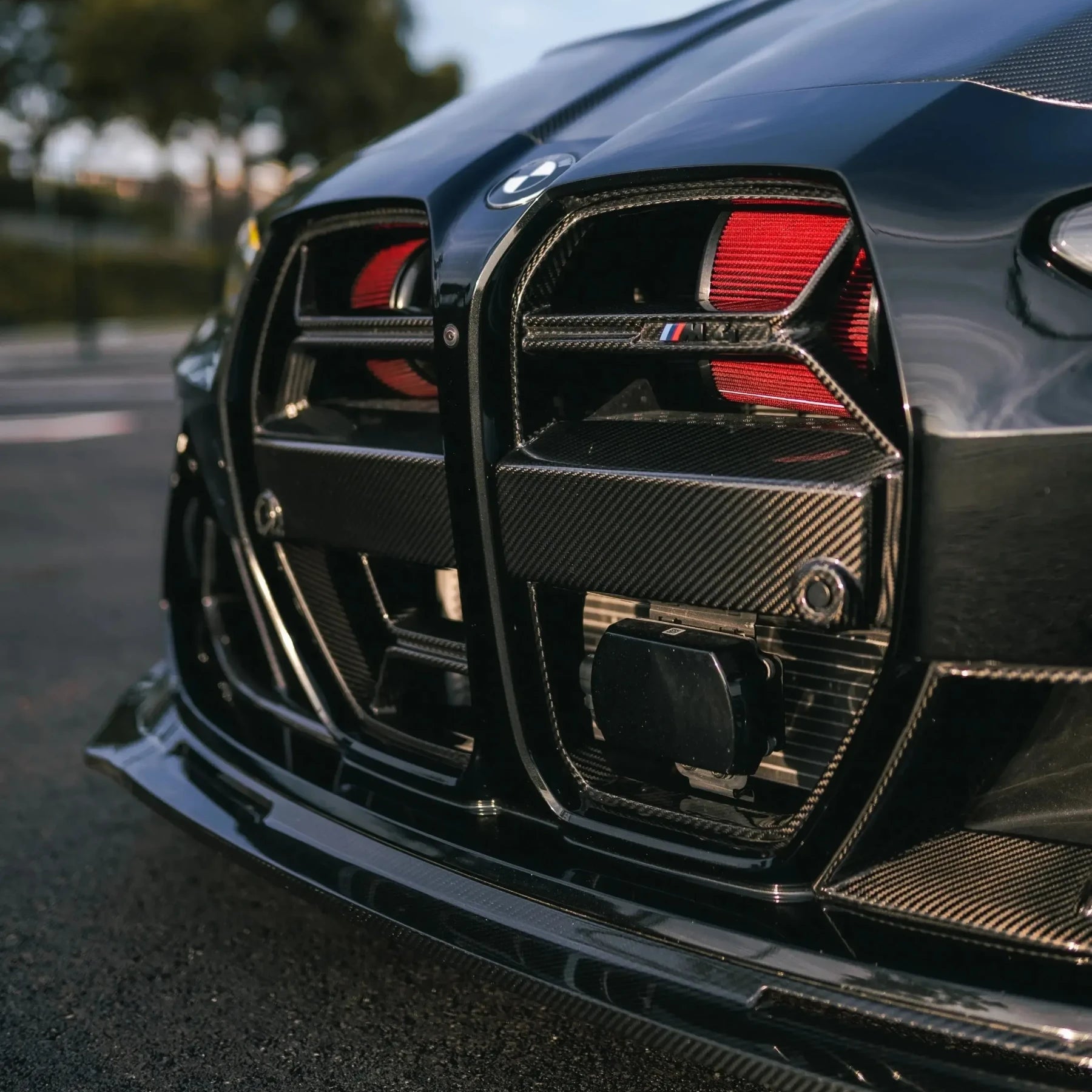

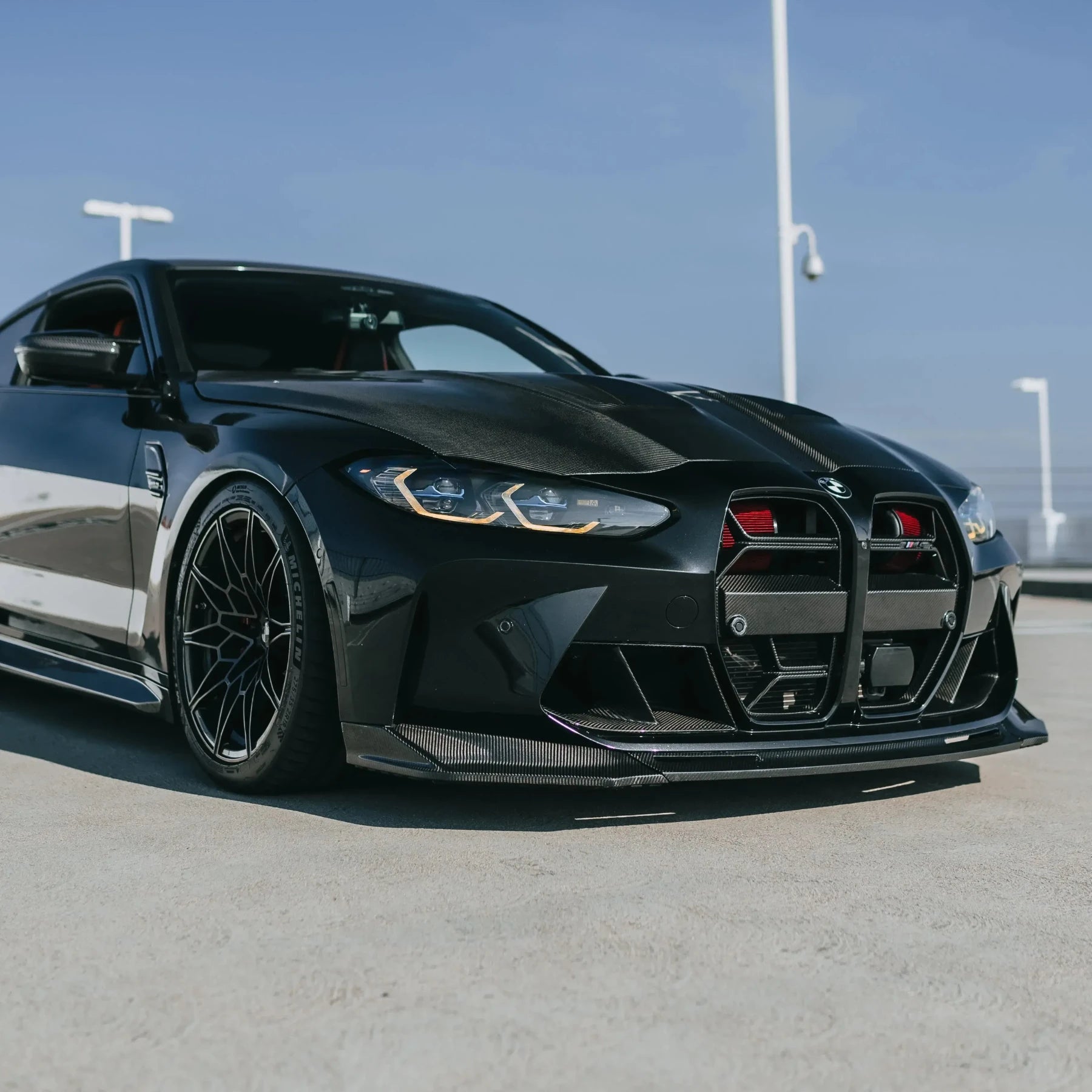

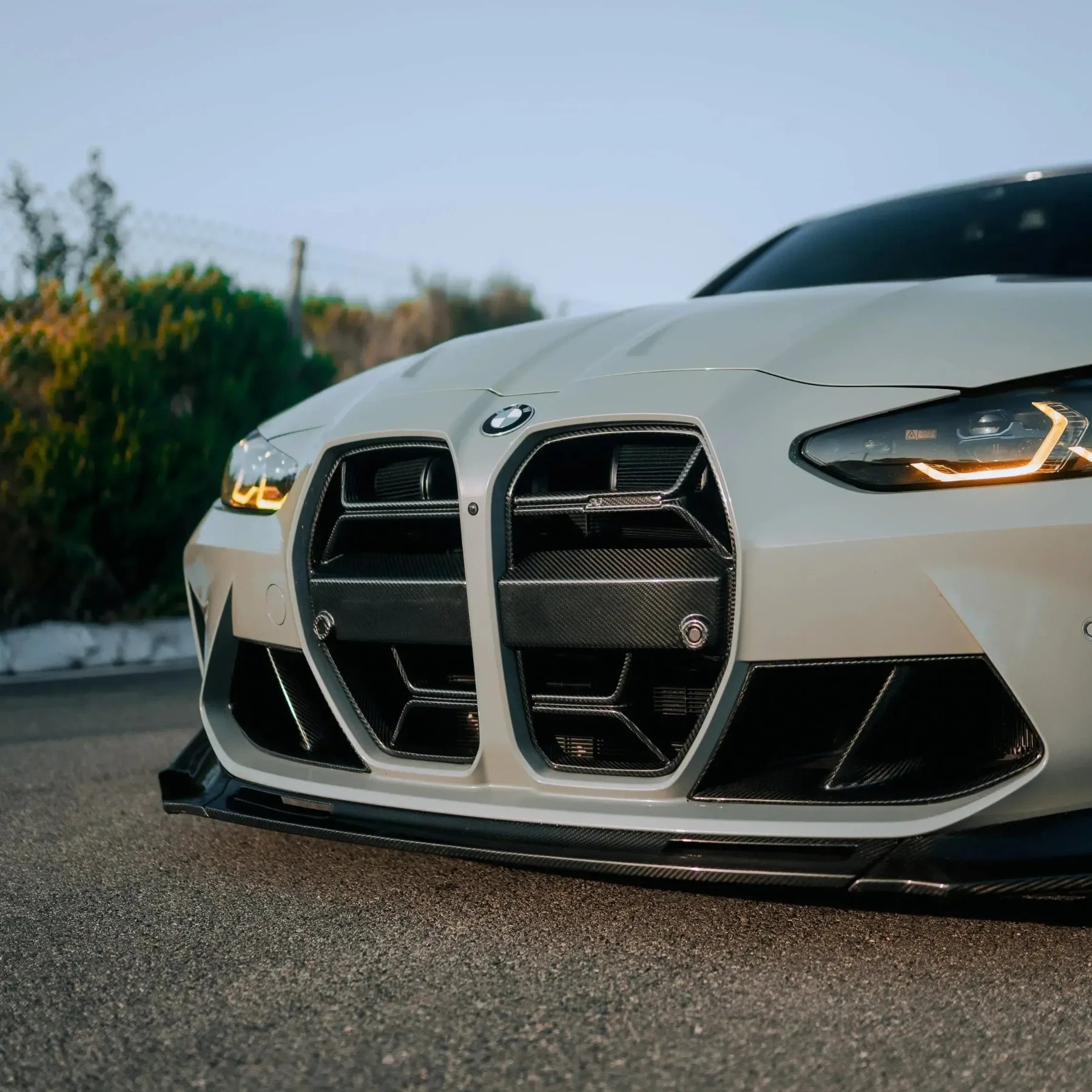

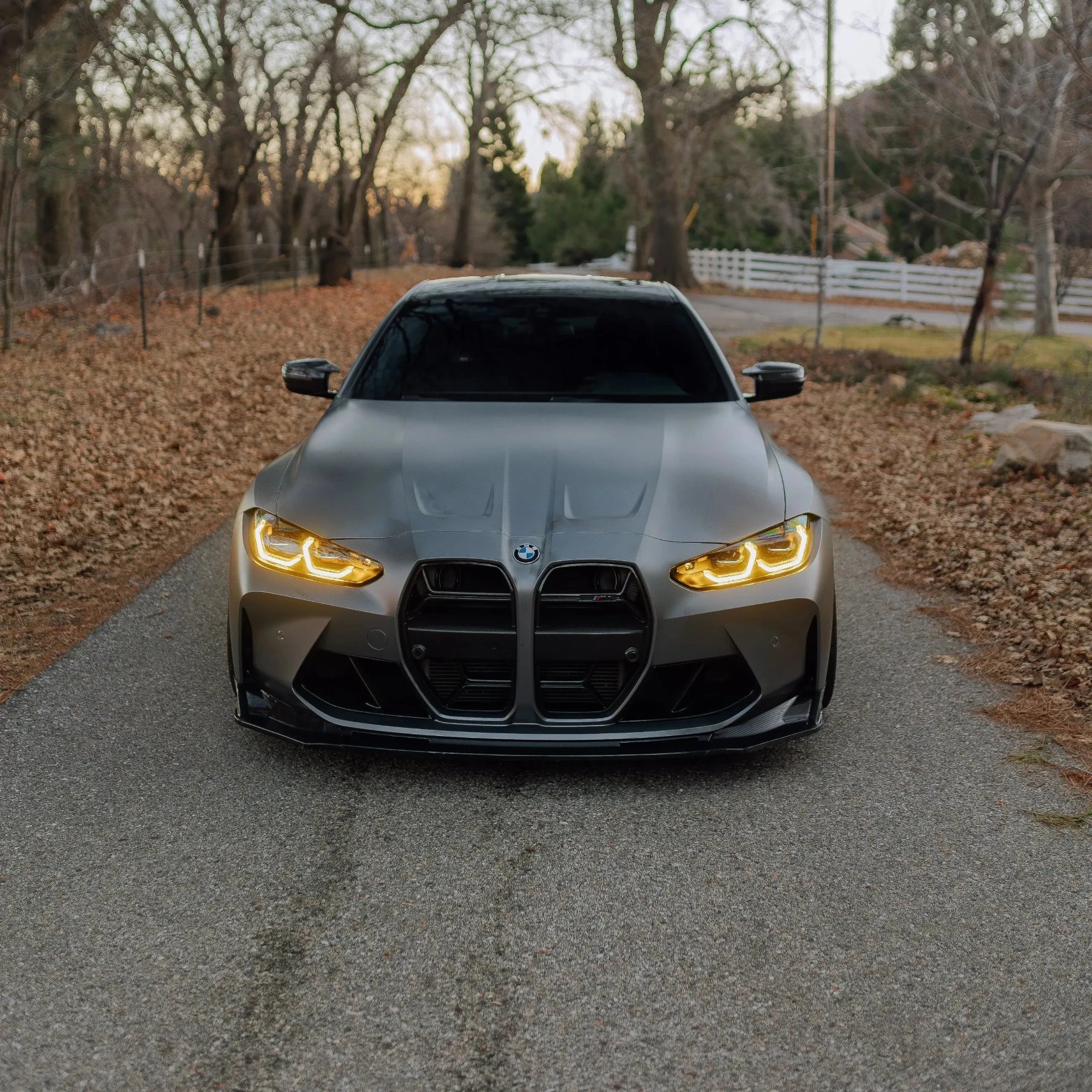

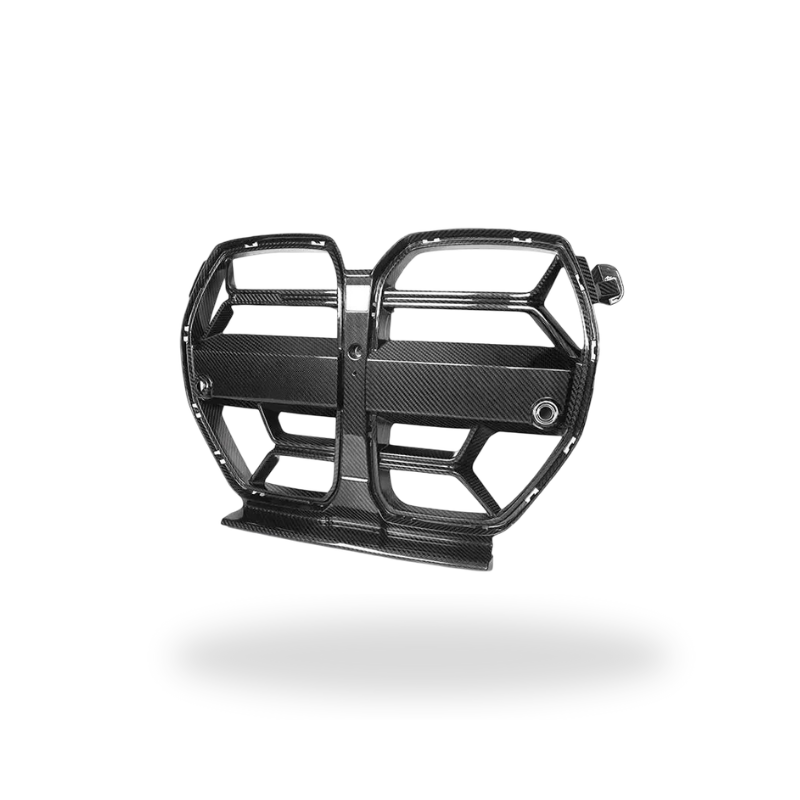

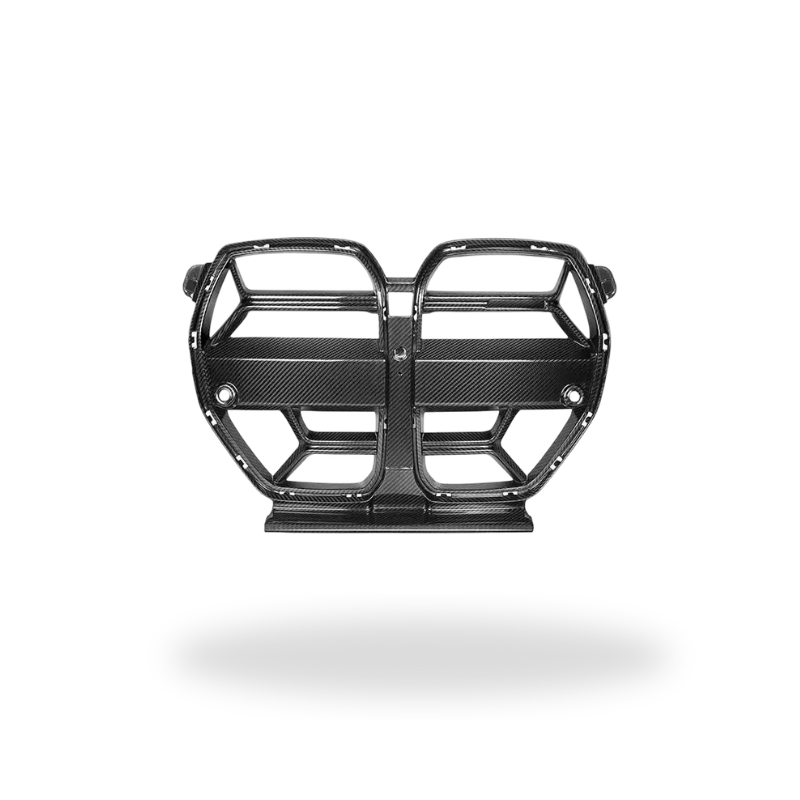

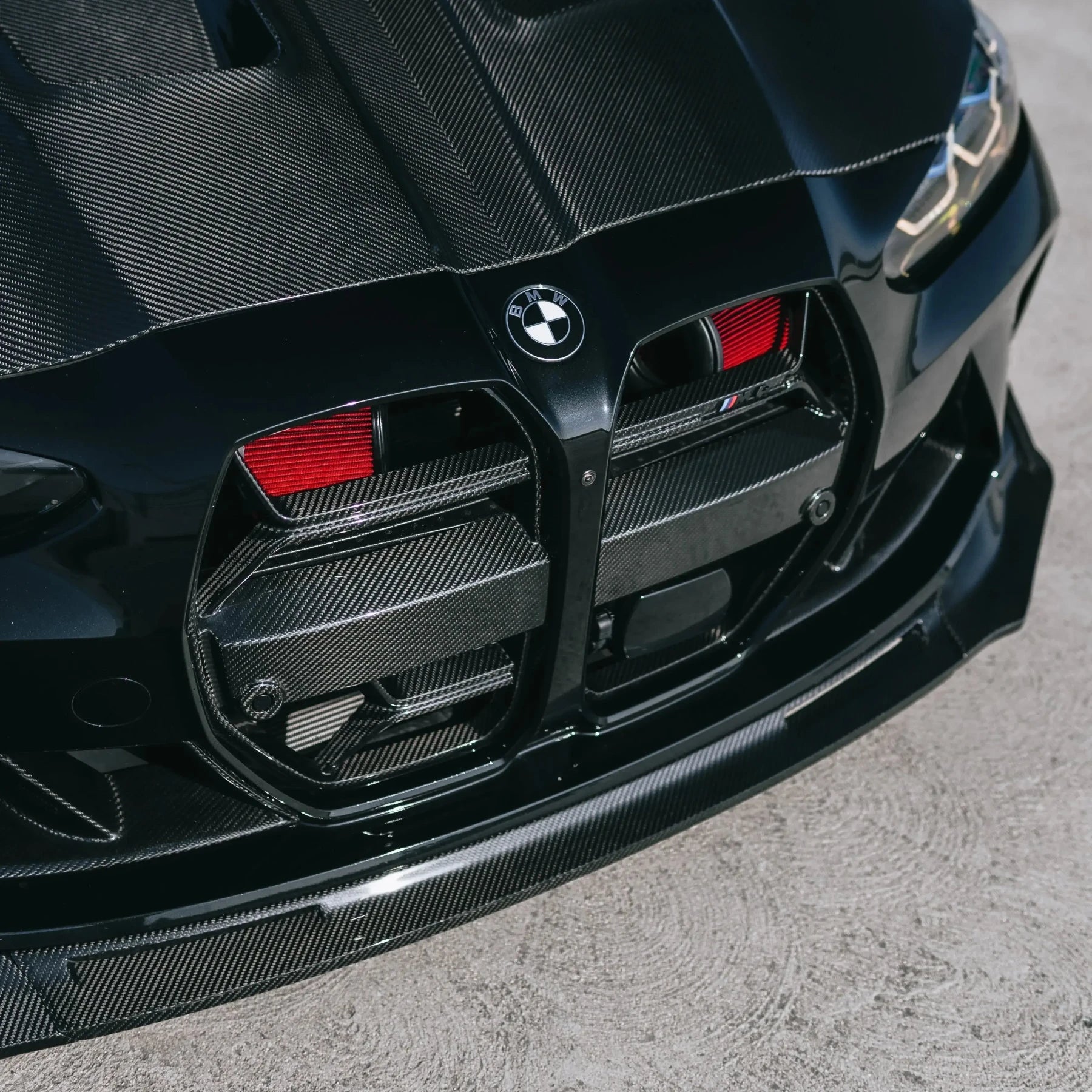

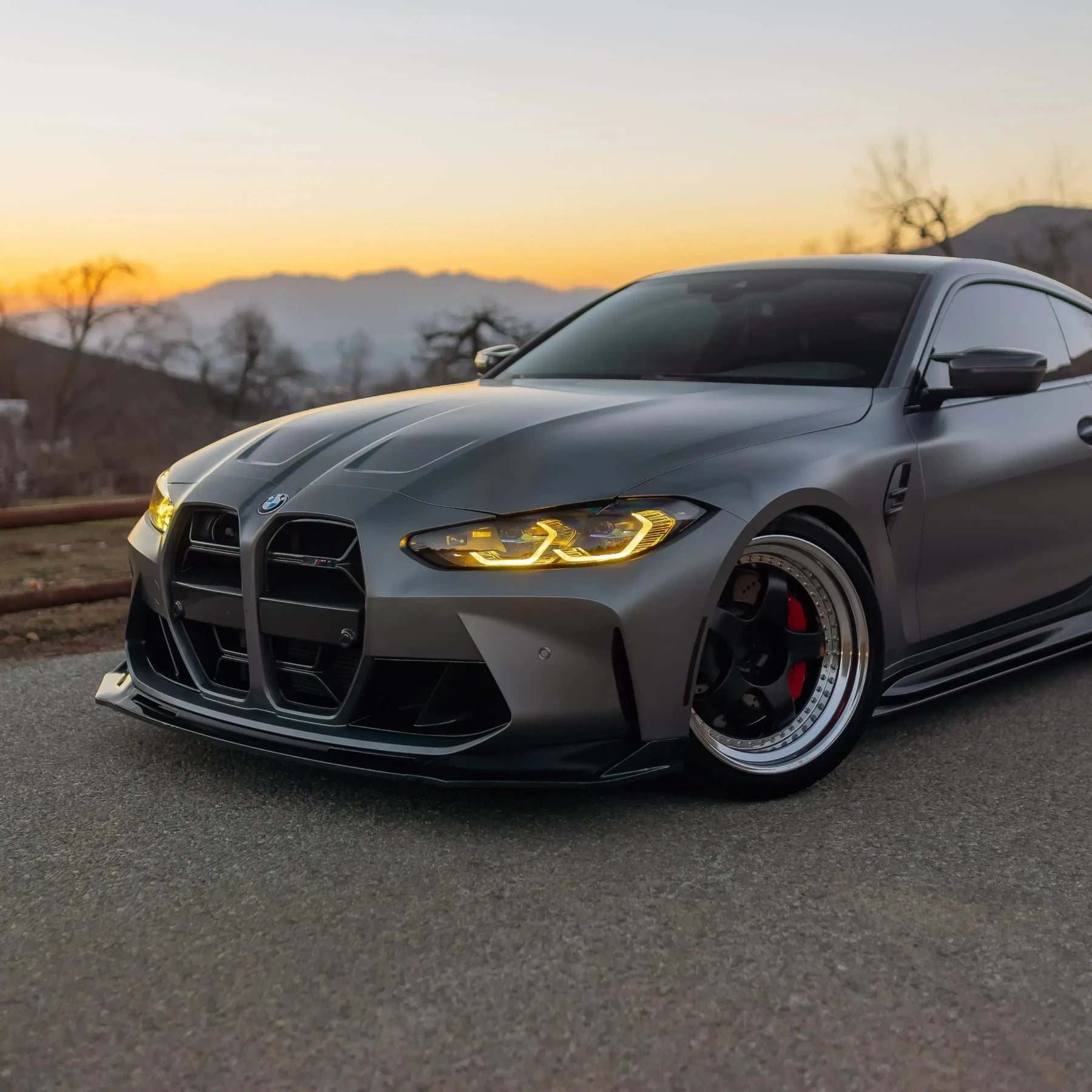

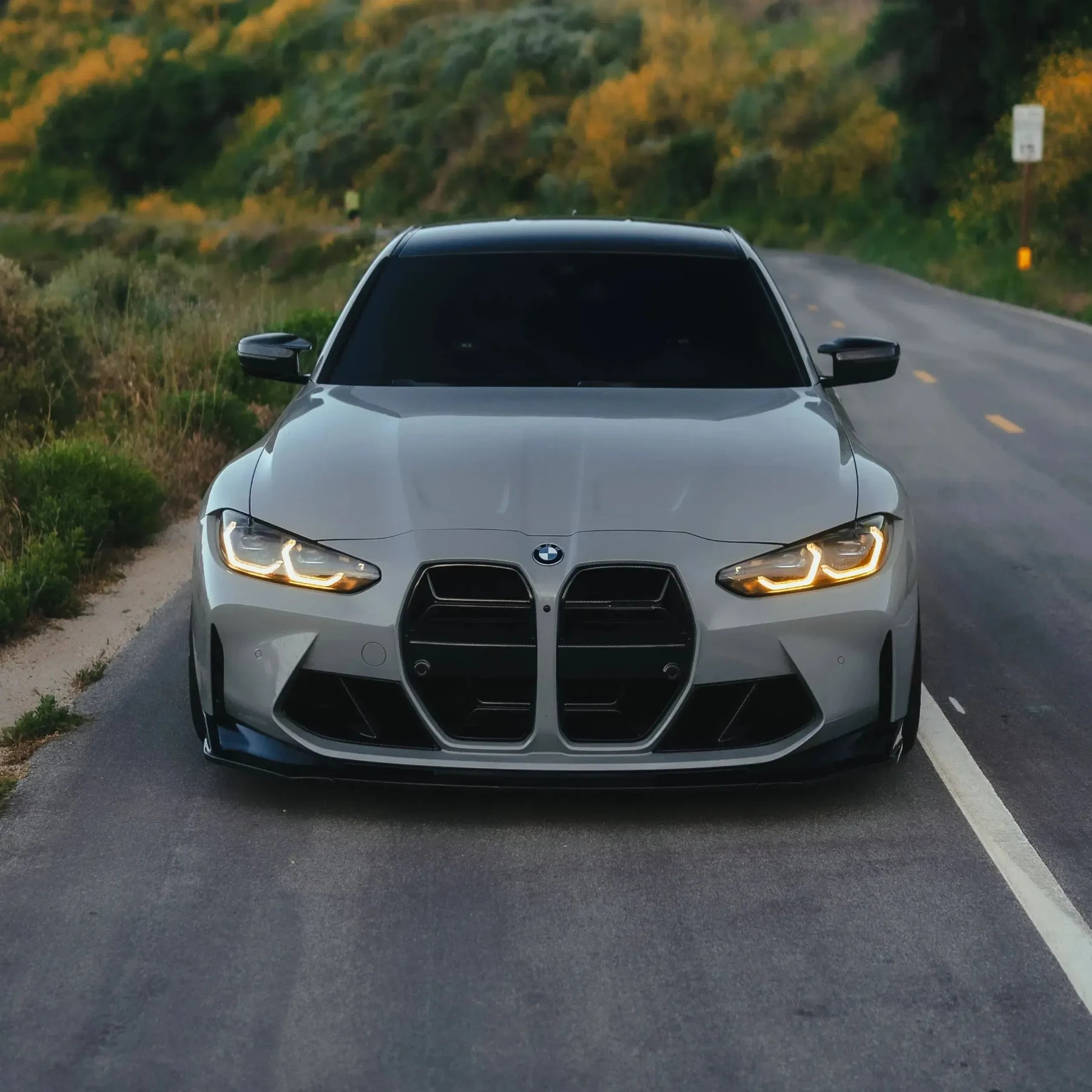

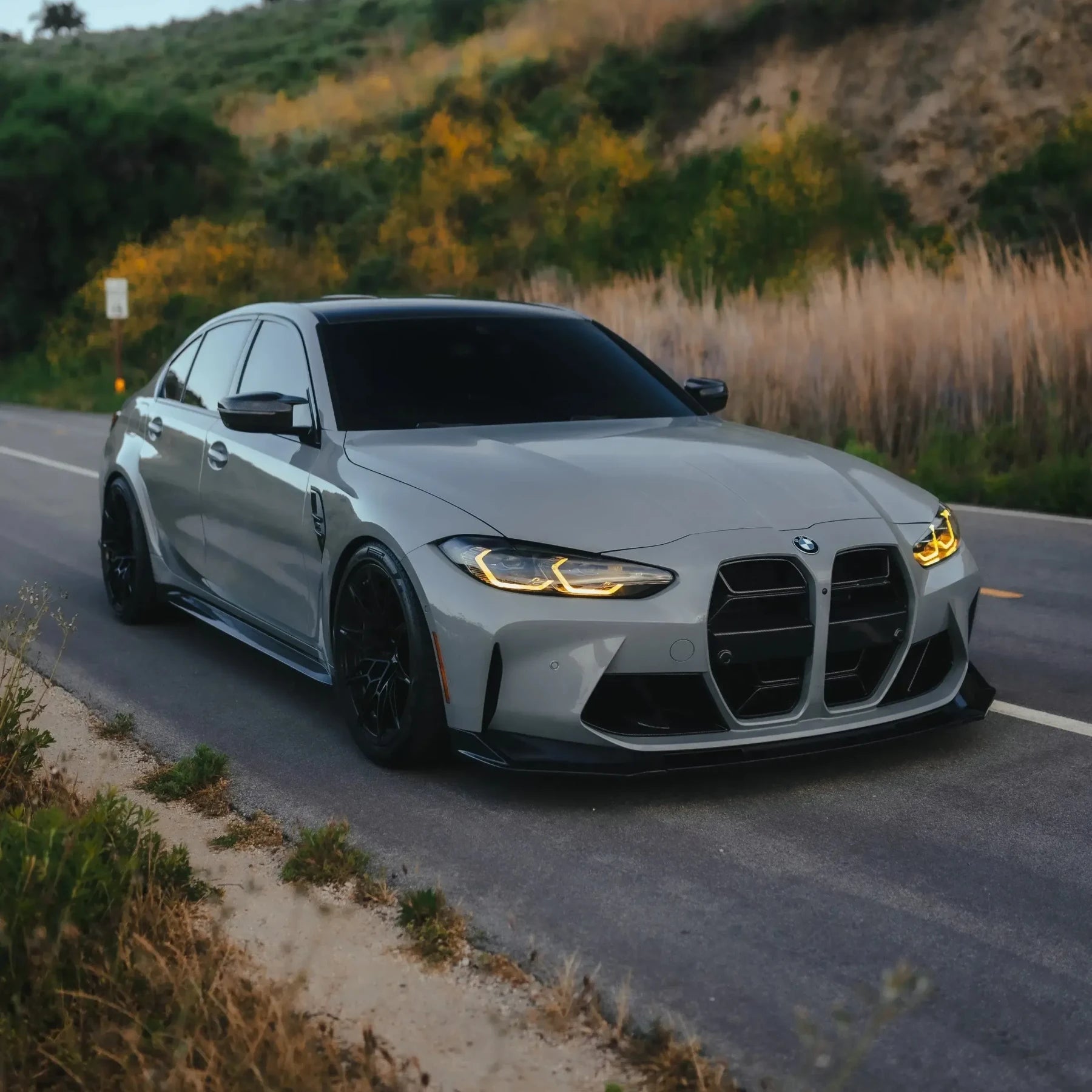

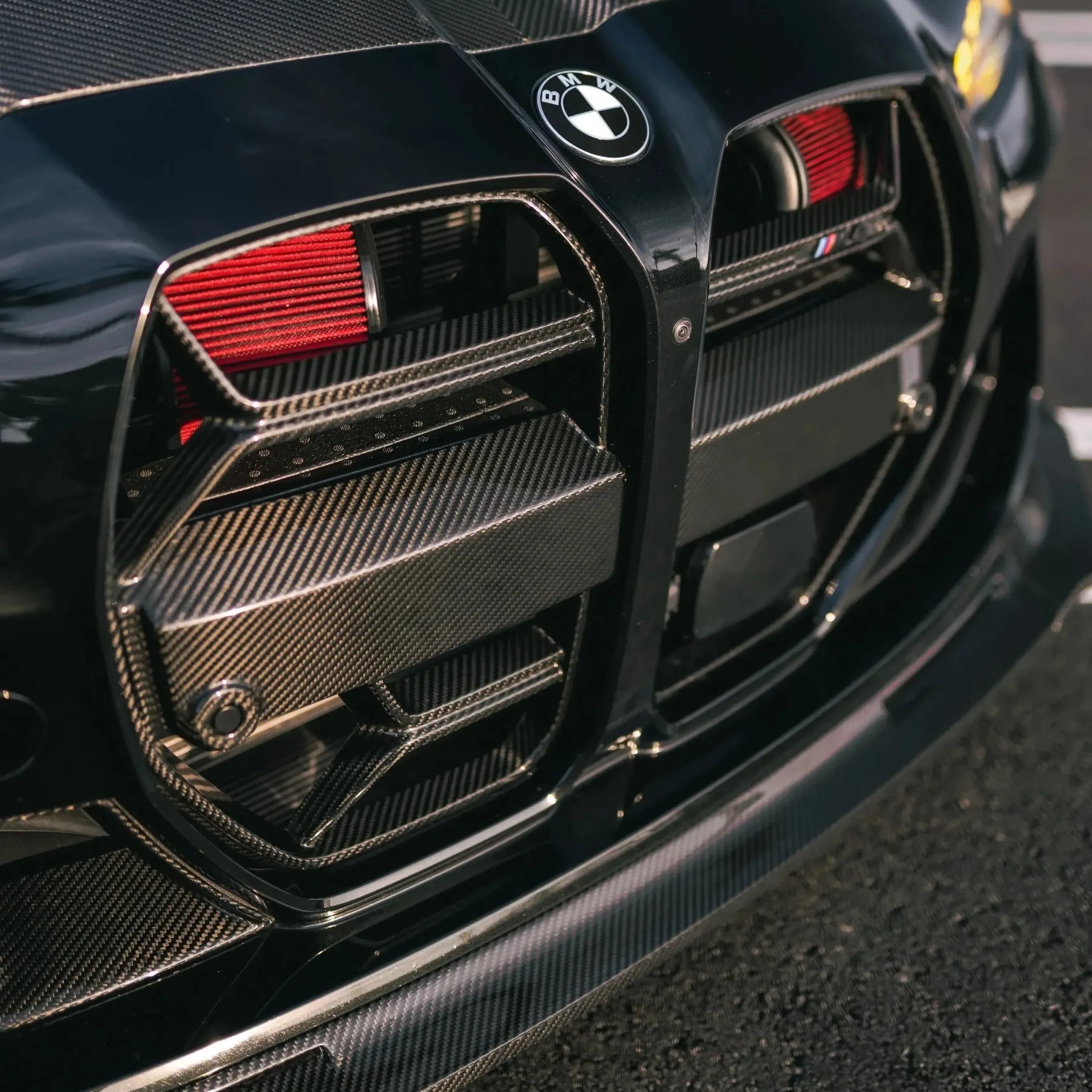

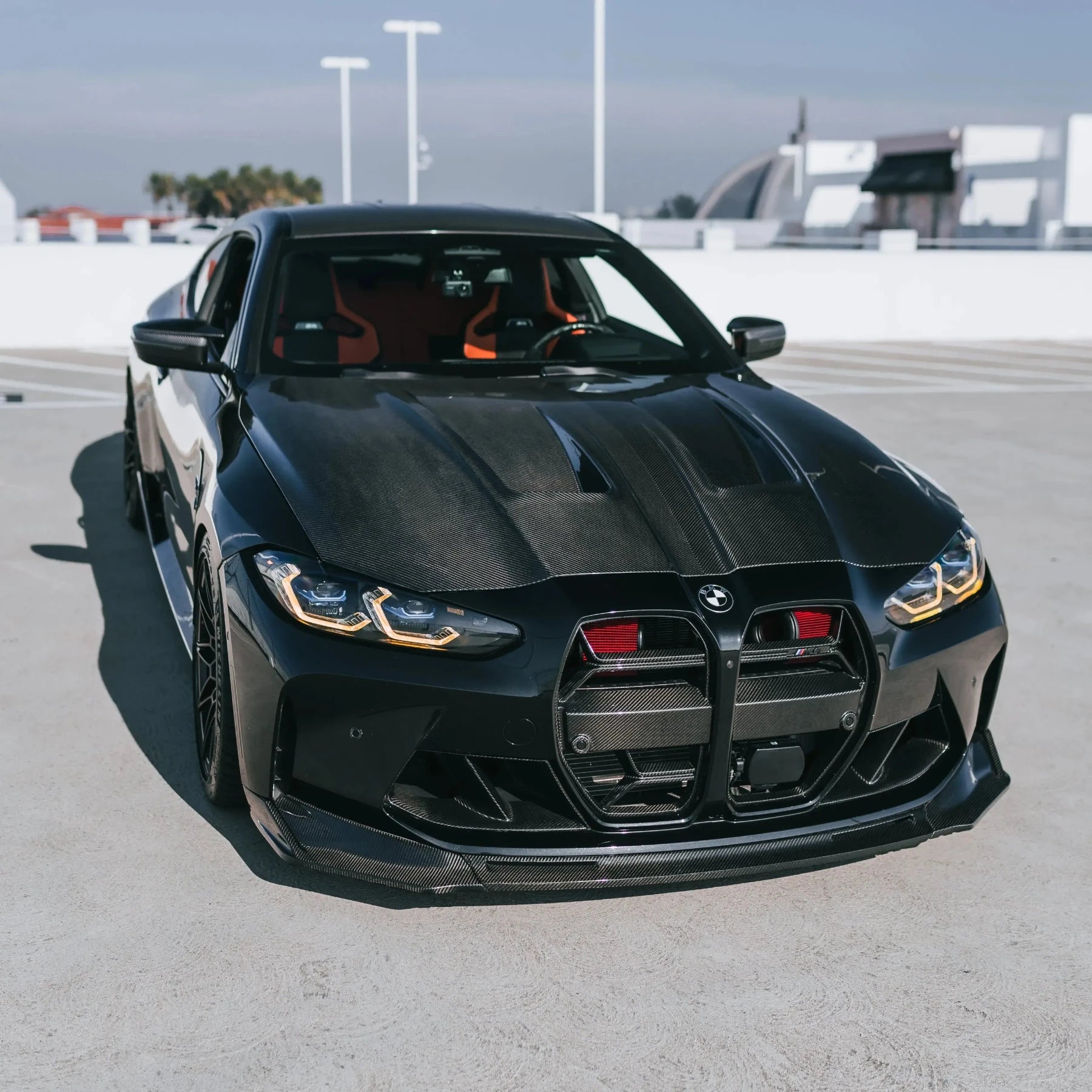

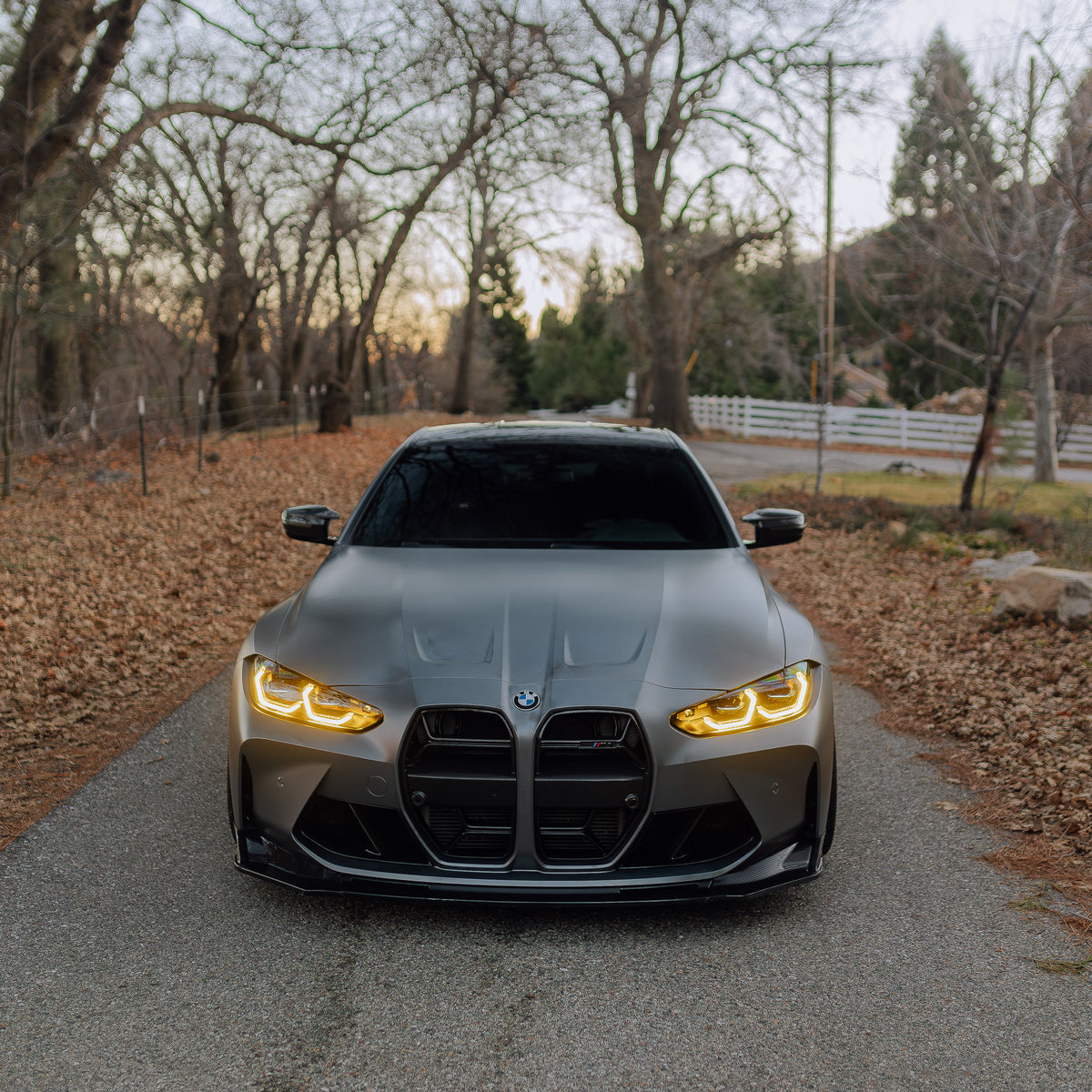

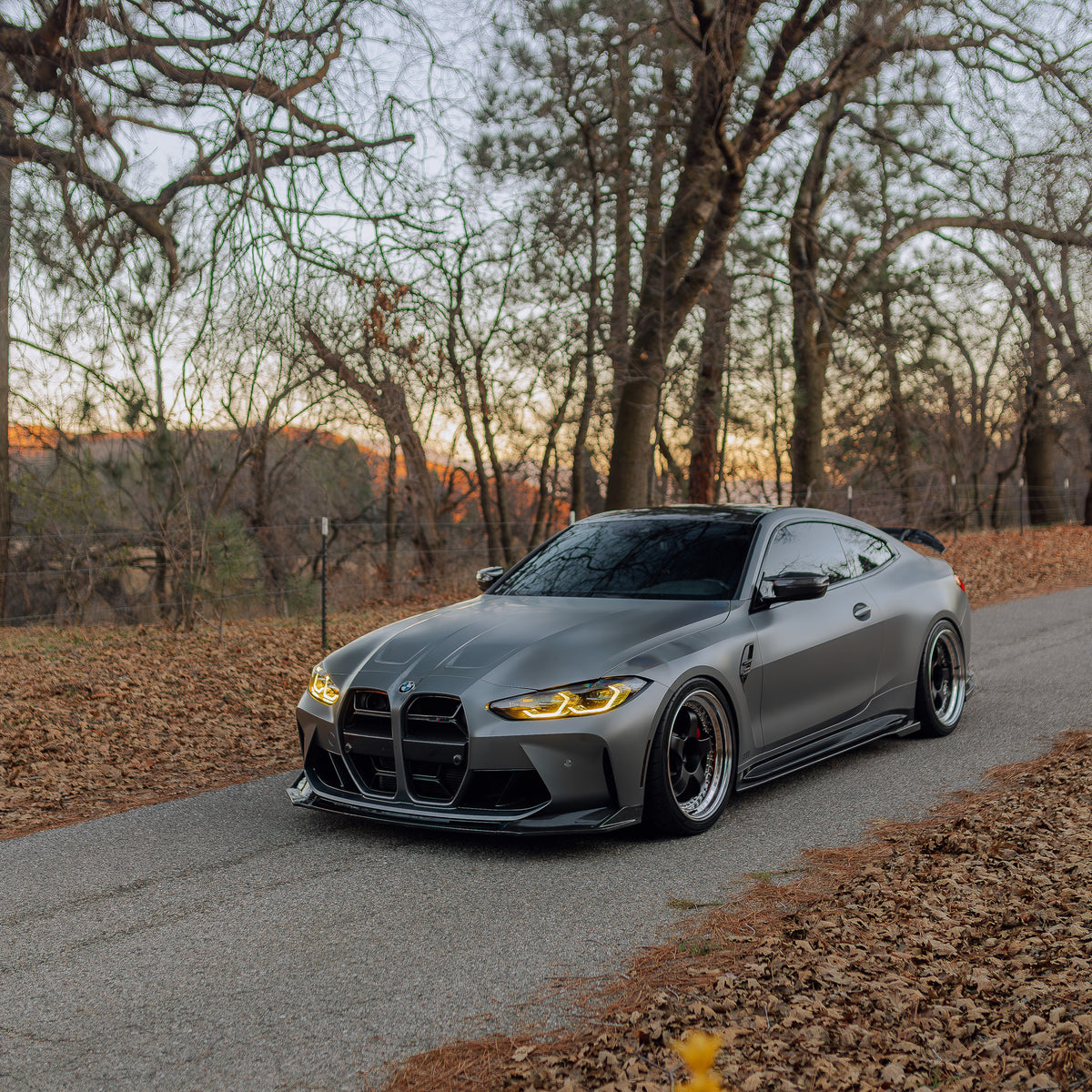

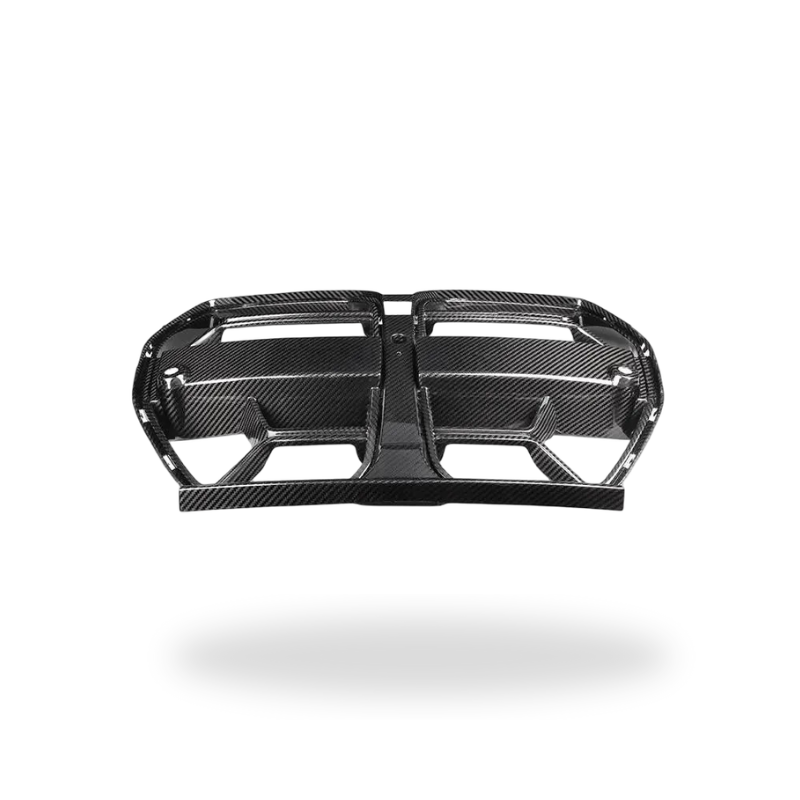

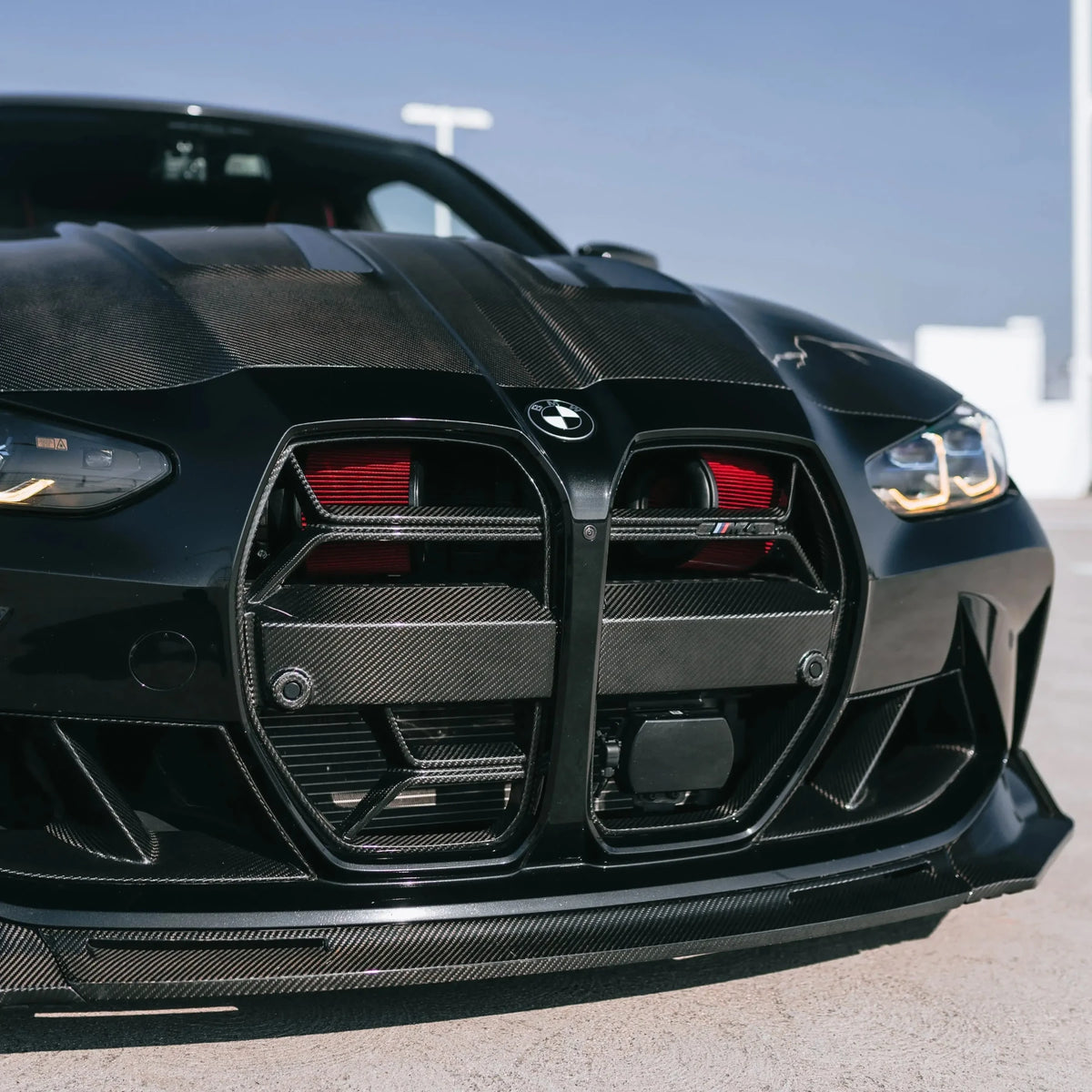

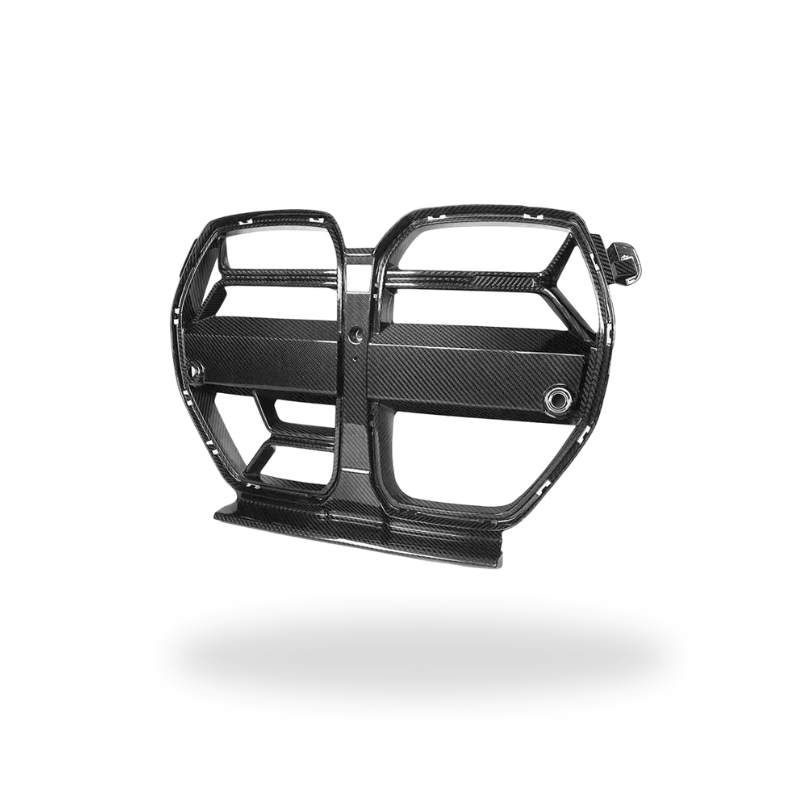

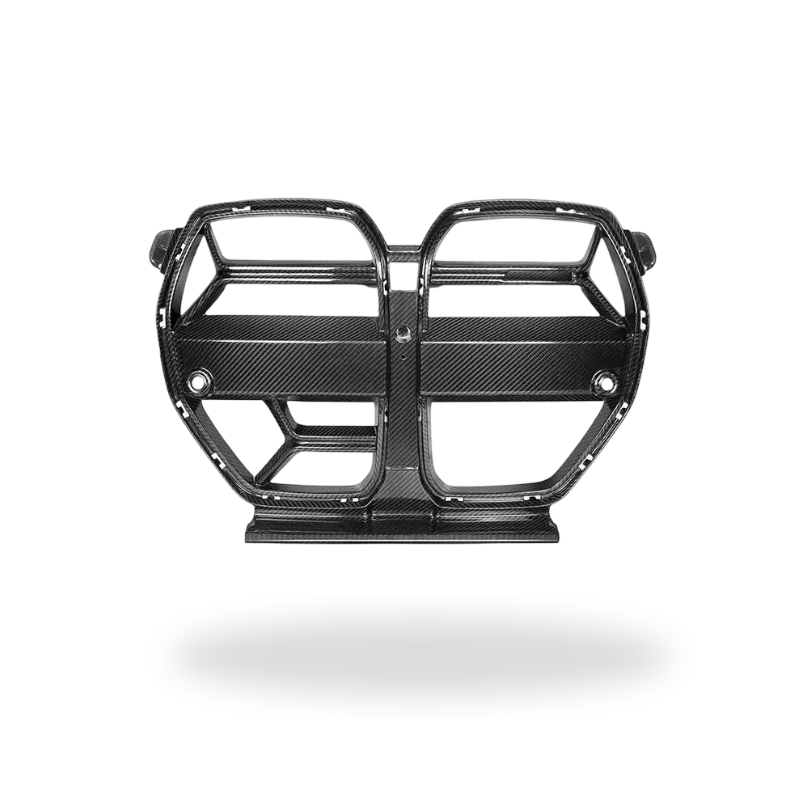

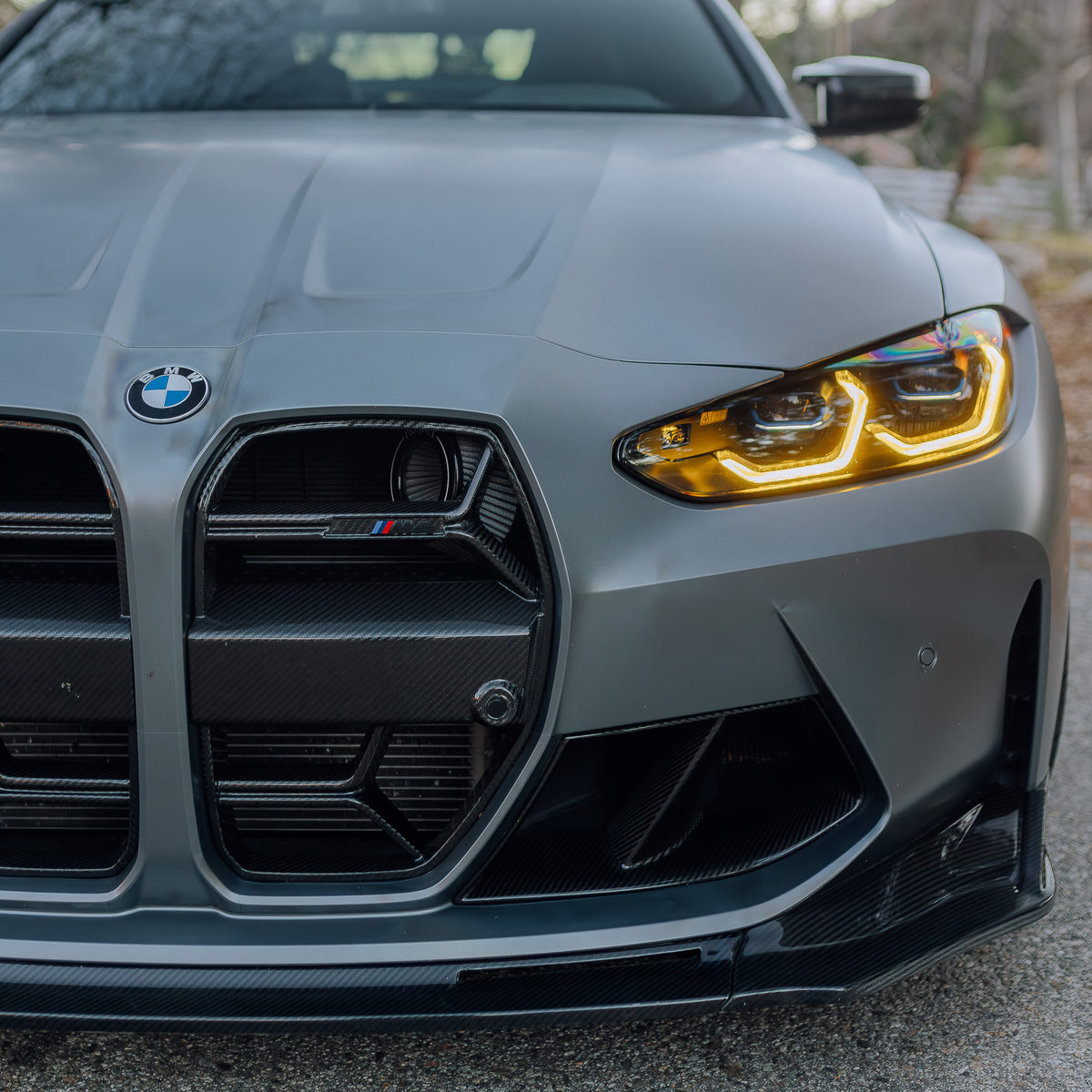

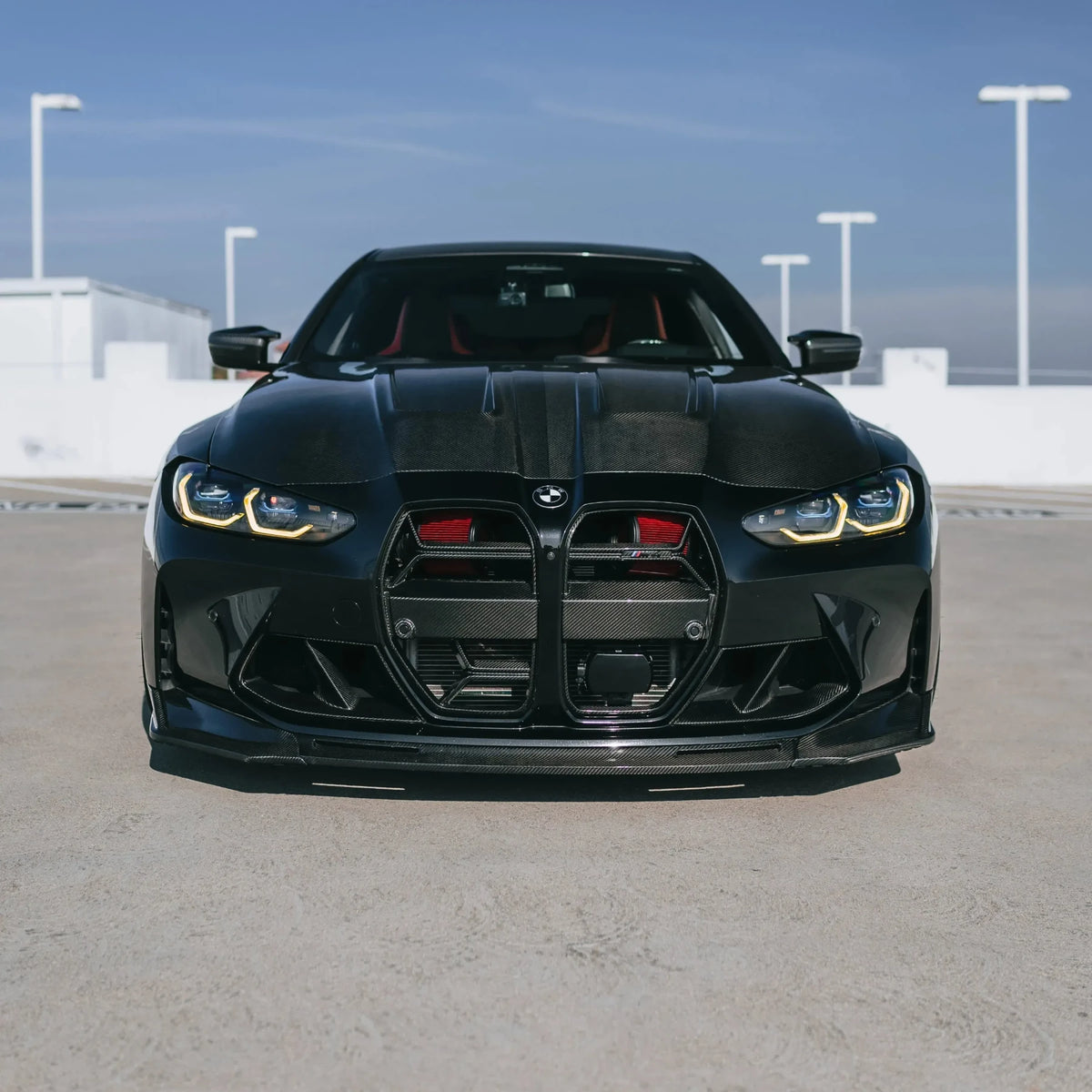

CSL Style Carbon Fiber Front Grilles - BMW G80 M3 & G82/G83 M4
Hand-laid 2x2 twill carbon fiber grilles inspired by BMW Motorsport's M4 CSL architecture. Sealed in a UV protective gloss finish and engineered to bolt directly into your factory mounting points, with no cutting, no trimming, and no adapters.
• Genuine 2x2 twill weave carbon fiber, not a wrap or painted plastic
• CSL-inspired open mesh kidney design for maximum front-end aggressio
• Bolt-on install in 45–60 minutes, fully reversible
• OEM-precision fitment across G80 M3 & G82/G83 M4
Please enter your vehicle information before continuing.

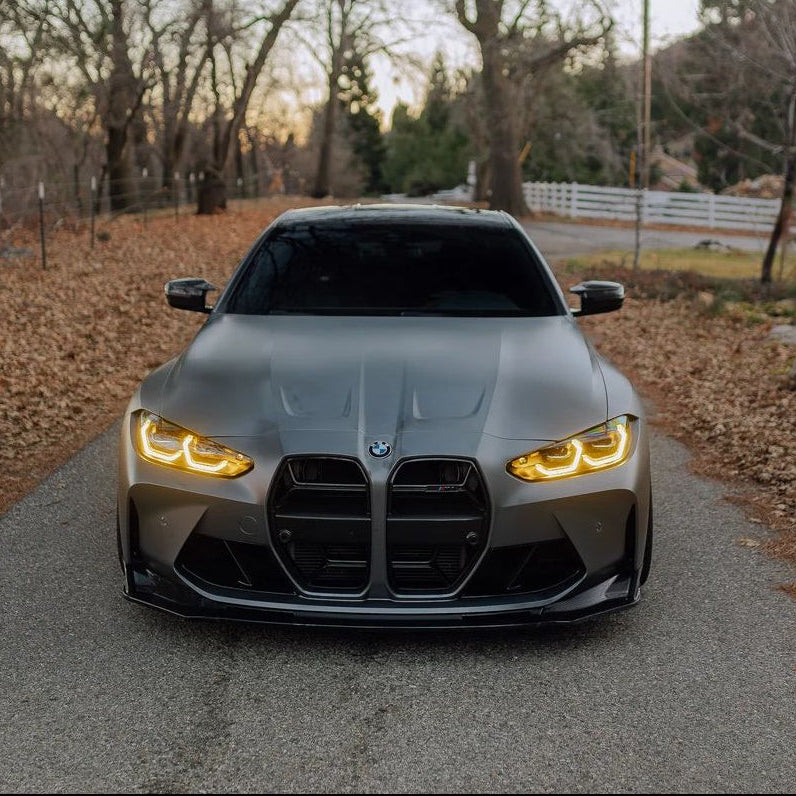

Choose Your Active Cruise Control Option
Find Your Perfect Fit
Select your BMW model and yearto instantly verify compatibility for your CSL Style Carbon Fiber Front Grilles.
| Year Range | Model | Chassis | ACC Notes |
|---|---|---|---|
| 2021–Present | M4 Convertible | G83 | Direct OEM grille replacement, ACC compatible |
| 2021–Present | M4 Coupe | G82 | Direct OEM grille replacement, ACC compatible |
| 2021–Present | M3 Sedan | G80 | Direct OEM grille replacement, ACC compatible |
Don't see your model?
If your vehicle isn't listed, contact our support team for confirmation.
Contact Support
What Happens During Installation?
Follow these seven straightforward steps to install your CSL Style Carbon Fiber Front Grilles with confidence. No guesswork, just a clear, guided process.
Preparation & Safety
Park on a flat surface, set the parking brake, and raise the front end. Disconnect the negative battery terminal (optional but recommended when working near sensors).
Step 1
Step 2
Remove Bumper Under-Tray & Wheel-Arch Screws
Under-tray: Use a T25 Torx to remove the 8 perimeter screws and set the panel aside. Wheel-arches: Turn the wheels full lock, then remove three 8 mm screws on each inner fender that secure the bumper corners.
Remove Top Bumper Bolts & Release Clips
Pop the hood. With a T30 Torx, remove the six upper carrier bolts. Gently release the two plastic alignment clips by pulling upward.
Step 3
Step 4
Disconnect Cameras & Sensors
Unplug the front camera (if equipped) and ACC sensor harness. Press the tab and pull—never yank the wires.
Remove the Bumper
Have a helper support one corner. Pull the bumper straight forward; the side spats will pop off the guide pins. Lay the bumper face-down on a blanket.
Step 5
Step 6
Remove the OEM Grille
Locate the 14 small plastic tabs around the grille perimeter. Using a trim tool or flat-head, depress each tab while pushing the grille outward. Transfer the camera bracket and ACC badge to the CSL grille using the same screws.
Install the Bimmer Plug Carbon Fiber Grille
Align the new grille with the bumper opening, starting with the lower tabs. Press firmly until each tab clicks into place. Double-check all clips are fully seated.
Step 7
Step 8
Re-install Bumper
Slide the bumper back onto the guide pins under the headlights. Reconnect all wiring harnesses. Reinstall the six upper bolts, wheel-arch screws, and under-tray panel. Torque to OEM spec (6 Nm for Torx screws, 10 Nm for carrier bolts).
Final Checks
Lower the car and run a quick sensor calibration if iDrive prompts you. Visually inspect panel gaps and ensure the grille sits flush.
Step 9
Installation Protocol
Prefer it done for you?
DIY installation takes 45–60 minutes using basic hand tools. For guaranteed fitment and the best results, we recommend having your upgrade installed by a certified professional.
DIY installation takes 45–60 minutes using basic hand tools. For guaranteed fitment and the best results, we recommend having your upgrade installed by a certified professional.
Certified Installers. Guaranteed Work
Backed byQuality
You're not just buying premium BMW parts. You're investing in expert support, trusted quality, and a seamless upgrade experience from purchase to installation.
GUARANTEED FITMENT
Every grille is engineered and verified for a precise, OEM-level fit on your G80 M3 or G82/G83 M4.
PROTECTED PURCHASE
Your payment and personal information are fully secured with encrypted checkout.
100% AUTHENTIC GUARANTEE
Every grille is genuine hand-laid carbon fiber, sourced directly from Bimmer Plug, no imitations ever.
Engineered for Performance. Built to Last.
Every specification reflects our commitment to OEM-grade engineering, from hand-laid carbon fiber to precision chassis fitment. Each grille delivers a motorsport-inspired upgrade over factory parts.
Every specification reflects our commitment to OEM-grade engineering, from hand-laid carbon fiber to precision chassis fitment. Each grille delivers a motorsport-inspired upgrade over factory parts.
OEM Grade
Real Carbon Construction

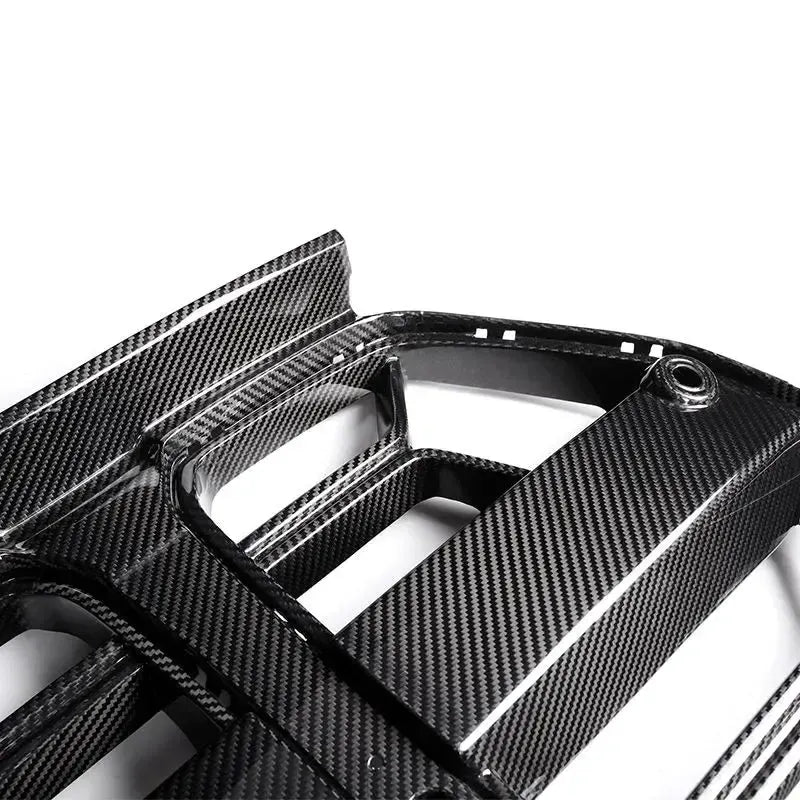

Hand-laid 2x2 twill carbon fiber offers authentic texture and real weight savings, with every grille inspected for weave and finish quality.
CSL Design
CSL Open Mesh Design
Modeled directly on the M4 CSL's open mesh kidney signature, adding instant visual aggression and track credibility to your BMW.
Bolt On
OEM Bolt-On Fitment
Engineered to factory tolerances for the G80 M3, G82 M4, and G83 M4, clipping into OEM mounting points without modification.
Weather Ready
UV-Protected Gloss Finish
A multi-layer UV-resistant clear coat protects the weave from fading, keeping its gloss through track days and daily commutes.
Material
Material Construction
Genuine 2x2 twill weave carbon fiber (not a wrap or painted plastic), sealed under a multi-layer UV-protective gloss clear coat.
Design
Design Philosophy
CSL-inspired open mesh kidney pattern, replacing the factory's standard closed M kidney mesh for a track-focused front-end identity.
Installation
Installation Process
Bolt-on installation in 45–60 minutes using basic hand tools — no coding required, no cutting or drilling, fully reversible to OEM.
Compatibility
Fitment Range

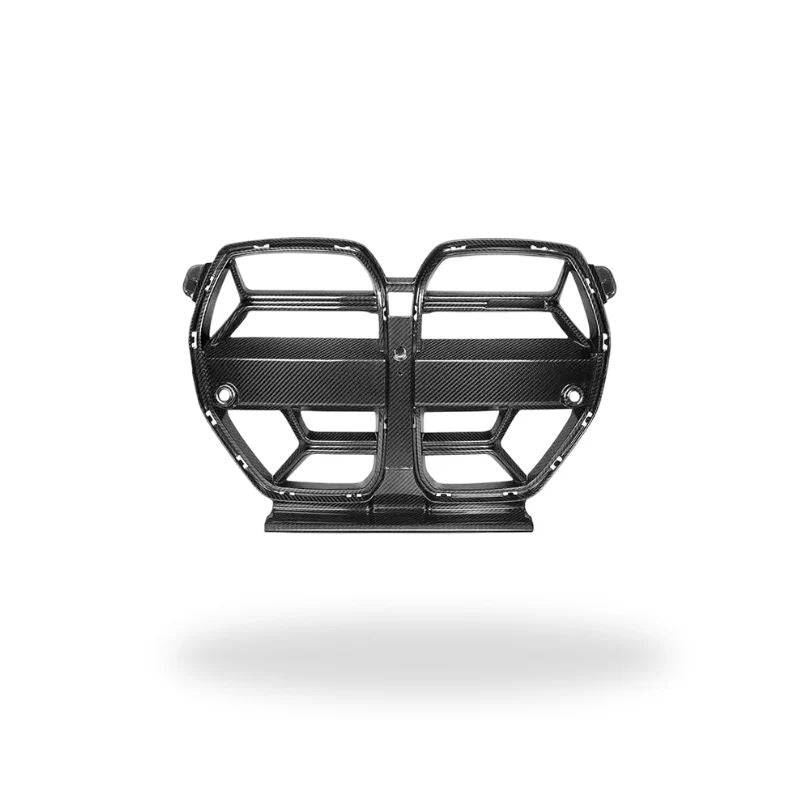

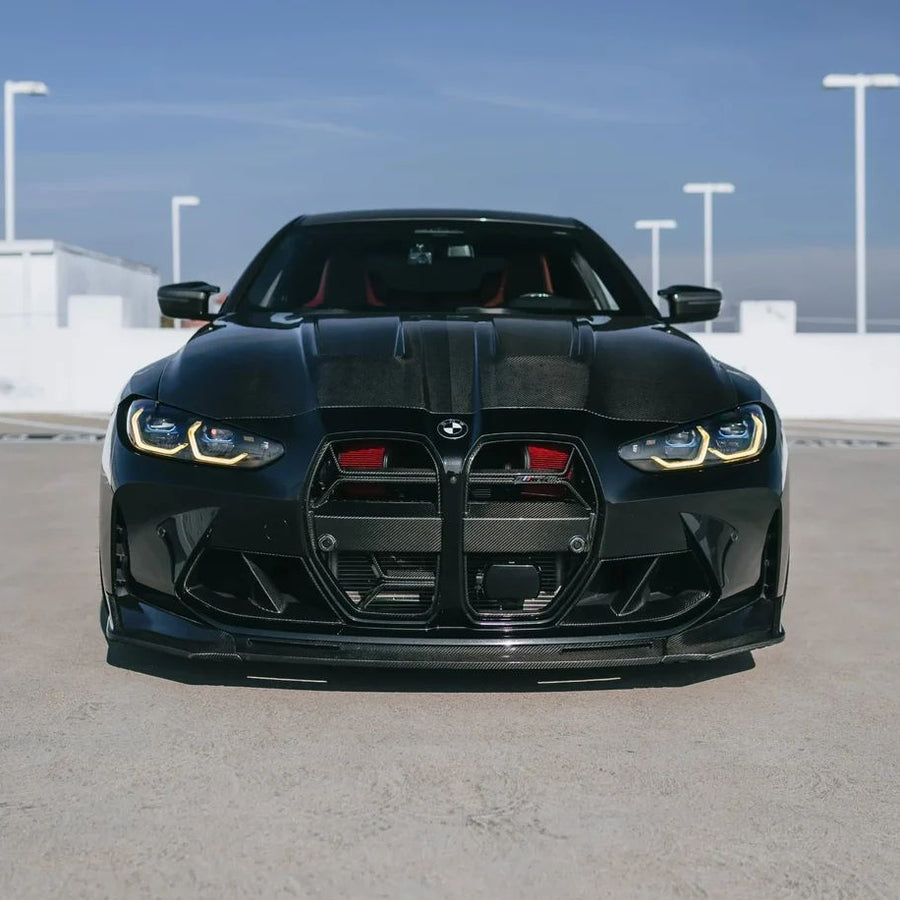

Direct OEM bolt-on fitment for G80 M3, G82 M4 Coupe, and G83 M4 Convertible (2021–present), available in both With ACC and Without ACC configurations.
