Designed and tested to fit your exact G80 M3 or G82/G83 M4.
Product Preview
Part Details & Configuration

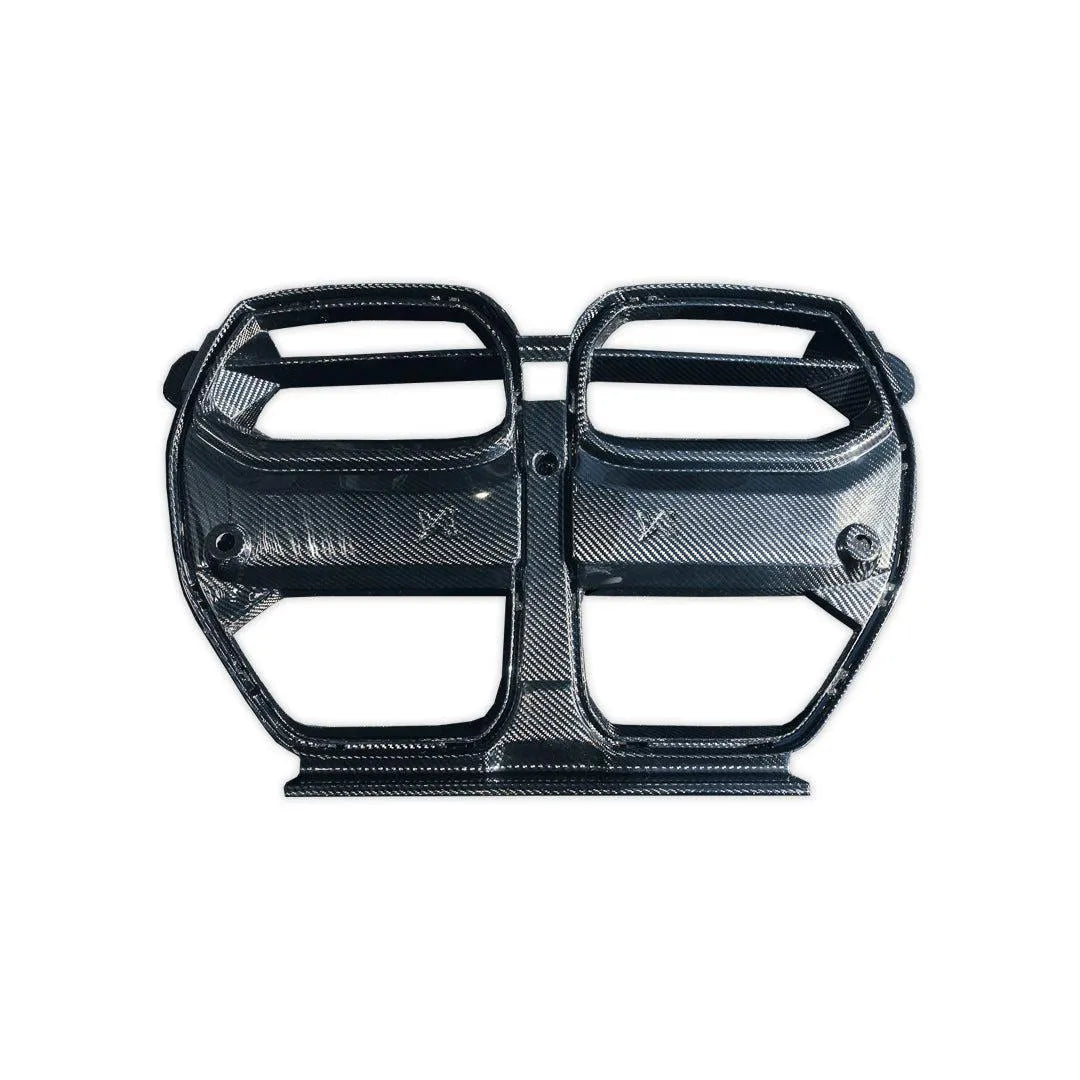

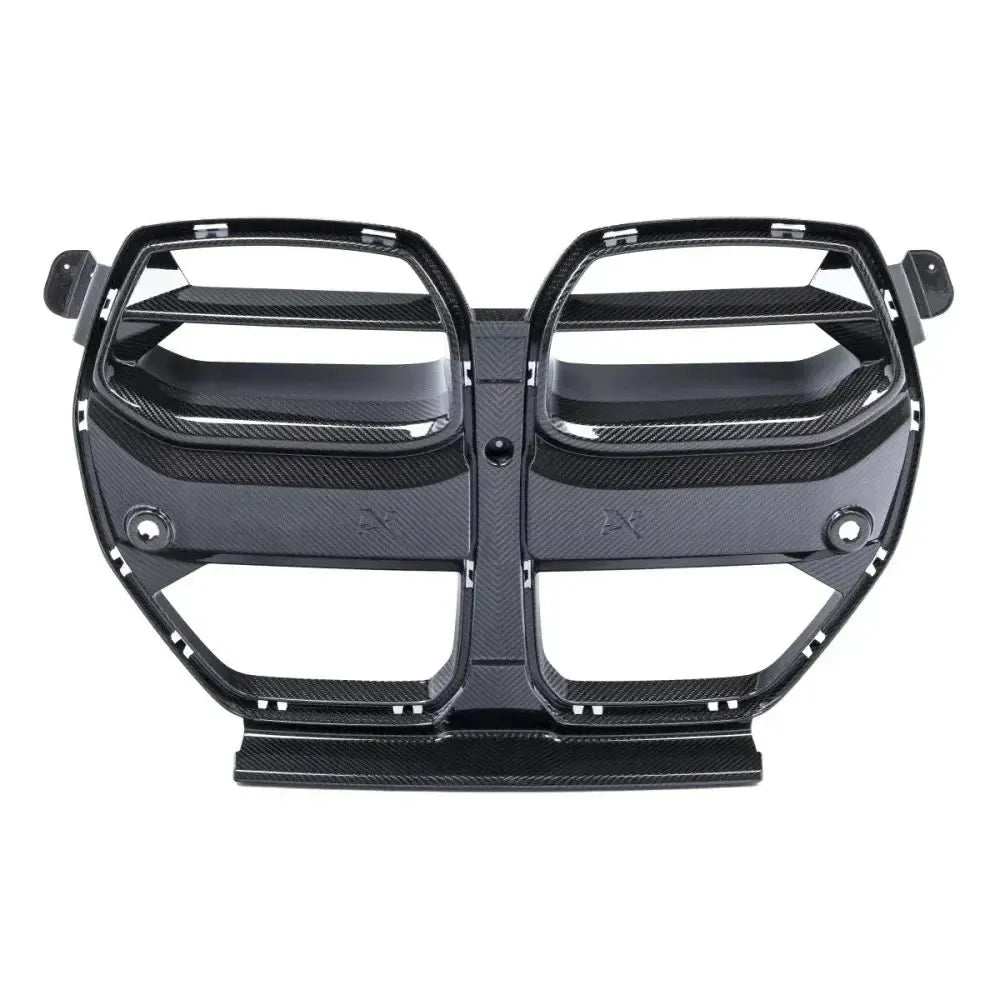

AN Style Carbon Fiber Front Grilles
BMW G80 M3 & G82/G83 M4

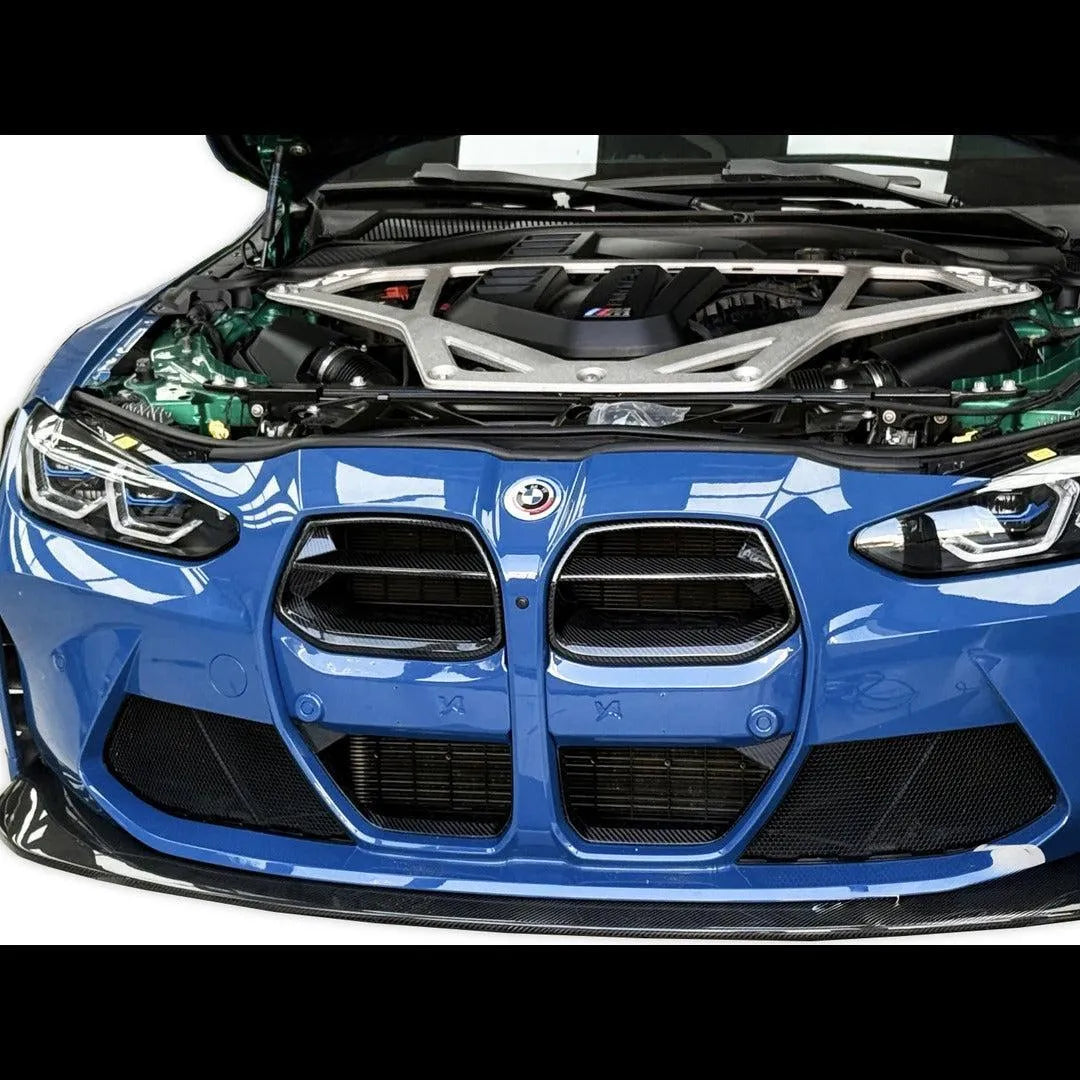

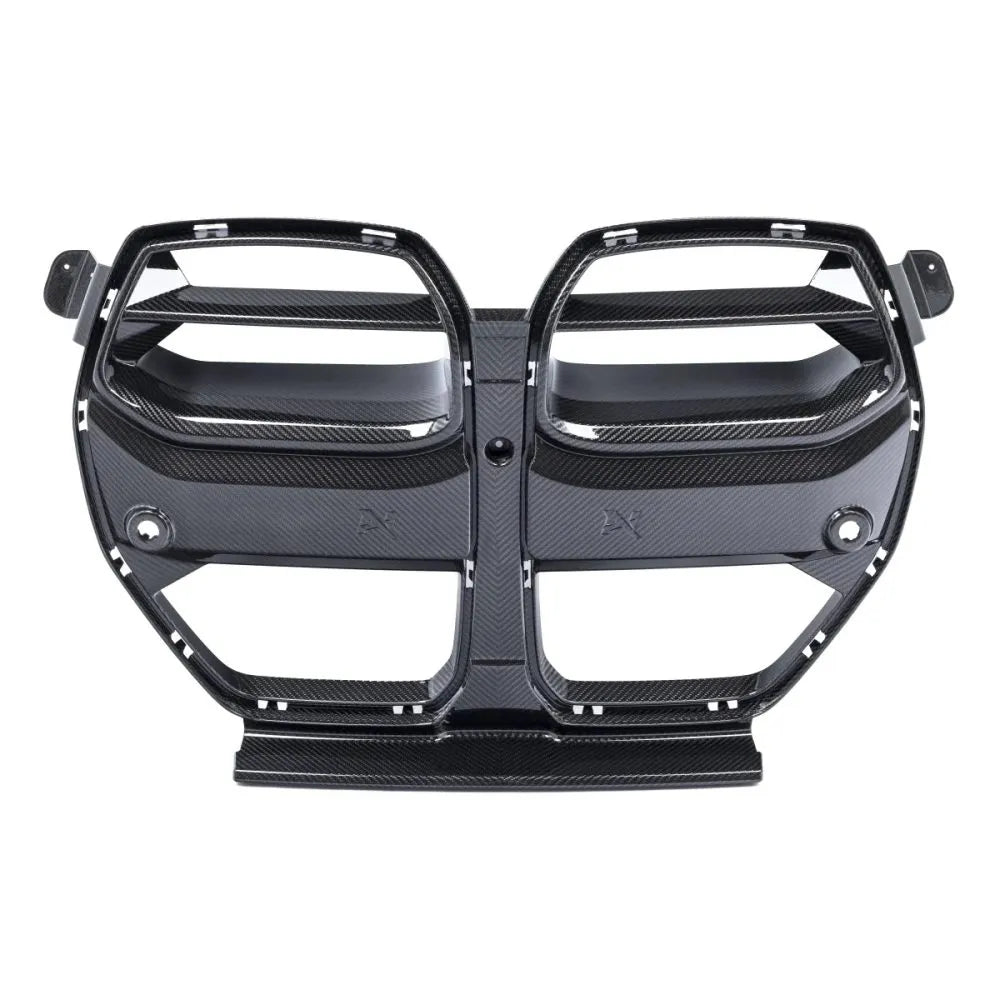

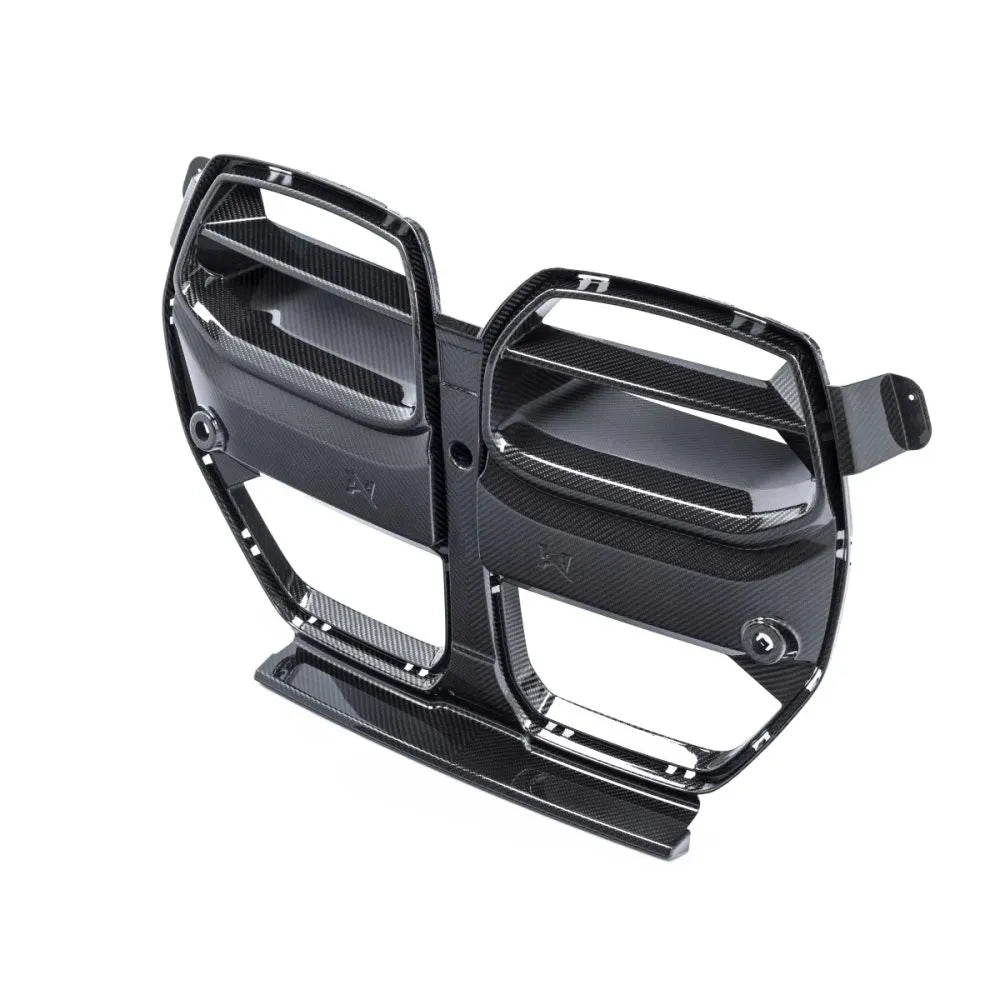

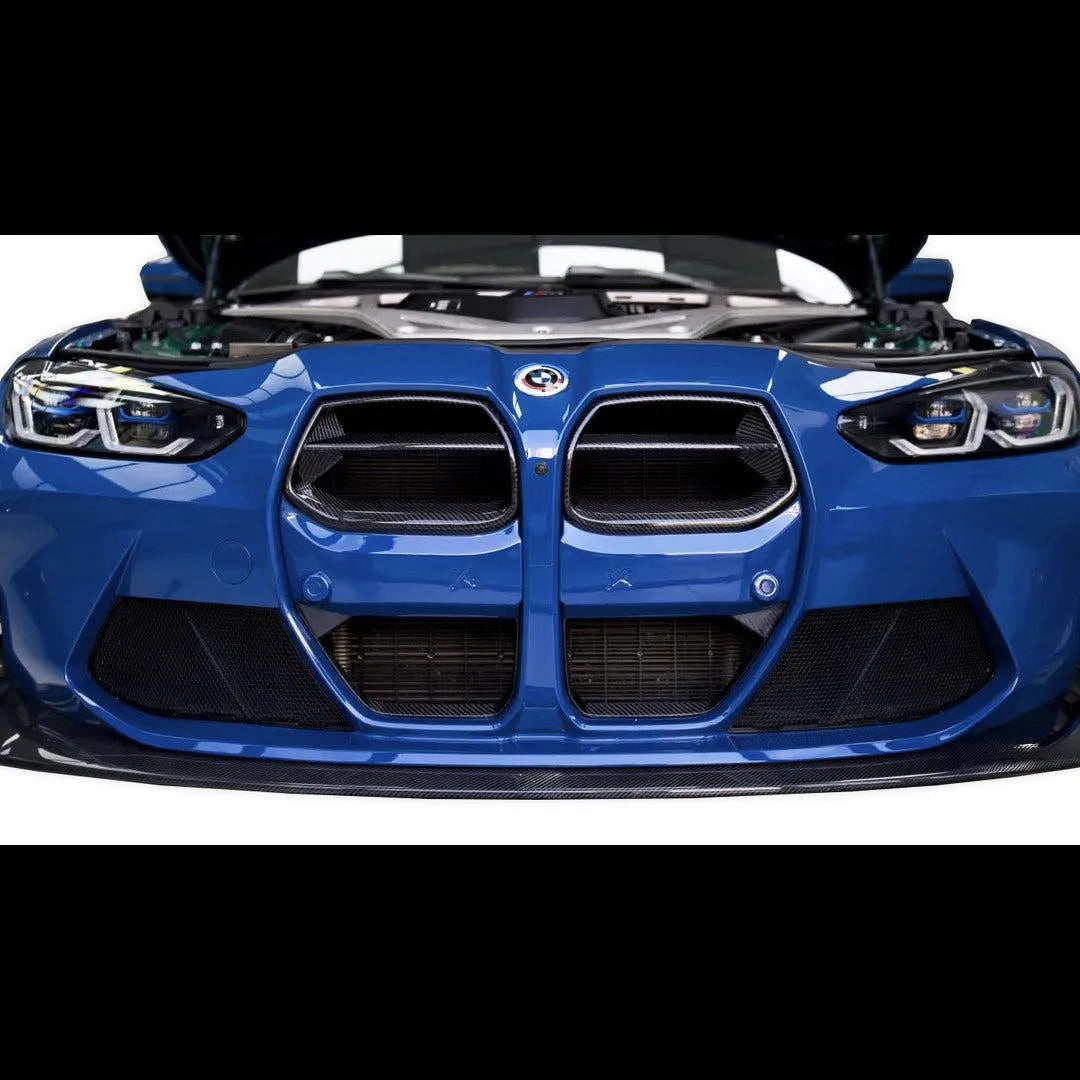

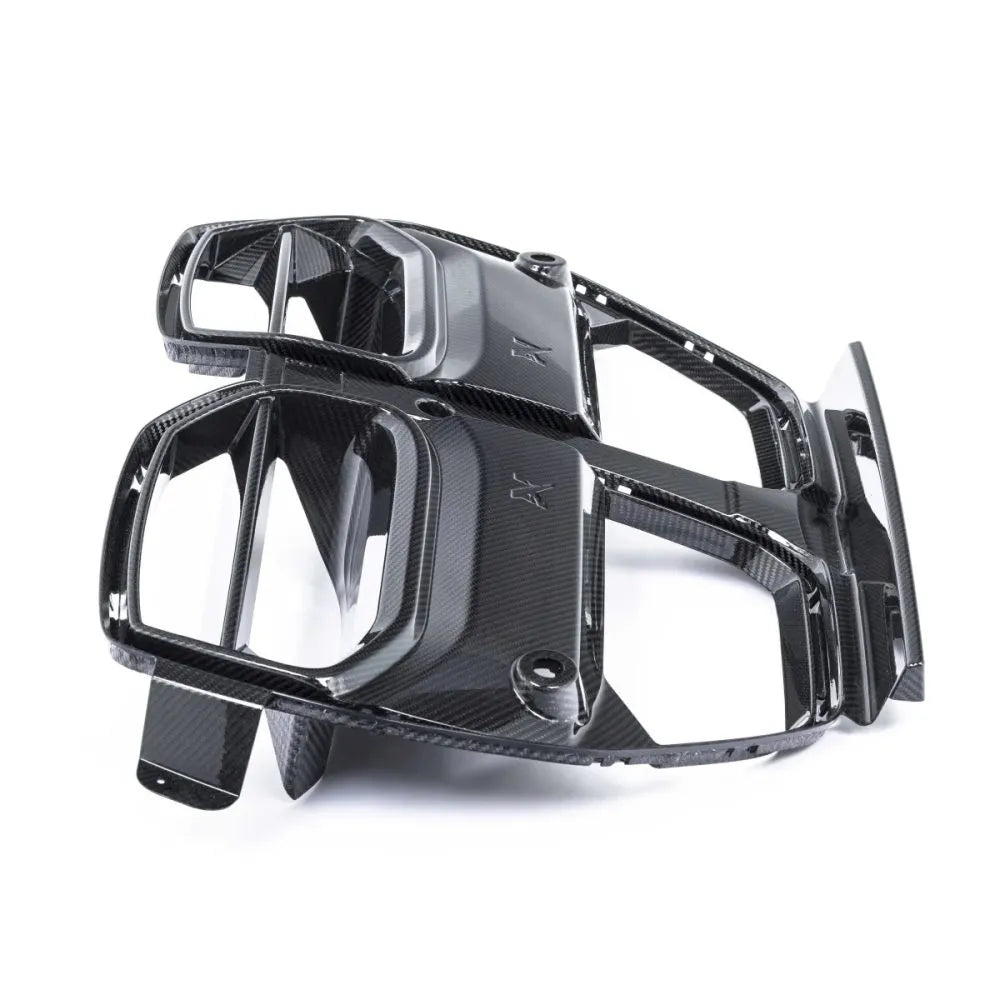

Enhance the front-end presence of your BMW G80 M3 & G82/G83 M4 with the AN Style Carbon Fiber Front Grilles by Bimmer Plug — a bold and lightweight upgrade inspired by motorsport styling. Crafted from high-quality dry carbon fiber, these grilles reduce weight and add an aggressive, high-performance look that sets your M car apart. Designed for a direct replacement of the factory grille with OEM-like fitment and no modifications required.
• Dry carbon fiber construction, lightweight and ultra-durable
• 2x2 carbon fiber weave, gloss UV-protectant clear coat to prevent fading and yellowing
• OEM fitment using factory mounting points, no modifications required
• Motorsport-inspired styling for a bolder, more aggressive front end
Please enter your vehicle information before continuing.
Find Your Perfect Fit
Select your BMW model and year to instantly verify compatibility for your AN Style Carbon Fiber Front Grilles.
| Year Range | Model | Chassis | ACC Notes |
|---|---|---|---|
| 2021–Present | M4 Convertible | G83 | Fits vehicles with and without ACC |
| 2021–Present | M4 Coupe | G82 | Fits vehicles with and without ACC |
| 2021–Present | M3 Sedan | G80 | Fits vehicles with and without ACC |
Don't see your model?
If your vehicle isn't listed, contact our support team for confirmation.
Contact Support
What Happens During Installation?
Your AN Style Carbon Fiber Front Grilles are designed as a direct, bolt-on replacement for the factory grille, using the existing OEM mounting points, with no cutting, drilling, or permanent modification required.

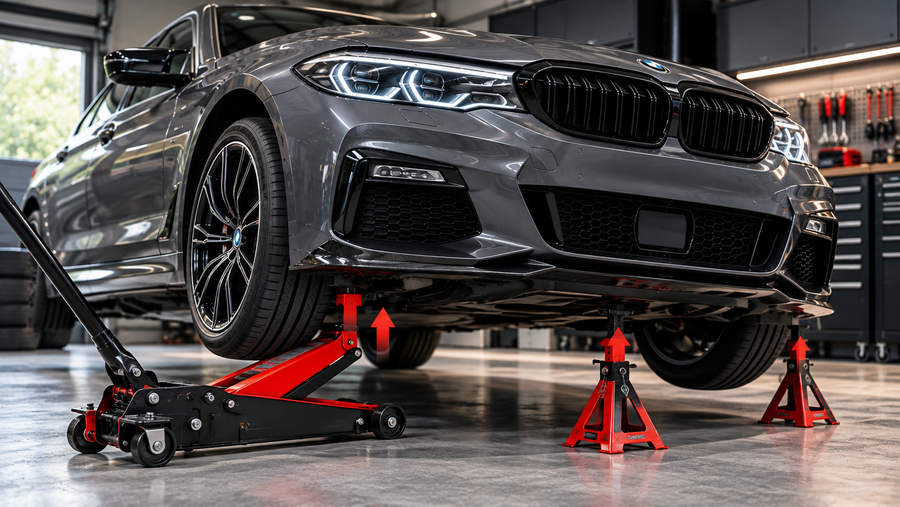

Preparation & Safety
Park on a flat surface, set the parking brake, and raise the front end. Disconnect the negative battery terminal (optional but recommended when working near sensors).
Step 1
Step 2

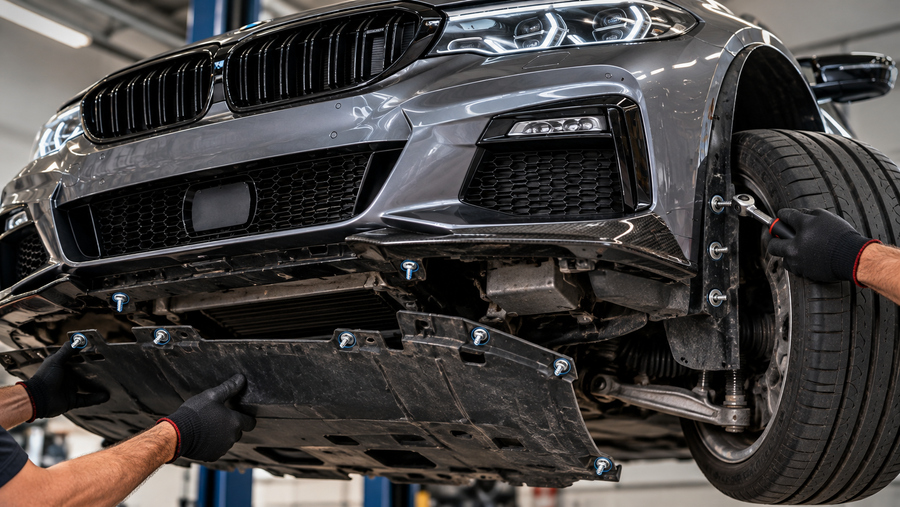

Remove Bumper Under-Tray & Wheel-Arch Screws
Under-tray: Use a T25 Torx to remove the 8 perimeter screws and set the panel aside. Wheel-arches: Turn the wheels full lock, then remove three 8 mm screws on each inner fender that secure the bumper corners.

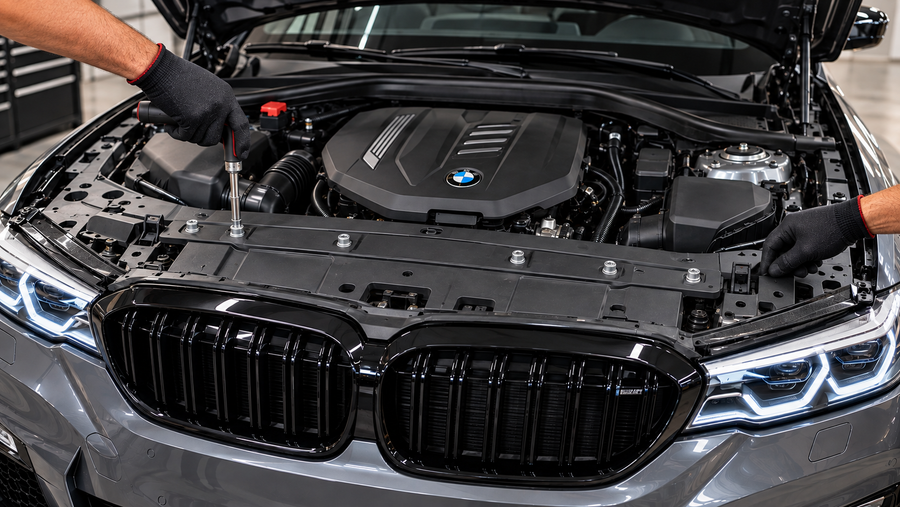

Remove Top Bumper Bolts & Release Clips
Pop the hood. With a T30 Torx, remove the six upper carrier bolts. Gently release the two plastic alignment clips by pulling upward.
Step 3
Step 4

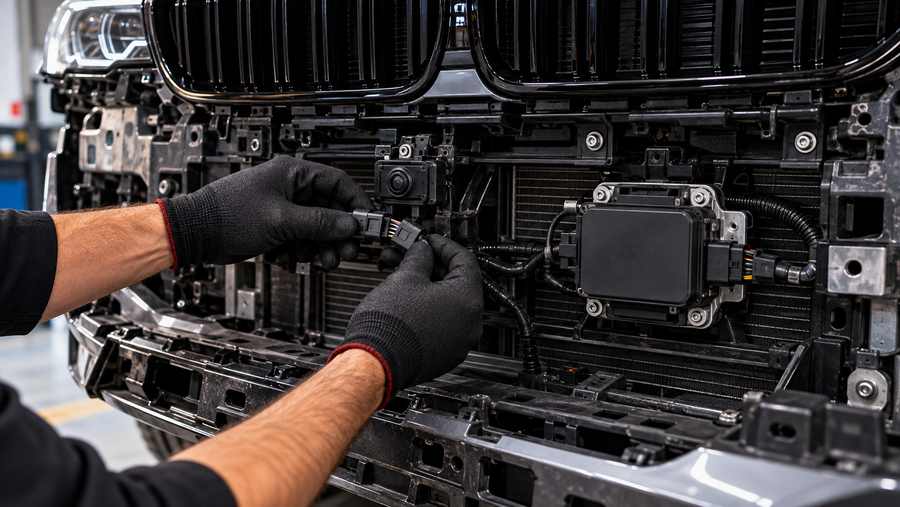

Disconnect Cameras & Sensors
Unplug the front camera (if equipped) and ACC sensor harness. Press the tab and pull—never yank the wires.

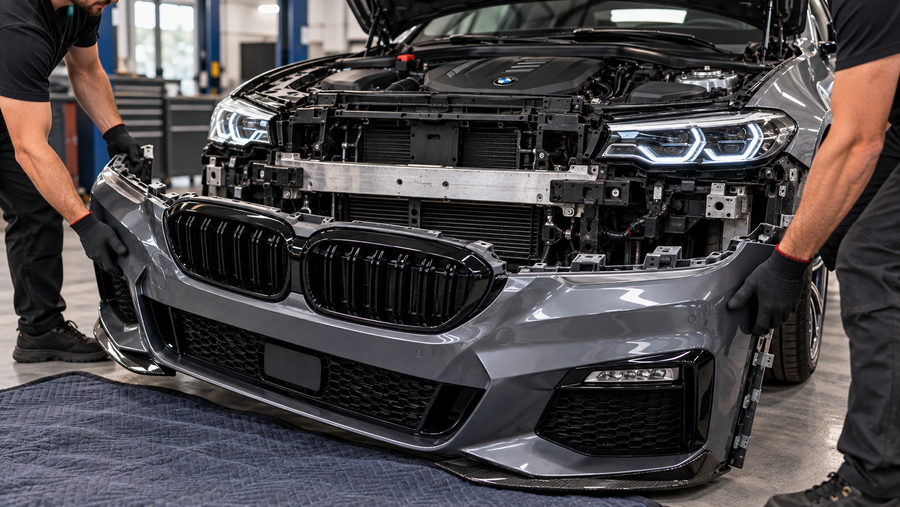

Remove the Bumper
Have a helper support one corner. Pull the bumper straight forward; the side spats will pop off the guide pins. Lay the bumper face-down on a blanket.
Step 5
Step 6

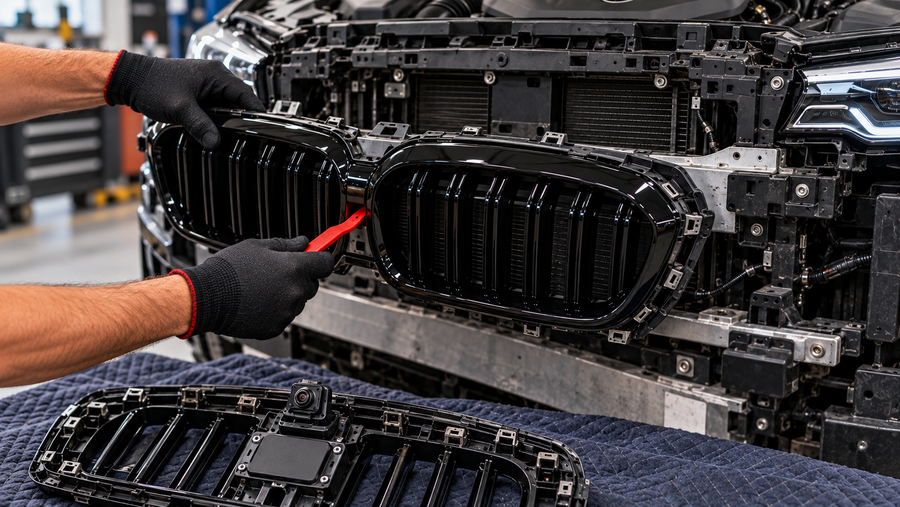

Remove the OEM Grille
Locate the 14 small plastic tabs around the grille perimeter. Using a trim tool or flat-head, depress each tab while pushing the grille outward. Transfer the camera bracket and ACC badge to the CSL grille using the same screws.

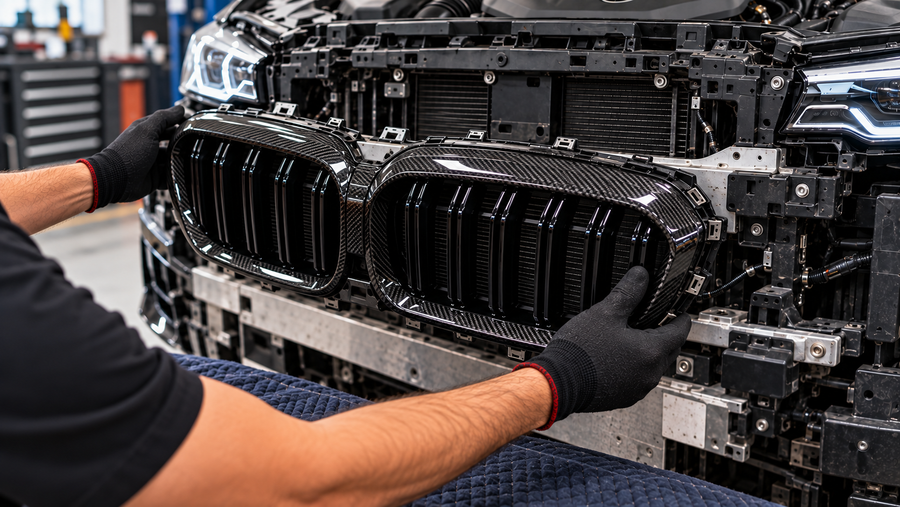

Install the Bimmer Plug Carbon Fiber Grille
Align the new grille with the bumper opening, starting with the lower tabs. Press firmly until each tab clicks into place. Double-check all clips are fully seated.
Step 7
Step 8

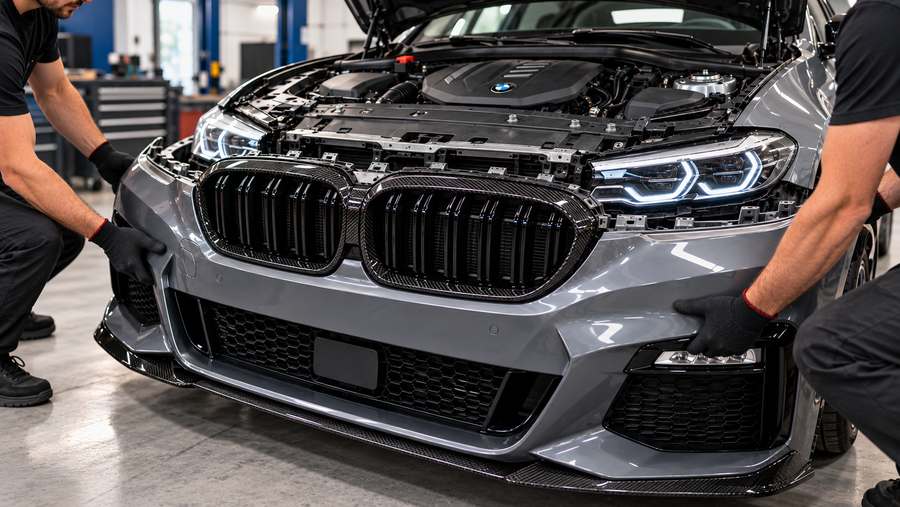

Re-install Bumper
Slide the bumper back onto the guide pins under the headlights. Reconnect all wiring harnesses. Reinstall the six upper bolts, wheel-arch screws, and under-tray panel. Torque to OEM spec (6 Nm for Torx screws, 10 Nm for carrier bolts).

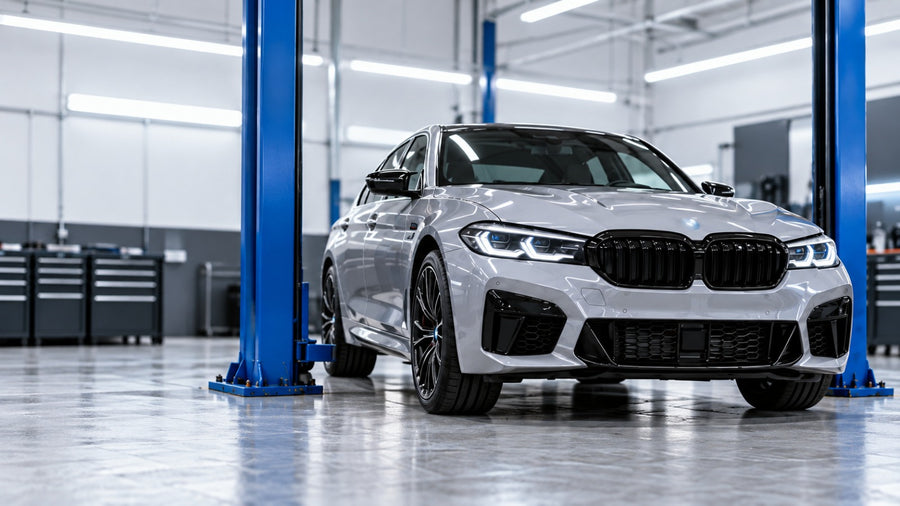

Final Checks
Lower the car and run a quick sensor calibration if iDrive prompts you. Visually inspect panel gaps and ensure the grille sits flush.
Step 9
Installation Protocol
Prefer it done for you?
For guaranteed fitment and the best results, we recommend having your upgrade installed by a certified professional.
For guaranteed fitment and the best results, we recommend having your upgrade installed by a certified professional.
Certified Installers. Guaranteed Work
Backed byQuality
You're not just buying premium BMW parts. You're investing in expert support, trusted quality, and a seamless upgrade experience from purchase to installation.

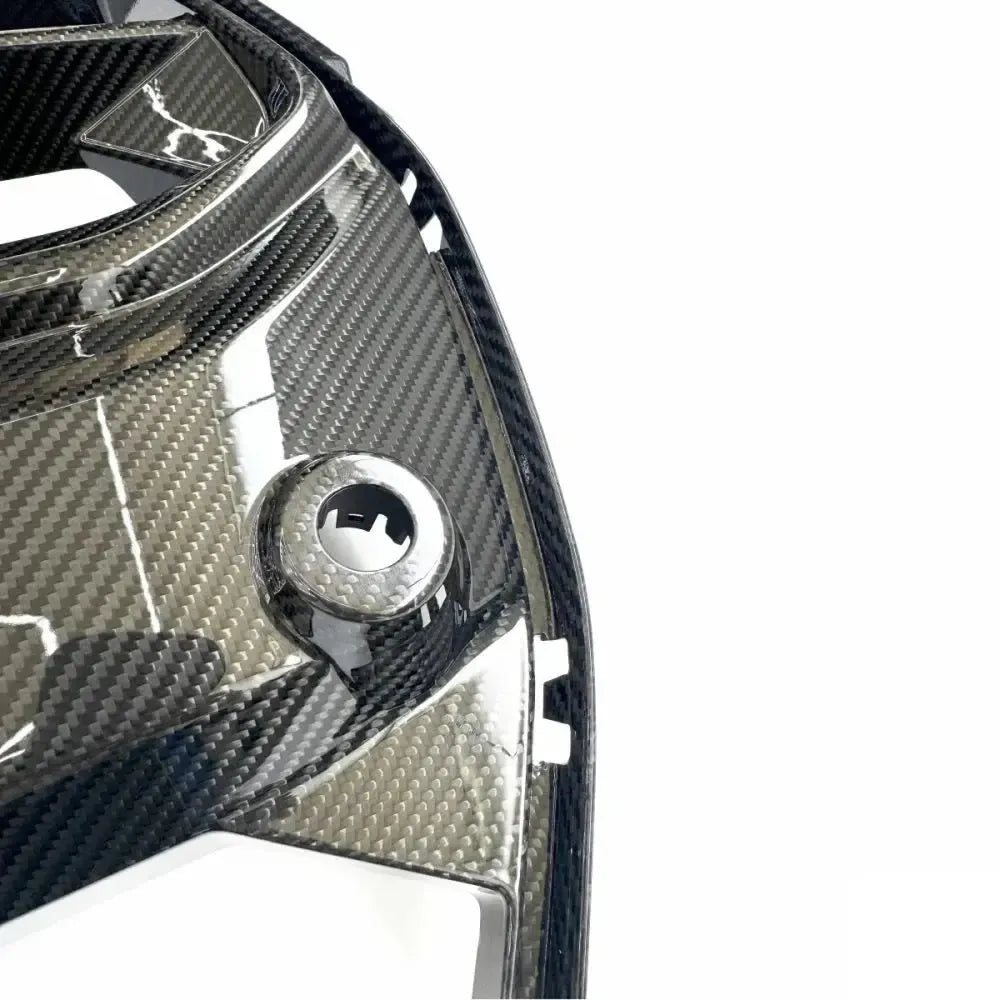

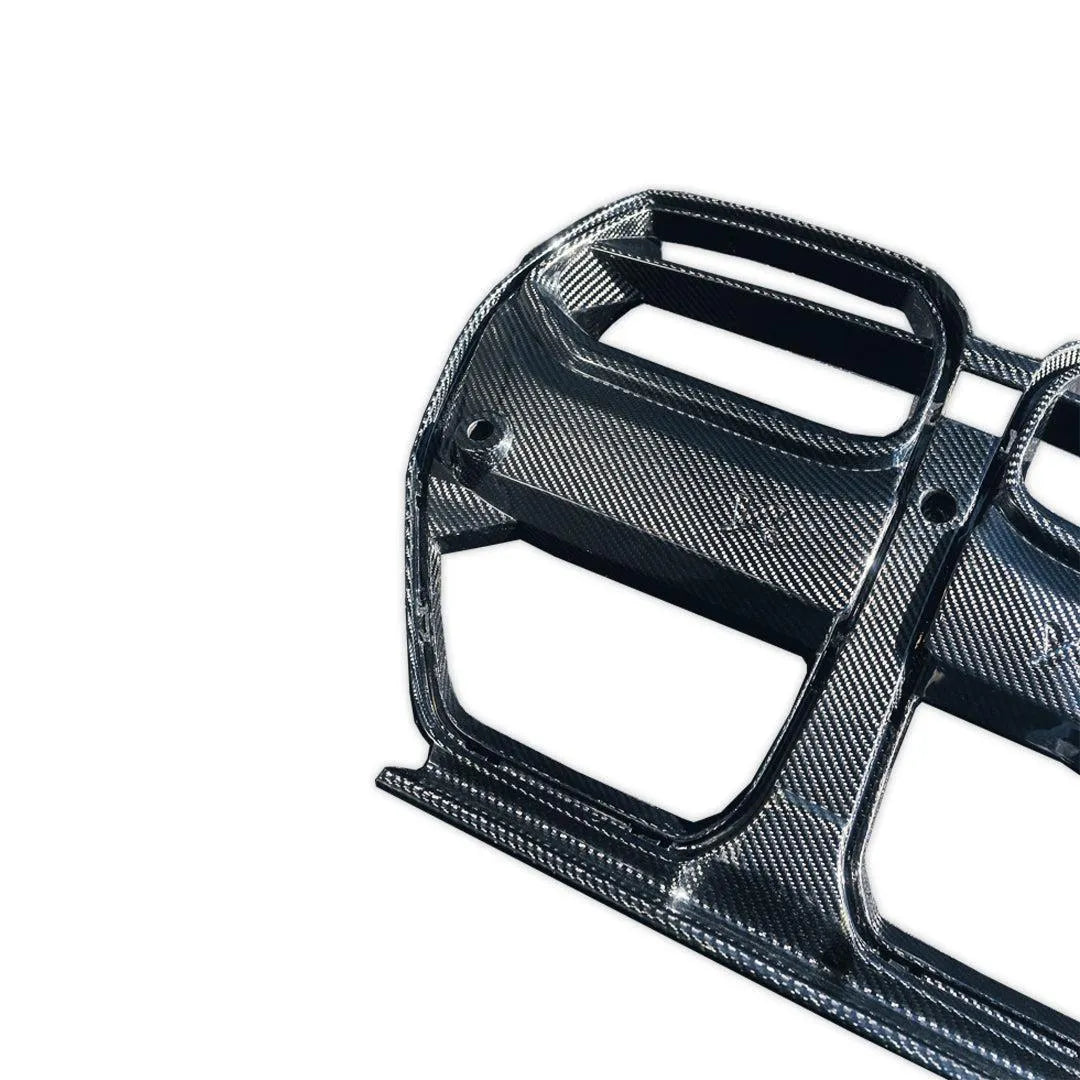

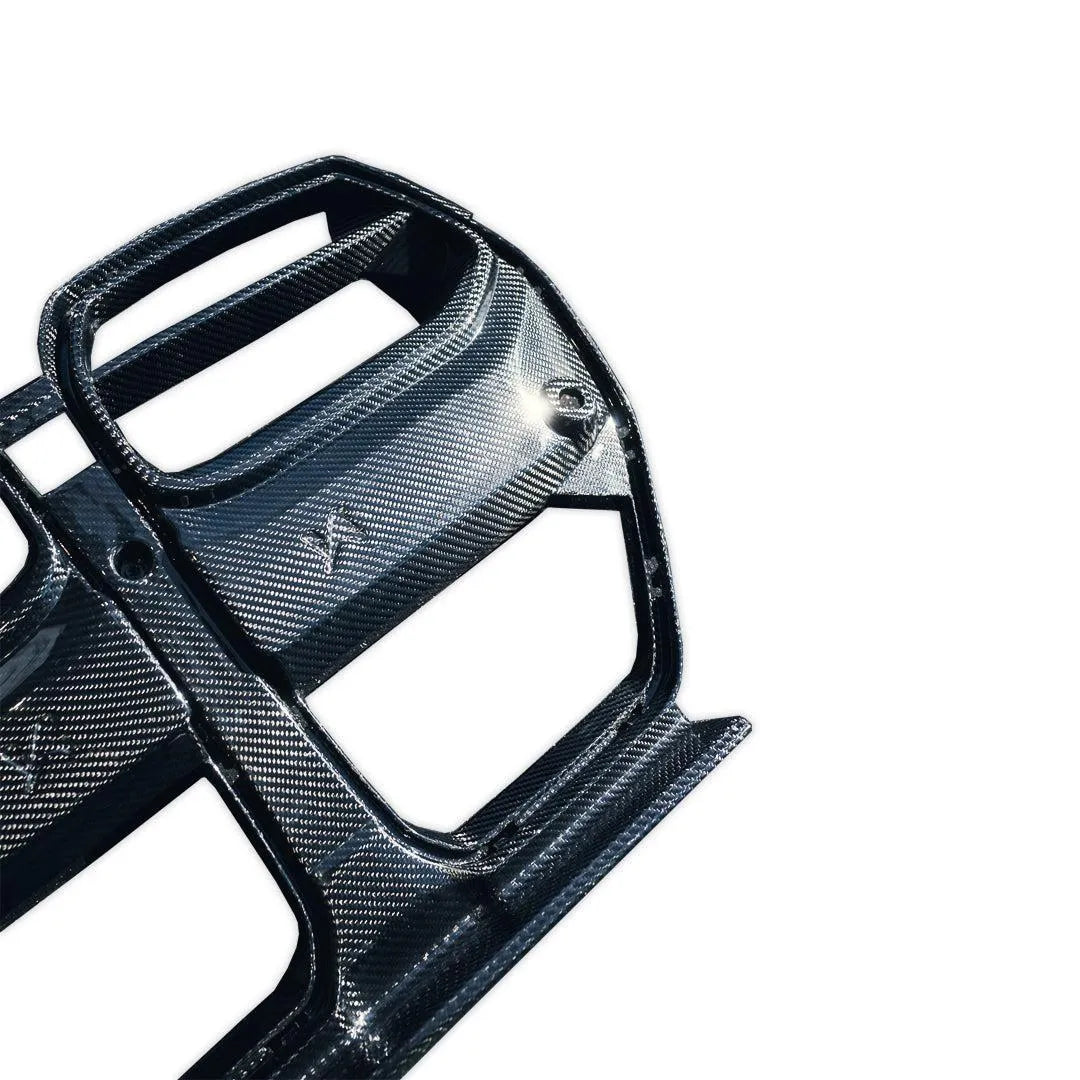

DRY CARBON FIBER WITH 2X2 WEAVE
Genuine dry carbon fiber construction, not a wrap or overlay.
UV PROTECTANT CLEAR COAT
Gloss finish resists fading and yellowing over time.
24/7 CUSTOMER SUPPORT
Manufacturer's Warranty and round-the-clock technical assistance.
Engineered for Performance. Built to Last.
Every specification reflects our commitment to OEM-grade engineering, from dry carbon fiber construction to precision chassis fitment. Each grille delivers a motorsport-inspired upgrade over factory parts.
Every specification reflects our commitment to OEM-grade engineering, from dry carbon fiber construction to precision chassis fitment. Each grille delivers a motorsport-inspired upgrade over factory parts.
Dry Carbon
Dry Carbon Fiber Construction
Lightweight and ultra-durable dry carbon fiber layup that improves both performance and aesthetics over the factory grille.
2x2 Weave
2x2 Weave Finish
Finished with a gloss UV-protectant clear coat that prevents fading and yellowing, keeping the carbon weave looking sharp for years.
OEM Fitment
Seamless OEM Fitment
Designed for seamless installation using the existing factory mounting points, requiring absolutely no cutting, drilling, or any modification whatsoever here.
Motorsport Look
Motorsport-Inspired Front End
Bold, lightweight design inspired directly by motorsport styling that gives your M car a noticeably more aggressive, high-performance front-end look.
Material
Material Construction
High-quality dry carbon fiber with a visible 2x2 weave pattern, sealed under a gloss UV-protectant clear coat finish overall today.
Compatibility
Fitment Range
Direct fit for 2021 to present G80 M3, G82 M4, and G83 M4 Convertible, with and without Active Cruise Control.
Installation
Installation Process
Direct replacement using existing factory mounting points with no permanent modification, professional installation recommended for perfect alignment and secure mounting.
Warranty
Coverage
Backed by Bimmer Plug's manufacturer warranty and 24/7 customer support for any fitment or installation questions you might ever have.
